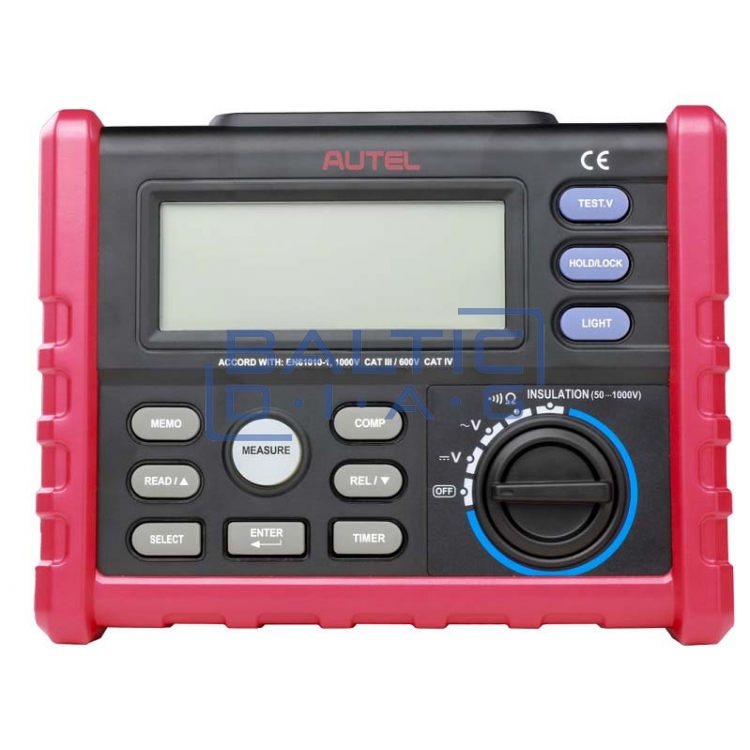

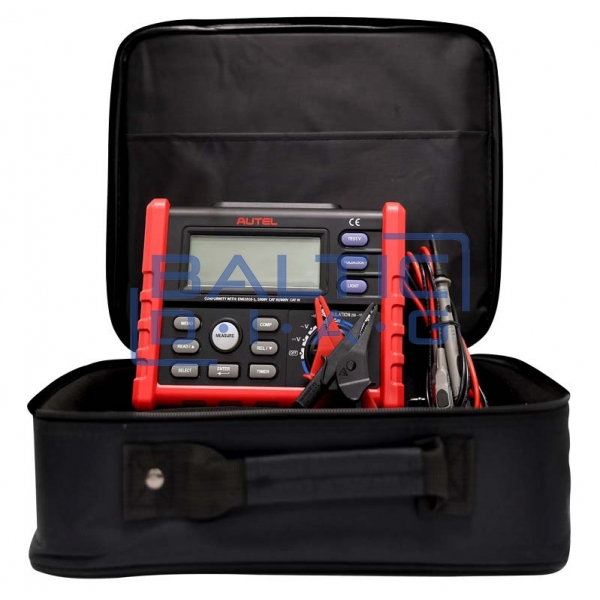

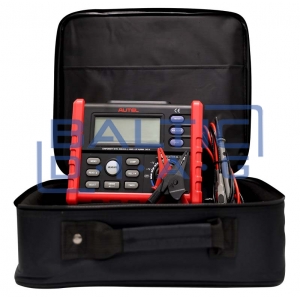

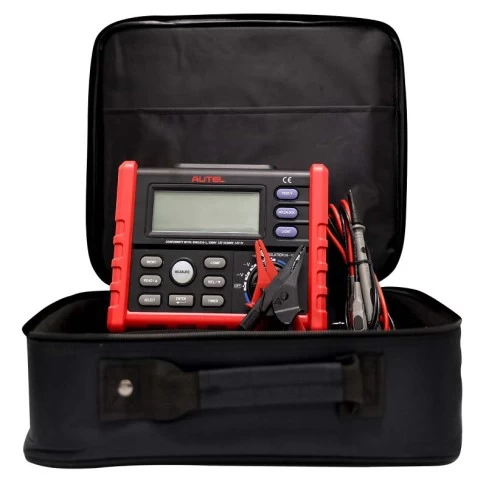

MaxiEV ITS100 insulation resistance measuring device for electric car battery batteries

MaxiEV ITS100 insulation resistance measuring device for electric car battery batteries

MaxiEV ITS100 is an advanced EV insulation resistance meter designed for accurate and reliable diagnosis and maintenance of electric vehicle systems. This essential device allows technicians to measure high DC voltages up to 1000 V and various system components. This reading of various parameters is extremely important in order to find out defects such as insulation damage, wear or contamination. These factors can have a very significant negative impact on electric vehicles, their safety and performance. The MaxiEV ALT100 is an indispensable device for any EV repair professional, providing the extreme precision and reliability required to maintain optimal vehicle performance.

Features:

• Ability to perform value measurements of high voltage systems and components
• Ability to perform resistance parameter measurements before putting components back into the car
• Helps to detect various malfunctions, damage to battery batteries or damaged, deteriorated insulating materials.
• Compatible with high DC voltage (50 V; 100 V; 250 V; 500 V or 1000 V) measurements. Allows you to measure various components or systems
• Provides easy-to-interpret visual data to enable informed and analyzed decisions during vehicle maintenance
• Three measurement modes: relative, real-time or continuous
• Conforms to IEC / EN 61010-1 1000 V CAT II; 600 V CAT IV requirements
• It is used for discharging capacitors, detecting insulation faults or short circuits, diagnostics
• Auto-off function to save battery power

Technical parameters:

• Voltage measurement: external voltage, battery voltage and low voltage measurement are supported
• Resistance ranges: 0.01 MΩ - 10.00 GΩ
• AC voltage measurement: 0.1V - 750V
• Internal resistance: 0.01 Ω - 200 Ω
• DC voltage measurement: 0.1V - 1000V
• Insulation measurement voltage: 50 V; 100 V; 250 V; 500 V; 1000 V
• Extended battery life: automatic power off function
• Visual data display: Polarization index (PI) / dielectric absorption coefficient (DAR) is displayed
