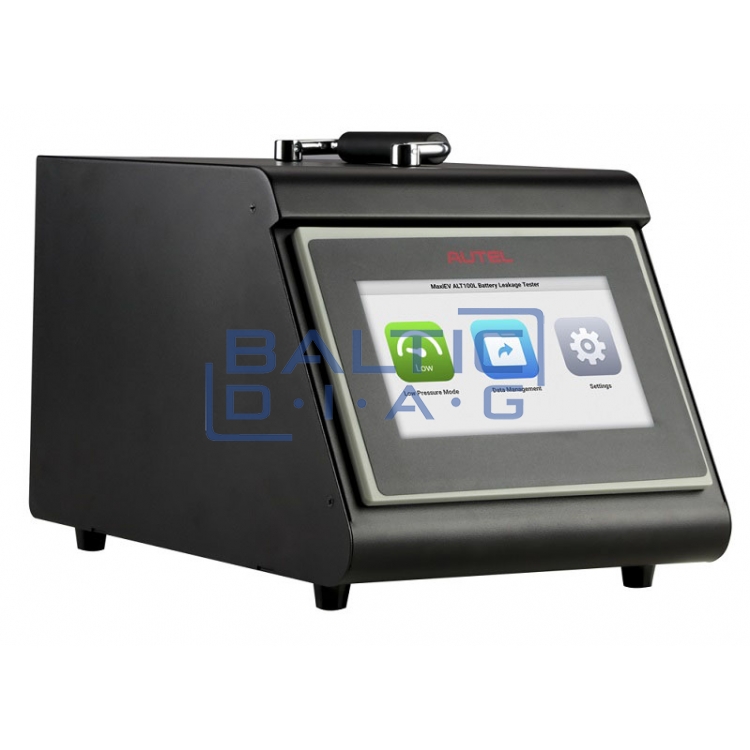

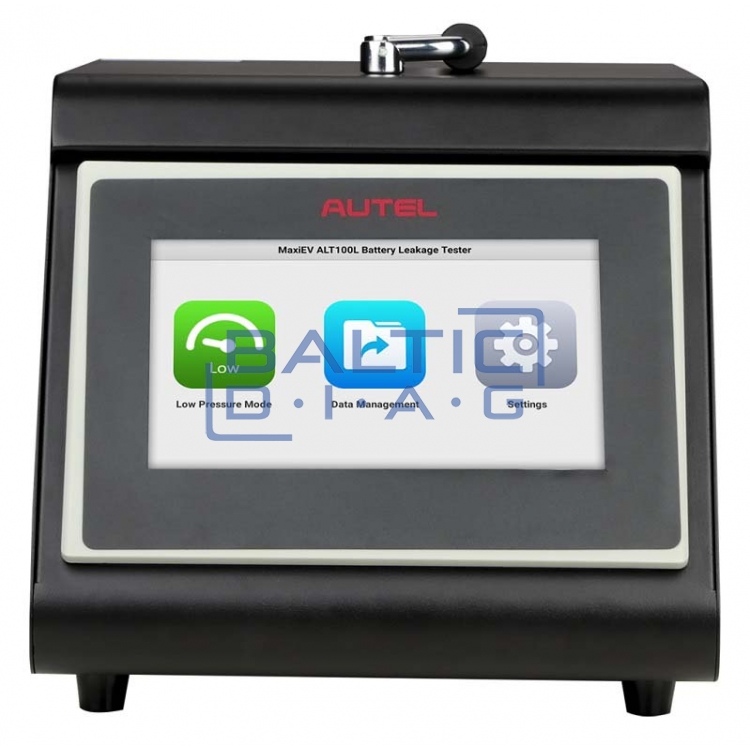

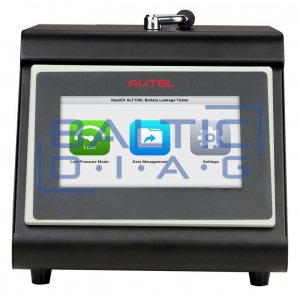

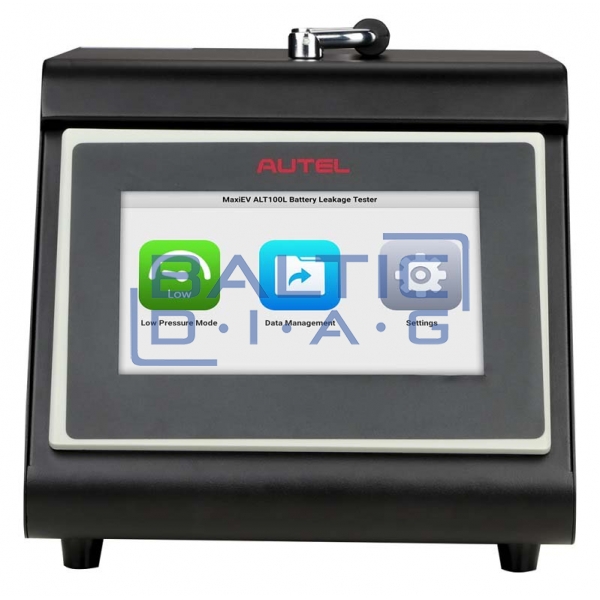

MaxiEV ALT100L battery tightness test device for electric car batteries

MaxiEV ALT100L battery tightness test device for electric car batteries

This MaxiEV ALT100L is an advanced and highly accurate pressure leak tester, specially designed for high voltage battery cell enclosures and high voltage thermodynamic systems. A modern facility is essential to ensure the tightness, safety and integrity of battery systems. For this reason, Autel MaxiEV ALT100L is very important in various industries. It provides real-time, dual-pressure readings, displaying both current pressure and leakage fluctuations. This feature allows you to instantly and accurately assess the integrity of the system under test. With high-sensitivity pressure sensors, the ALT100L significantly improves test accuracy and stability, detecting even the smallest leaks to ensure all faults are resolved. This device is one of the best assistants for professionals involved in the maintenance, testing and development of high voltage battery systems and enclosures. Its advanced functions and high precision make it an indispensable assistant that ensures safety, reliability and work productivity. No matter where you work, the MaxiEV ALT100L provides the precision and reliability you need to achieve the highest quality and safety standards.

Features:

• High sensitivity: greatly improved stability and accuracy of the measurements made.
• Barcode Scanner: Barcode scanning is supported, which directly reads the barcode of the battery pack and displays the information of these batteries
• Dual pressure display: the pressure graph and the test parameter curve are displayed on the same screen in real time
• Parameter management: the system automatically saves the last operating parameters and leaves the possibility to adjust the parameters of the measurements in the future, thus improving efficiency
• Automatic screen capture: screenshots of measurement data can be automatically saved and sent to a USB memory stick
• Smart Alerts: The inspection device will provide audio and visual alerts to ensure the safety of measurements when they fail or are incorrect
• Visual processes: the time duration of each stage is displayed
• Parameter Presets: Users can preset test parameters, battery ID, battery volume, target pressure, duration of each test, leak warning, etc.
• Remote control: the device supports online system updates and the option to optionally use the Clound platform, which provides remote data transfer and control capabilities

Technical parameters:

• Test Power: 20W (Max.)
• Test pressure range: 0 - 30 kPa
• Sensor resolution: 1 Pa
• Measurement accuracy: ± 5 Pa
• Power supply: 230 V / AC
• Air supply: 0.1 - 1.0 MPa dry compressed air
• Air inlet connection / test connection: Ø 6 mm / Ø 6 mm
• Communication interfaces: RS-232 / USB
• Data storage: internal memory / data update via USB stick
• Operating temperature: 10% - 90%, @ 25 °C non-condensing
• Dimensions: 280 x 300 x 200 mm
• Weight: 3.5 kg
