Martins Industries TC-18 tire conveyor

Martins Industries TC-18 tire conveyor

Martins Industries (Canada),

Description:

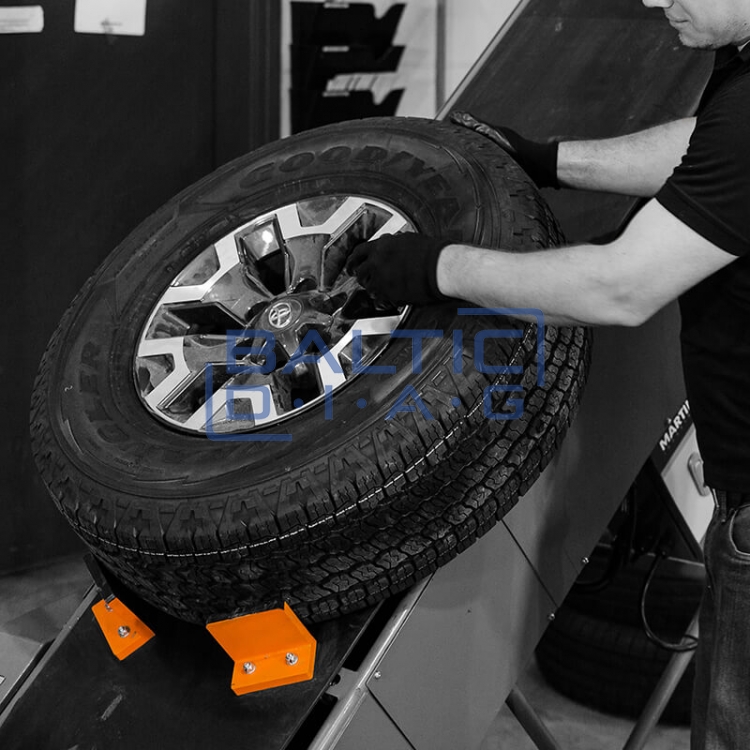

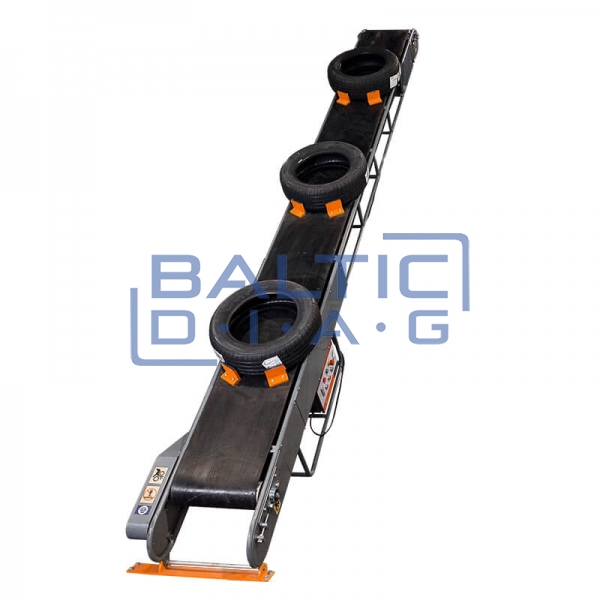

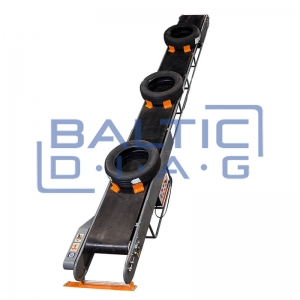

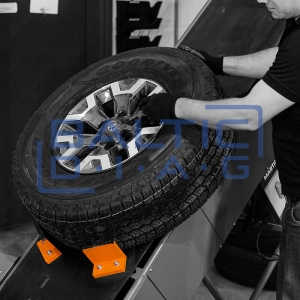

Martins Industries tire conveyors are specially designed to fit car and truck tires and can be raised at an angle of up to 60 degrees. The tire conveyor is a great piece of equipment for transporting tires up or down. CE certified, standard conveyors are produced in 4.6m, 5.5m, 6.4m and 7m lengths which cover the most commonly used sizes.

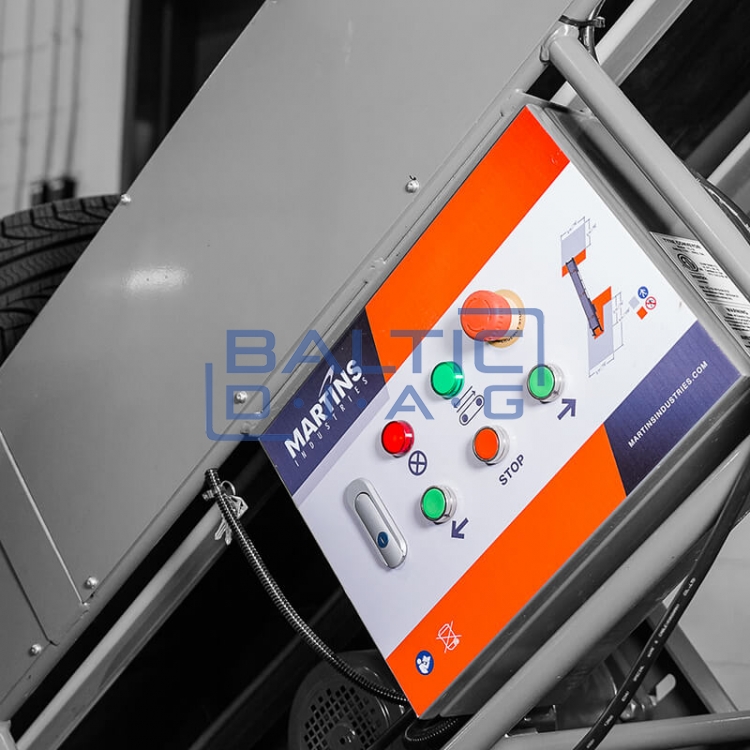

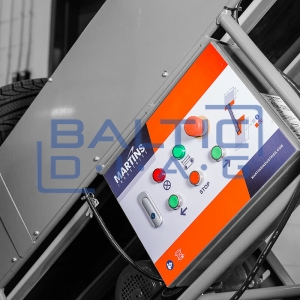

There is a control panel at both ends of the conveyor and a steel anchor plate at the bottom for stability. Installation will only take a few minutes: attach the four anchors to the floor or on the conveyor stand and plug the pre-wires into a 115-volt or 230-volt electrical outlet, depending on the conveyor model.

Technical data:

Dimensions: 4572 X 533 X 280 mm

Conveyor speed: ~ 12 pcs / min

Supporting weight: 230 kg

Weight: 341 kg

Powder orange

The main features of the tire conveyor:

Width: 533 mm

Electricity: 230V / 1Ph / 50Hz / 7A / 750W

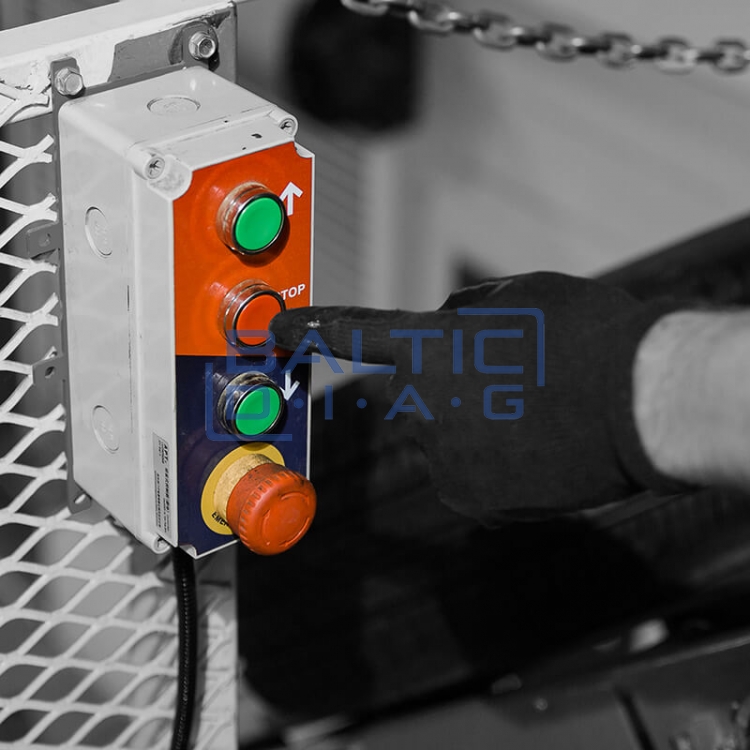

Controls: on / off and up / back at each end

Conveyor speed: 17.7 m / min

Tape: 457 x 9.5 mm - 2 layers (8 mm)

Engine: 1 HP
