Pneumo-hydraulic pit lift 20 tons

Pneumo-hydraulic pit lift 20 tons

Manufacturer: Falco Sollevatori

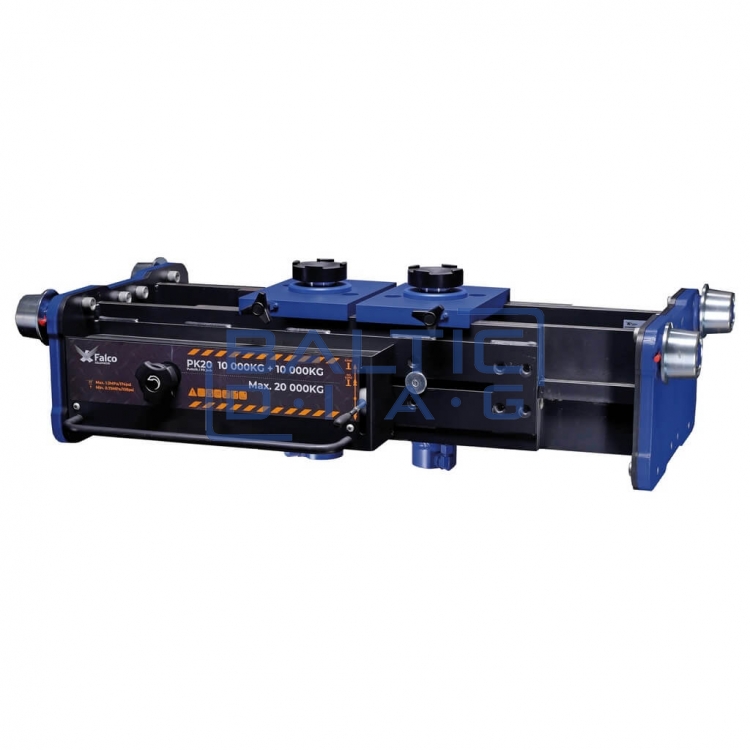

Two-cylinder pneumo-hydraulic pit lift - designed for safe and responsible lifting of cars, buses, minibuses, trucks and other vehicles, featuring maximum efficiency and safety features.

Pit jack features:

• Built-in pneumo-hydraulic pump with double lifting system. This system provides a higher lift speed at idle and a slower, even speed when lifting with a load.
• Two throttle valves are installed, thanks to which the lowering speeds of the lift will be regulated. The advantage of this system is that the lift will be lowered slowly if it has a load. And if the lift will not have any load, in this case it will automatically descend much faster. This makes the lift not only safe, but also very efficient, saving time during work.

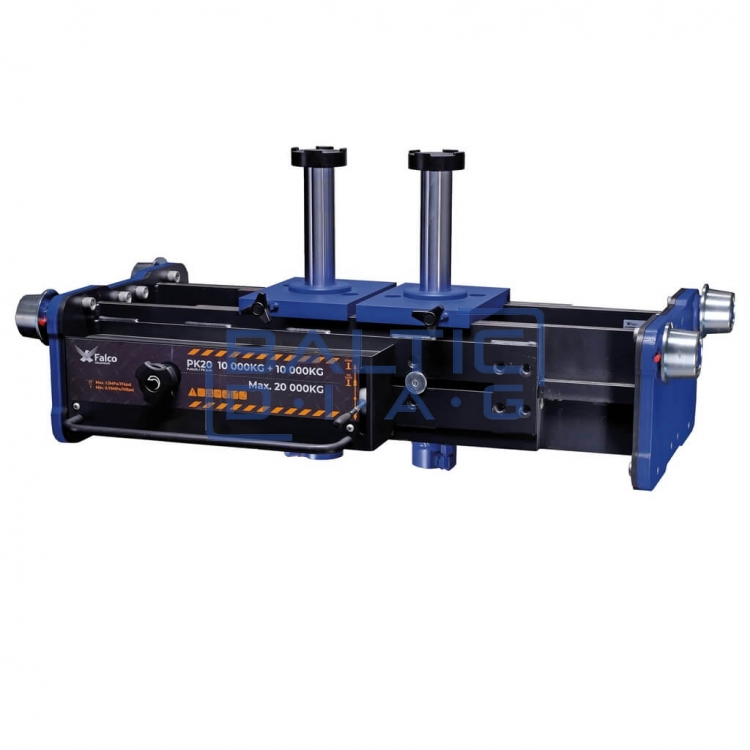

• The intelligently designed twin-cylinder hoist ensures maximum lifting power and reliable performance.
• The width of the pit lift frame can be adjusted and the modular side panels allow for several different mounting options. For this reason, the hoist can be adapted to all standard pit types.
• 2 individually controlled rams ensure safe and balanced lifting
• Transversely sliding rams
• Each pit jack can be adapted to the required pit frames by choosing the most suitable adapter plates. Depending on the required type of rails, cylindrical or conical can be selected. Depending on the required height, the required long or short adapter plates can be selected.

Attention:

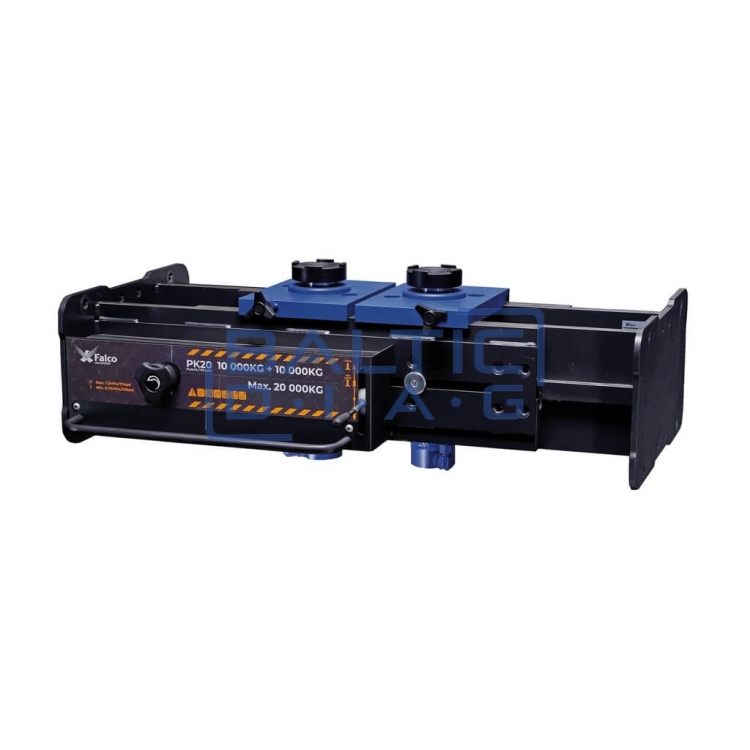

All pit lifts are sold without mounting/mounting plates! It must be selected taking into account the profile and dimensions of the required hole.

Available choices of standard mounting plates:

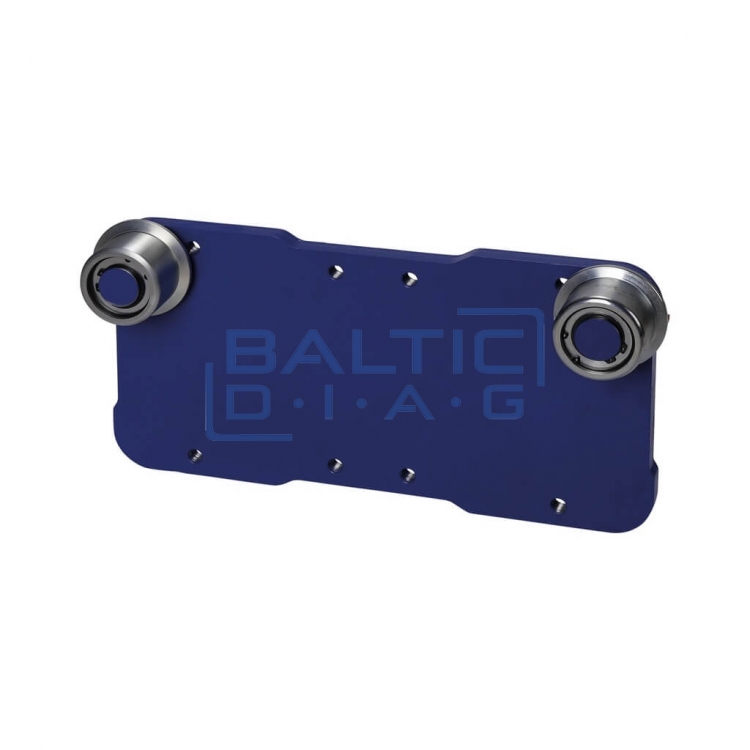

• Short plate + cylindrical wheels for pit jack
• Long plate + cylindrical wheel for pit jack

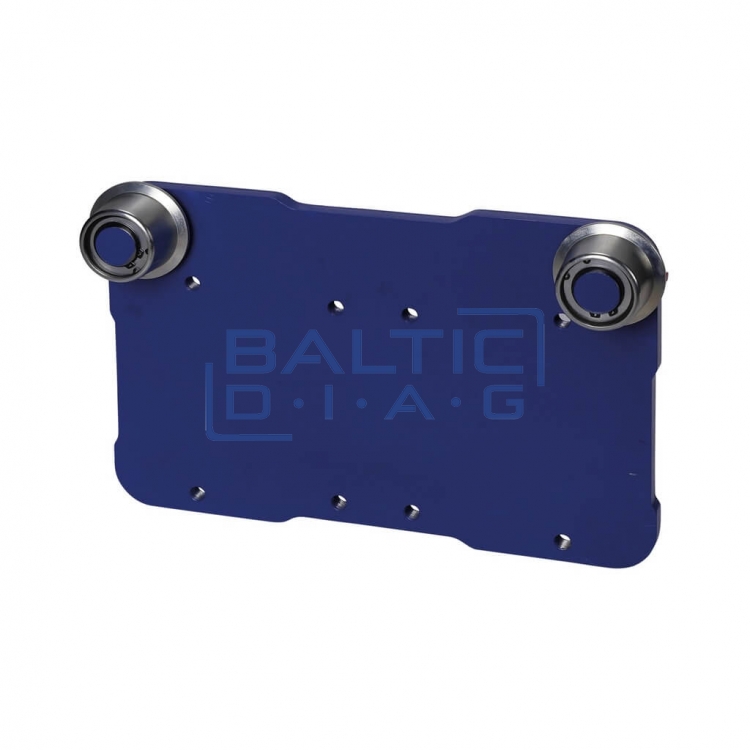

• Short plate + conical wheel for pit jack
• Long plate + conical wheel for pit jack

Technical parameters:

• Lifting capacity: 20 tons
• Working air pressure: 7.5 - 12 bar
• Stroke: 200 mm
• Min. height: 356 mm
• Max. height: 556 mm
• Width: from 840 to 1140 mm
• Lifting points: 200 to 890 mm
• Depth: 665 mm
• Weight: 265 kg
• Product length: 600 mm
• Product width: 860 mm
• Product height: 355 mm
• Product weight: 217 kg
