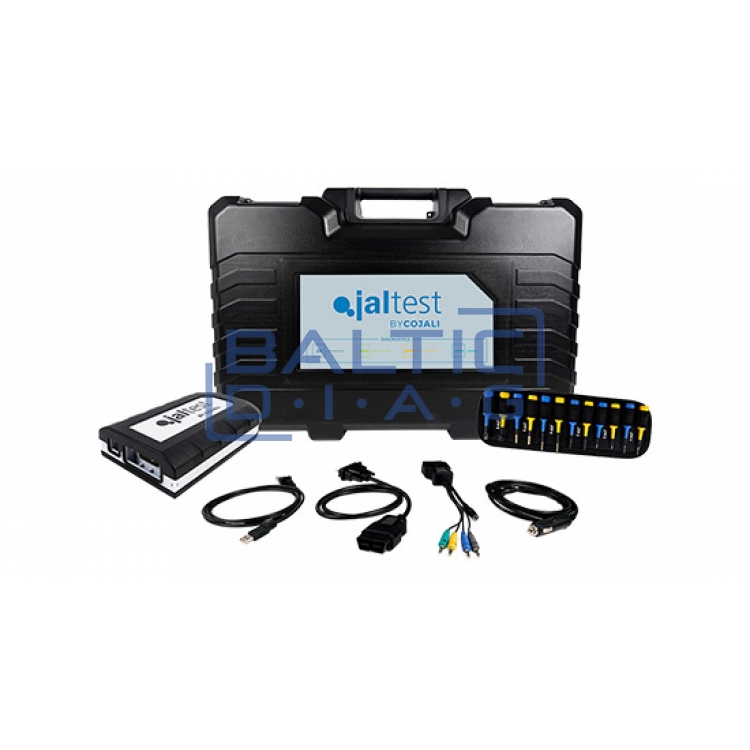

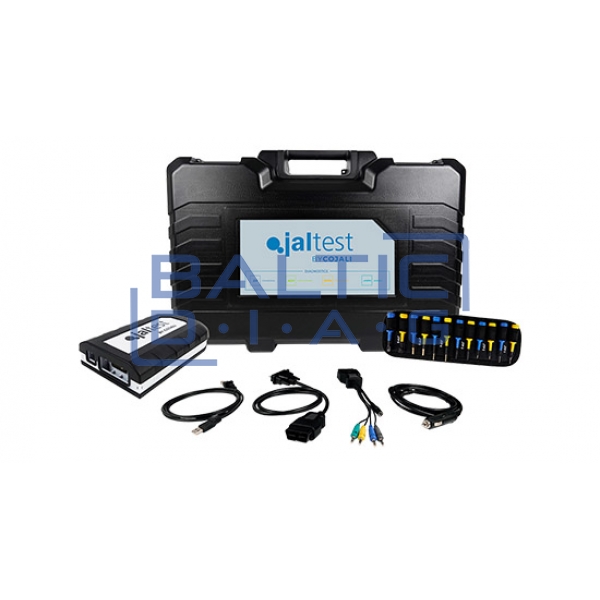

Marine Diagnostic Tool JalTest PC Link
A universal tool for diagnostics of all types of watercraft.
Professional equipment for electrical and electronic system diagnostics of boats, vessels, and other marine vehicles.
JalTest PC Link is a high-end, versatile diagnostic device designed for analyzing a wide range of watercraft and heavy-duty equipment. It is especially well-suited for technical maintenance of marine engines and systems. Combining broad manufacturer coverage, USB and Bluetooth connectivity, and regular software updates, JalTest PC Link is the ideal choice for professionals seeking efficiency, accuracy, and mobility.
Why Choose JalTest PC Link?
- Extensive Coverage – One Solution for Most Cases
- Compatible with more than 99.5% of boats and vessels on the market – no need for multiple separate devices.
- Universal Diagnostics Beyond Marine Use
- Also suitable for trucks, buses, agricultural, and construction machinery – all-in-one functionality.
- Regular Updates and Expanding Database
- Software is updated three times a year to ensure up-to-date systems, models, and technical information.
- Flexible Connectivity – Connect the Way You Prefer
- Use via USB cable or Bluetooth – maximum mobility both in the workshop and on-site.
- Easy Access to All Connection Ports
- Universal cables and adapters ensure smooth connection to any diagnostic interface – minimal disruptions.
- Durable Construction Built for Outdoor Use
- Shock-resistant and designed for tough environments – a reliable partner in daily service operations.
Jaltest Marine Diagnostic Coverage:
- Number of supported marine vehicle brands: 84 and growing
- Number of supported marine vehicle models: 1499 and growing
- Technical database entries: 2861 and growing
- Electronic diagram entries: 2137 and growing
Standard Package:
- Jaltest Marine Boat software 74502002
- Jaltest Marine Boat license 74602002
Features:
- ECU (Electronic Control Unit) diagnostics via OBD interface or specific adapter
- Ability to connect to any diagnostic interface using a universal cable with specialized terminals
- Integrated automatic multiplexer – automatic switching of K and L, CAN, and SAE lines to any OBD terminal
- Supported diagnostic protocols:
- ISO 9141-2, K/L lines;
- ISO 14230 (KWP2000), K/L lines;
- SAE-J1850 VPW and PWM;
- ISO 11519-2;
- SAE J1708;
- ISO 15765-4 (OBD);
- CAN ISO 11898;
- CAN (High Speed, Middle Speed, Low Speed, single-wire CAN systems);
- SCI Haldex;
- RP 1210;
- SAE J2534 (PASS-THRU)
Technical Specifications:
- Connects to desktop or laptop via Bluetooth or USB cable
- Bluetooth range: 20–50 m
- Minimum PC requirements: DVD drive, Windows XP, 7, 8, 10 64-bit OS, 2 GB RAM, 10 GB free hard disk space, USB port
- Power supply via OBD connector or 12/24 V DC power adapter
- Maximum power consumption: 7 W
- Shock-resistant housing
- Weight: 1.2 kg
- Dimensions: 183 x 131 x 56 mm
- Operating temperature: 0°C to +45°C
- Multilingual interface
- Certifications: CE, FCC, RoHS
Optional Accessories:
- Cable set for diagnostics of commercial boats and vessels
- Thermoking diagnostic cable COJALI JDC113A
- JalTest Soft + INFO Online software for diagnostics of trucks, trailers, buses, and vans
- JalTest Soft + INFO Online 12-month update subscription
- Software package for truck and tractor diagnostics
- Software package for bus diagnostics
- Software package for van and commercial vehicle diagnostics
Who Is This Device For?
- JalTest PC Link is the ideal solution for workshops, independent technicians, and diagnostics professionals working with boats, vessels, inboard and outboard engines, and other types of marine vehicles. It’s a perfect fit for those looking to expand their service offerings and manage multi-system diagnostics with a single solution.
