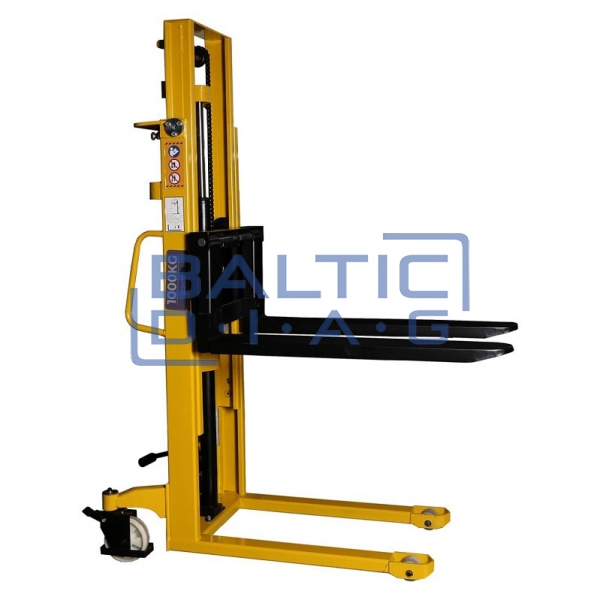

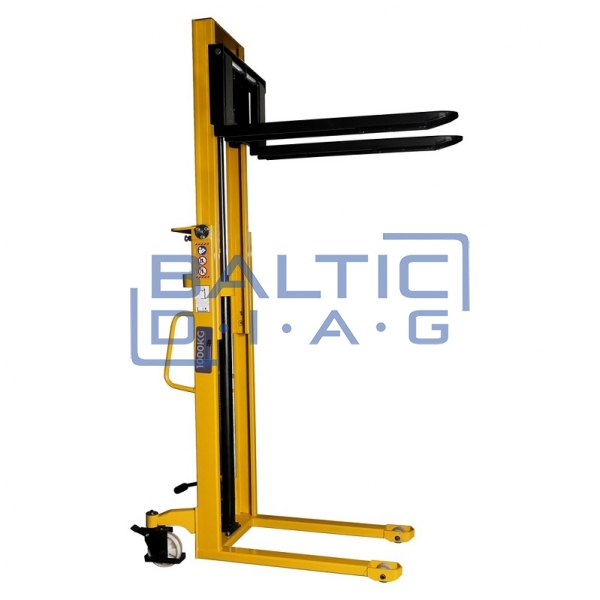

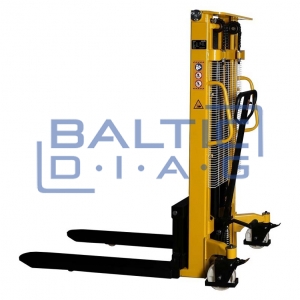

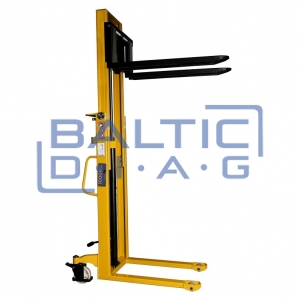

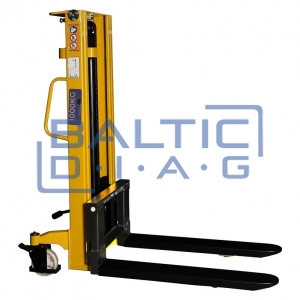

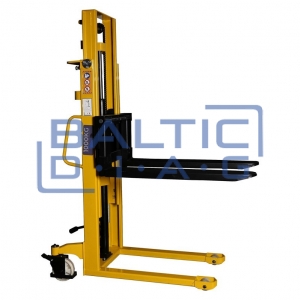

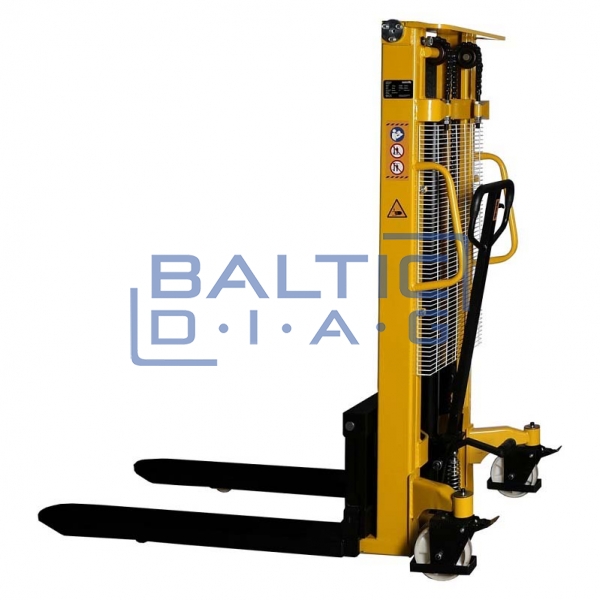

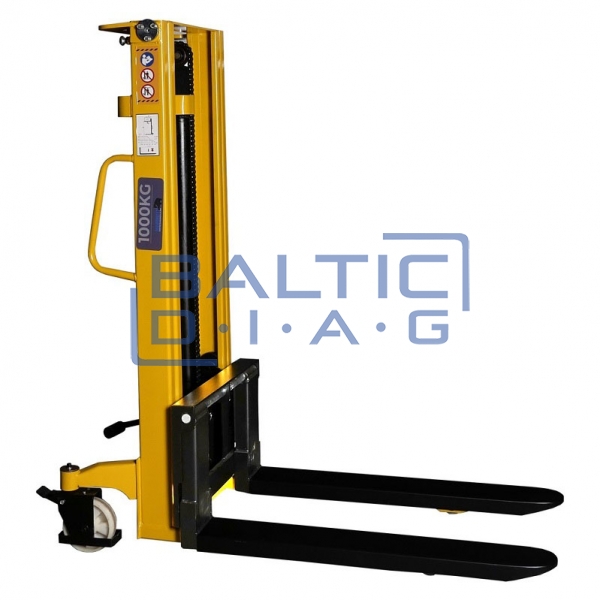

Manual Pallet Stacker PS10M25A Mammuth
Country of origin: Netherlands, warranty period - 24 months

The Mammuth manual hydraulic stacker is a versatile and efficient solution for pallet transport, stacking, and positioning in small warehouse or retail environments. The stacker features a lifting capacity of 1000 kg and a maximum lifting height of up to 2520 mm. Its compact design and minimized turning radius allow for convenient maneuvering even in narrow spaces. The adjustable fork width (320–700 mm) makes it suitable for various pallet sizes, while the robust construction ensures long-lasting and safe operation.

Functions:

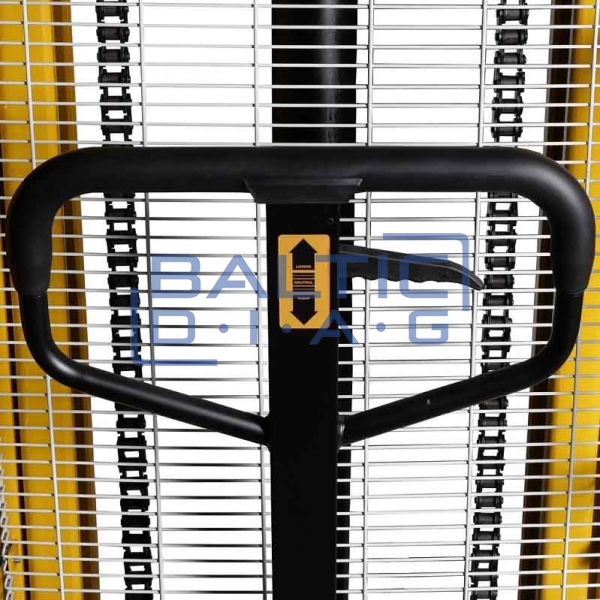

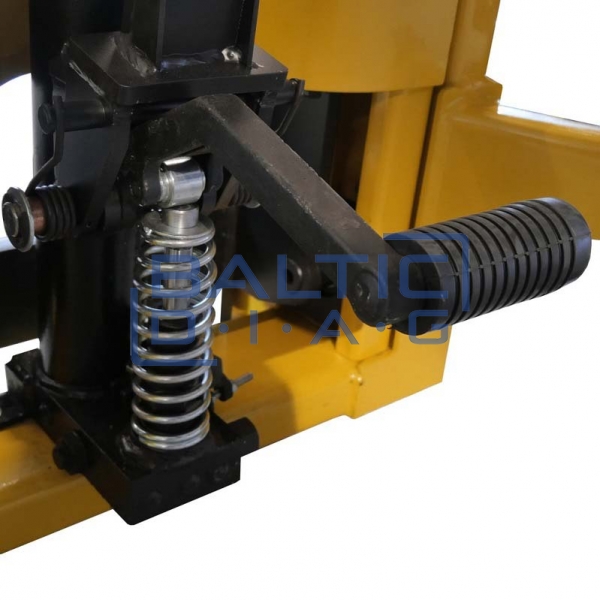

  • Manual lifting via handle or foot pedal

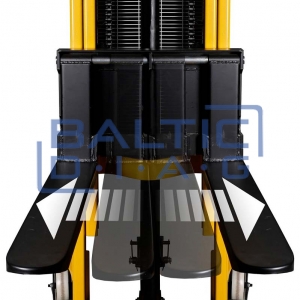

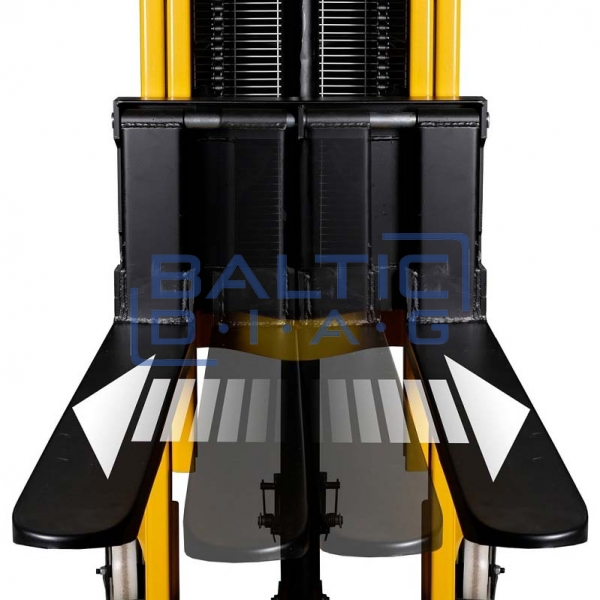

  • Adjustable fork width (320–700 mm)
  • Suitable for various pallets and stacking tasks
  • Compact design for maneuverability in tight spaces
  • Wheels with parking brake ensure stability
  • Durable C-profile mast for strength and safety
  • Protective frame against crush injuries
  • Made of high-strength steel
Technical specifications:
  • Lifting capacity: 1000 kg
  • Wheel material: nylon
  • Lifting speed (loaded): 16 mm/s
  • Fork width: 320–700 mm
  • Fork dimensions (length x width x height): 1150 x 160 x 55 mm
  • Turning radius: 1600 mm
  • Lifting height range: 85–2520 mm
  • Total length: 1750 mm
  • Total width: 835 mm
  • Lowering speed (loaded): adjustable
  • Mast height (lowered): 1770 mm
  • Mast height (extended): 2960 mm
Product dimensions:
  • Length: 1650 mm
  • Width: 850 mm
  • Height: 1755 mm
  • Weight: 280 kg
Package dimensions:
  • Length: 1650 mm
  • Width: 850 mm
  • Height: 1755 mm
  • Weight: 280 kg
