Launch X-431 ADAS PRO + camera and sensor calibration system

Launch X-431 ADAS PRO + camera and sensor calibration system

Manufacturer: Launch, Warranty: 2 years

Description:

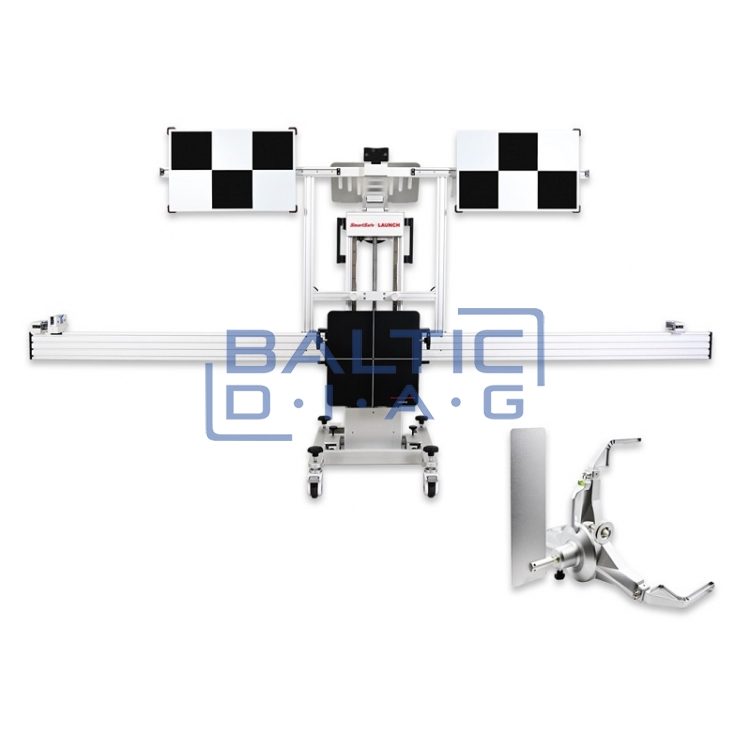

X-431 ADAS PRO+ is the latest automatic ADAS camera and sensor calibration system developed by LAUNCH. It is a high precision, professional equipment for the calibration of ADAS systems and it is designed to meet the daily calibration requirements of ADAS systems for workshops. The X-431 ADAS PRO+ basically consists of a main frame, wheel clamps, a target holder, a laser range finder, a range indicator, and a calibration target. This equipment supports multi-directional target alignment, including level, front and back, right and left. With this equipment you will be able to calibrate systems such as LDW, ACC, AVM, RCW, BSD, NVS and others. Also, you will be able to coordinate this equipment with X-431 ADAS PRO and X-ADAS Mobile BSD, AVM and rear camera targets. The ADAS system is useful for auto body repair shops, glass shops or professional car workshops to accurately calibrate cameras and sensors when they have been replaced or removed for repair.

Features:

• The modular construction and its accessories allow you to configure the tool individually according to your workshop.
• The calibration frame is easily and precisely controlled for centering the vehicle.
• Even an axial measuring system can be used.
• Many calibration functions, wide coverage of car models.
• There are many vehicle specific calibration plates to choose from.
• Read the instructions before starting the calibration procedures.
• Professional ADAS system function in LAUNCH software.

ADAS features:

Launch X-431 ADAS calibration features:

The equipment is compatible with the following devices from the manufacturer Launch

• Launch X-431 Euro PRO5
• Launch X-431 Euro TABIII

Components of the Launch X-431 ADAS device:

1. Calibration frame
2. Laser range finders - 3 pcs.
3. Centering laser LAC09-02
4. Wheel holders with distance measuring plates - 2 pcs.
5. Reflector for ACC radar LAM05-02
6. Measuring plate LAC09-01
7. Mounting plate LAC09-01
8. Activation card
9. Box of calibration targets
