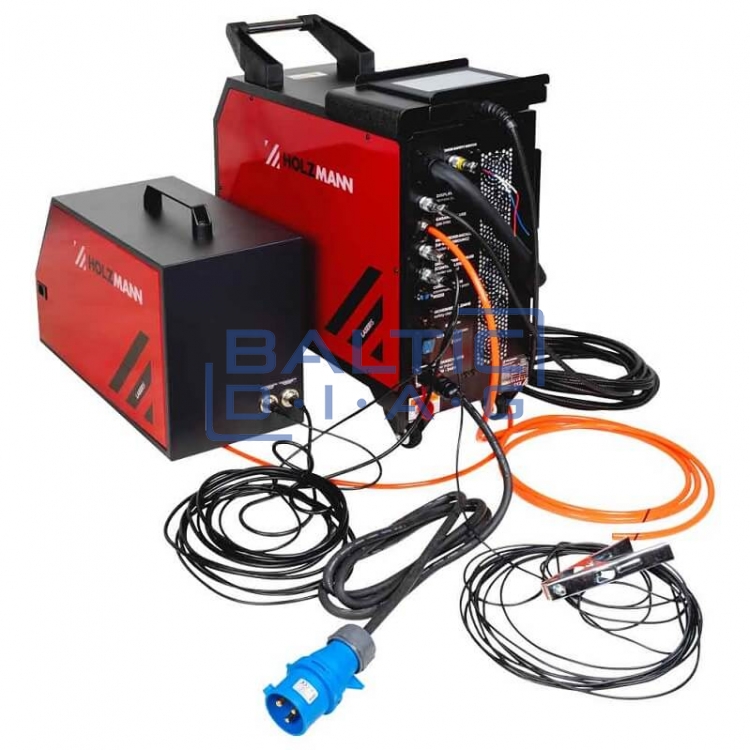

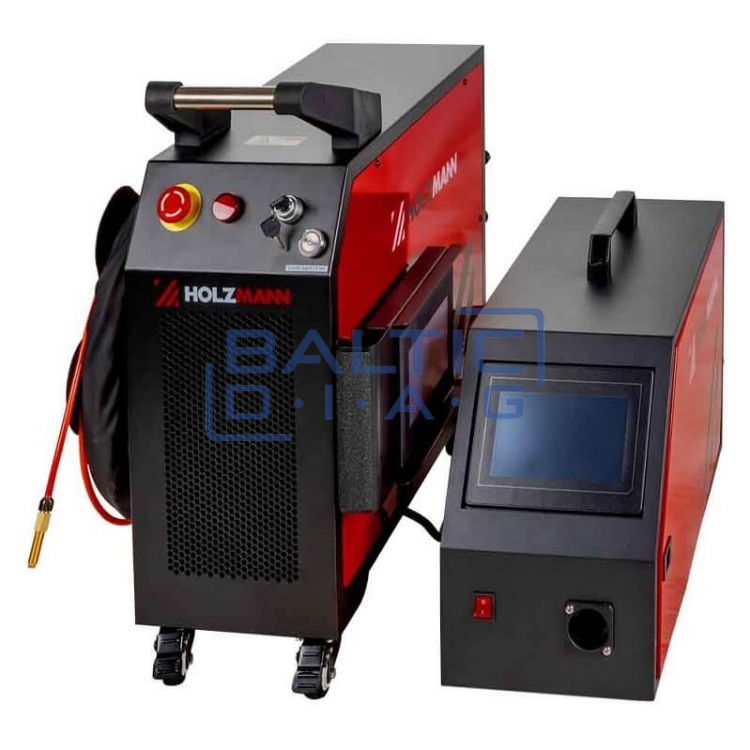

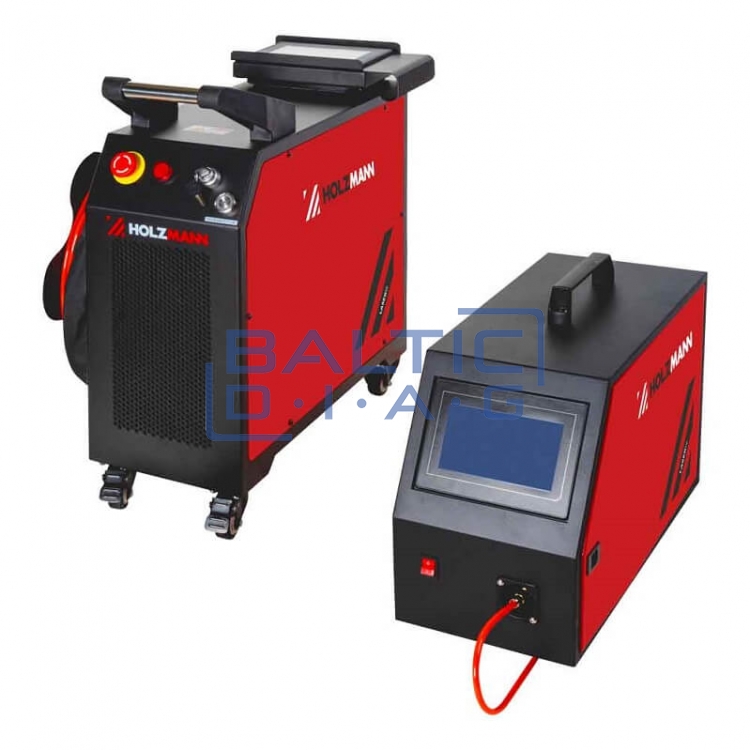

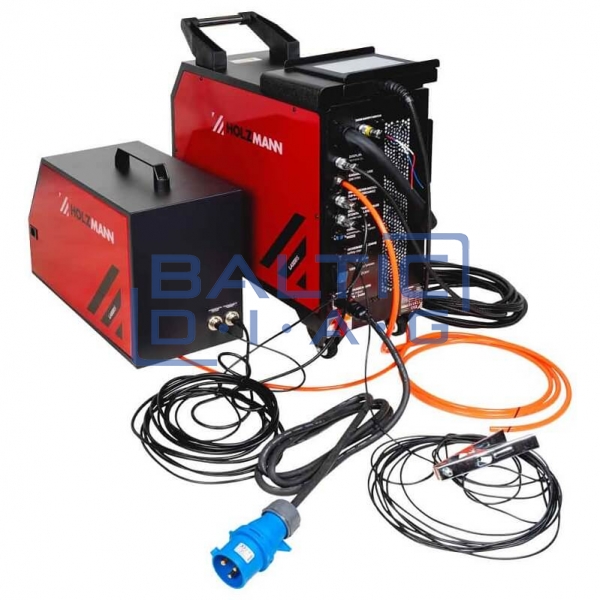

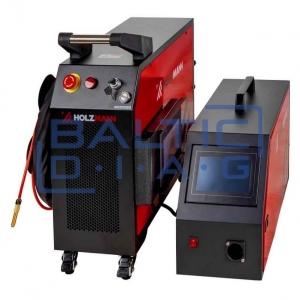

Laser welding machine HOLZMANN LASER15 230V (air-cooled, multi-functional)

Laser Welding Machine HOLZMANN LASER15 230V (Air-Cooled, Multi-Functional)

Country of Origin: Austria, warranty period - 24 months

The HOLZMANN LASER15 230V is a 1.5 kW air-cooled laser welding machine that combines welding, rust removal, and cutting functions in a single device. This advanced technology solution is designed for various metalworking applications. The package includes a wire feeder, a control display for easy operation, and a set of additional nozzles and lenses.

Features:

• Laser welding – enables welding of metal up to 3 mm thick.
• Laser cutting – cuts materials up to 3 mm thick.
• Rust removal – effectively removes rust from metal surfaces.
• High-quality laser – 1.5 kW power, Class 4 laser.
• Wire feeder system – supports welding wire of various diameters (Ø0.8 | 1.0 | 1.2 | 1.6 mm).
• Intuitive operation – built-in display allows easy adjustment of settings.

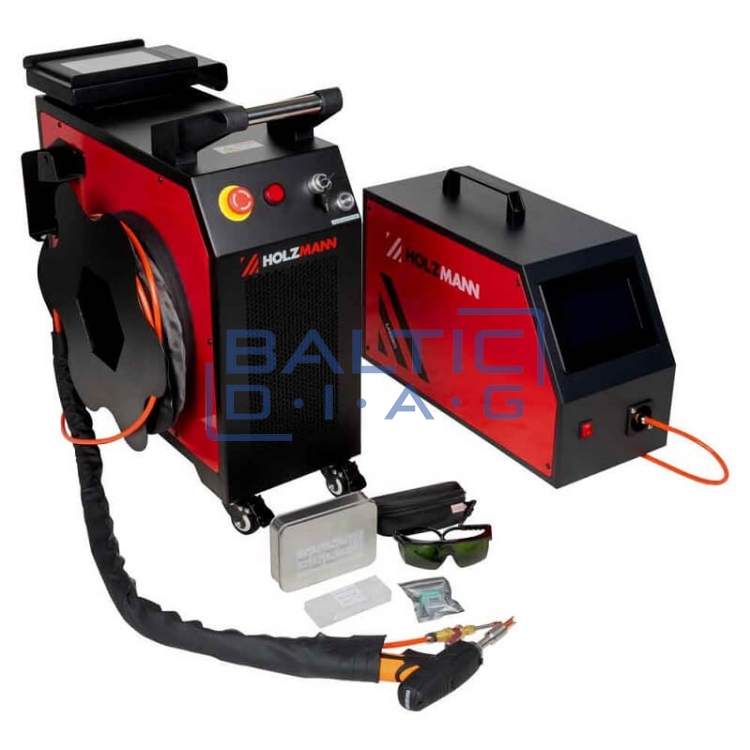

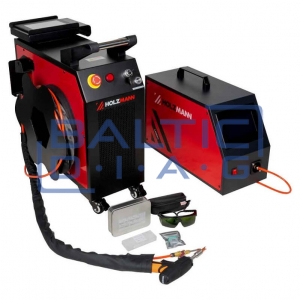

• Complete set – includes safety goggles, gas hose, nozzle and lens set, grounding cable, wire feeder unit, laser gun, wire feed nozzles, and guide rollers.

Technical Specifications:

• Laser Parameters:
• Wavelength: 1080 nm ± 5 nm
• Laser beam quality: M² < 1.2
• Laser class: 4
• Laser output power: 1.5 kW
• Wire Feeding System:
• Power: 60 W
• Welding wire thickness: Ø0.8 | 1.0 | 1.2 | 1.6 mm
• Feed rate: 0 - 7.2 m/min
• Maximum Material Processing Thickness:
• Laser cutting: up to 3 mm
• Laser welding: up to 3 mm
• Electrical Input:
• Voltage: 230 V (50-60 Hz)
• Power capacity: 3.8 KVA
• Weight:
• Gross weight: 82 kg
• Net weight: 51.60 kg
• Packaging Dimensions:
• Width: 430 mm
• Length: 790 mm
• Height: 970 mm
