Hydraulic suspension test bench for cars and commercial vehicles with a total weight of up to 3.5 tons.
Hydraulic suspension test bench for cars and commercial vehicles with a total weight of up to 3.5 tons.

Hydraulic suspension test bench for cars and commercial vehicles with a total weight of up to 3.5 tons.

The price is specified for the stand only, excluding the concreting frame, installation work, and wireless control unit.
  • SKU: BD05300
6,050.00 €

Prices shown include tax

Send Message

Description

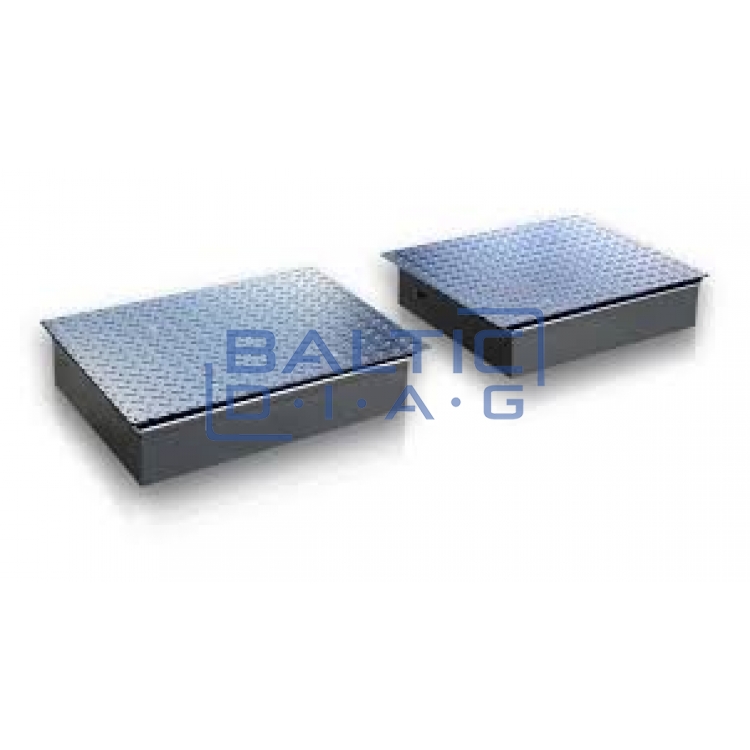

Hydraulic Suspension Testing Stand up to 3.5 Tons, UNIMETAL SZ-3.5H
Country of origin: Poland, warranty period – 24 months

The UNIMETAL SZ-3.5H is a hydraulic suspension and chassis testing stand designed to assess the condition of suspension systems in passenger cars and light commercial vehicles (up to 3.5 tons total weight). The device generates forced wheel jerking motions, enabling the identification of defects in suspension, steering mechanism, and chassis components based on the noises produced. This method is often referred to as a "listening detector." Thanks to synchronized plate movements, a bright LED control flashlight, and galvanized plates with a bitumen coating, the stand ensures reliability, safety, and long-lasting operation.



Features:
  • Designed for passenger cars and light commercial vehicles up to 3.5 tons
  • Forced wheel jerking helps detect chassis faults based on sound
  • Synchronized movement of plates improves diagnostic accuracy
  • LED control flashlight with wired or wireless operation
  • Galvanized plates with grooves ensure durability
  • Bitumen-coated plate surface for increased tire grip
  • Option for recessed floor installation with a frame structure
Technical Specifications:
  • Maximum axle load: 2 tons
  • Plate movement: lateral – 45 mm; rotational (variable) – 16°
  • Movement type: synchronized
  • Plate dimensions: 730 × 650 × 180 mm
  • Power supply: 1.5 kW (hydraulic)
  • Power voltage: 230 V
Included Equipment:
  • Hydraulic suspension testing stand
  • Service brake pedal locking device
  • Wired LED control panel with flashlight and control cabinet
Optional Equipment:
  • Wireless LED control panel with flashlight and control cabinet
  • Wi-Fi control module (Android application)
  • Frame structure for recessed floor installation SZ-3.5

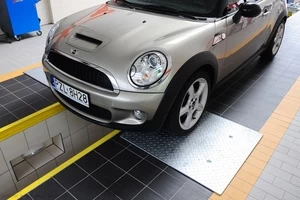

SZ-3.5H(1)

UNIMETAL SZ-3.5H
