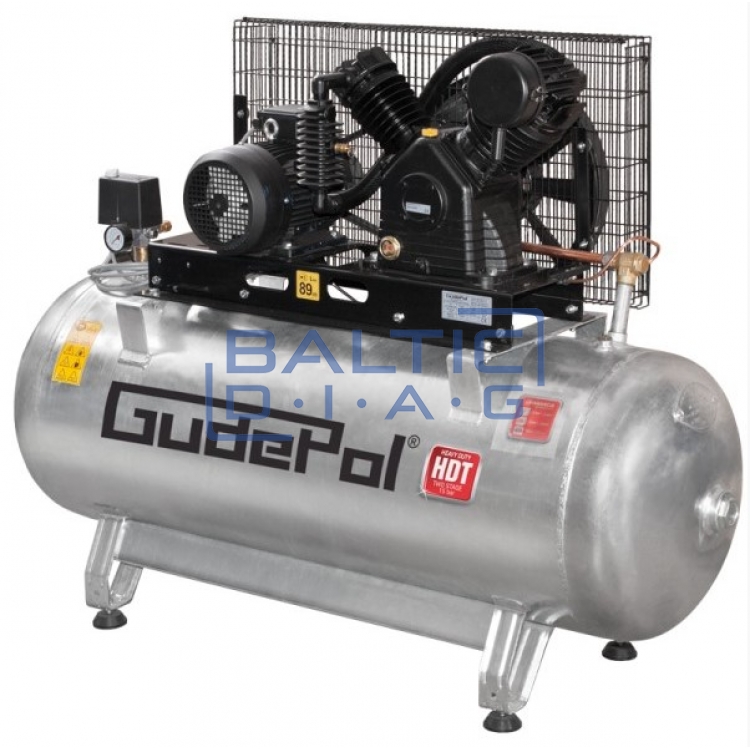

High Pressure 15 Bar Piston Air Compressor Gudepol HDT50-270-580-15
High Pressure 15 Bar Piston Air Compressor Gudepol HDT50-270-580-15

High Pressure 15 Bar Piston Air Compressor Gudepol HDT50-270-580-15

  • SKU: BD84780
3,569.50 €

Prices shown include tax

Send Message

Description

High Pressure 15 Bar Piston Air Compressor Gudepol HDT50-270-580-15


Gudepol, Poland

Description:

HD - Heavy Duty Series Gudepol Compressor. The HD compressor line is provided with:
2 year warranty on pump and pressure switch
3 year electric motor warranty
10 year warranty on tank!

The Gudepol HD Series Piston Compressors are built on 20 years of company experience, using state-of-the-art international solutions and the highest quality parts.
In response to most customer requests, Gudepol has developed an innovative solution for reciprocating compressors by installing a galvanized tank and a high efficiency pumping system.
All equipment is designed, assembled and manufactured at the Gudepol plant in Legnica, Poland.
Each unit undergoes a rigorous quality control procedure that checks all compressor parts.
These compressors are designed for use in demanding environments, industrial applications. The low-speed alloy iron pump, combined with a 100% galvanized inside and outside tank, allows the compressor to work for a long time.
Electric motor - HD system, high insulation class IP55, adapted for continuous operation, according to class S1
Pressure switch with thermal protection and no-load release system - full electric motor protection, soft start
High efficiency cooling system - efficient belt fan, cooling wings between cylinders
Belt drive with tapered lock for precise and easy transmission positioning
Tank - 100% galvanized inside and out, corrosion protection standard PN-EN ISO-1461

Technical parameters:

- Productivity: 580 L / min (34.8 m3 / h)
- Tank Capacity: 270L
- Maximum pressure: 15 bar
- Engine power: 4.0 kW
- Number of cylinders: 2
- Compression ratio: 2
- Power supply: 400V three-phase
- Noise level: 82 dB
- Speed: 790 rpm
- Dimensions: 148 x 50 x 103 cm
- Weight: 205 kg
