Fume extraction unit with cleanable cartridge filter M4/2100 FRESHWELD

Fume Extraction Unit with Cleanable Cartridge Filter M4/2100 FRESHWELD

Country of origin: Turkey, warranty period – 24 months

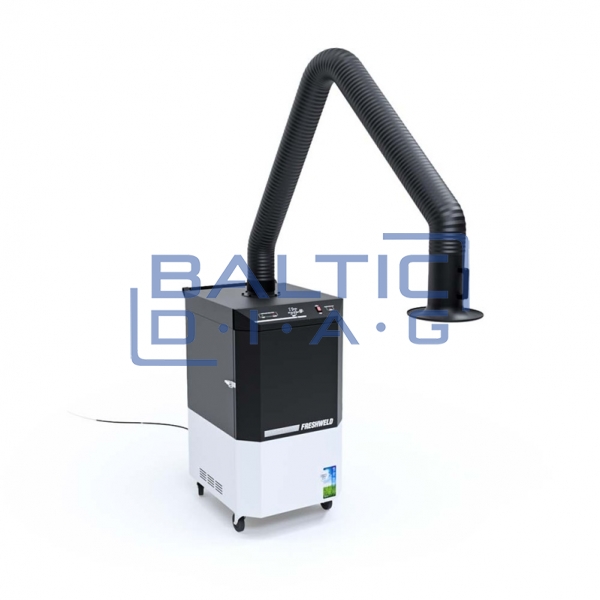

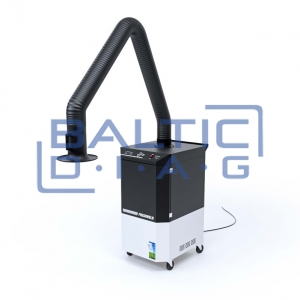

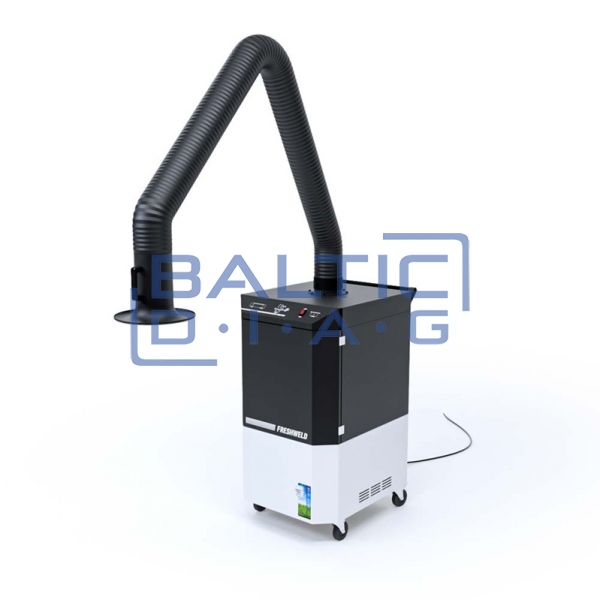

The M4/2100 is a mobile fume and hazardous dust extraction unit equipped with manually cleanable F9-class cartridge filters and a single flexible extraction arm. It is ideal for medium-density fume and dust filtration generated during welding and processing of mild or slightly alloyed steel. The filters effectively capture even the finest particles (0.3–1 µm), and thanks to their long service life and practical design, the unit ensures efficient performance with minimal downtime.

Features:

• Two F9-class cartridge filters (EN779) designed for particles ranging from 0.3 to 1 µm

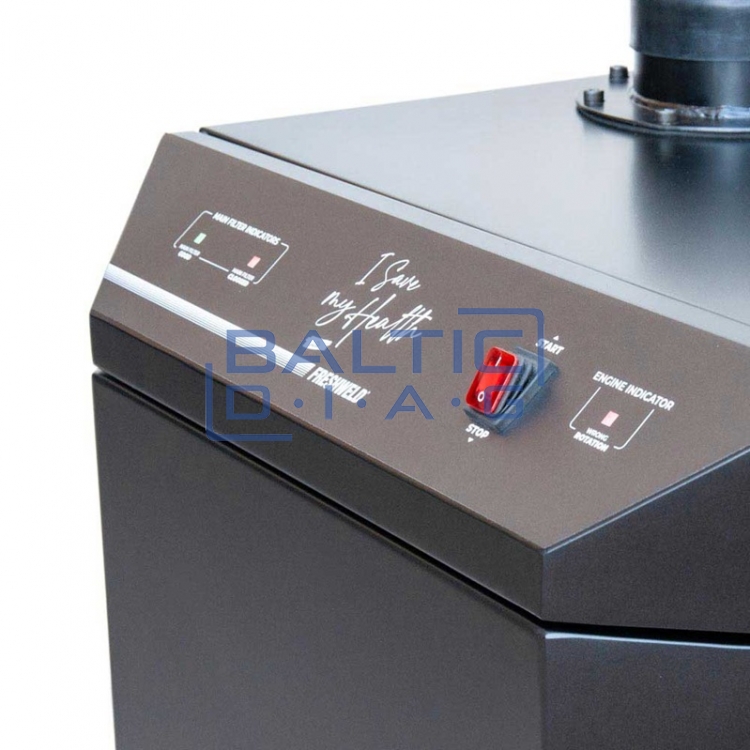

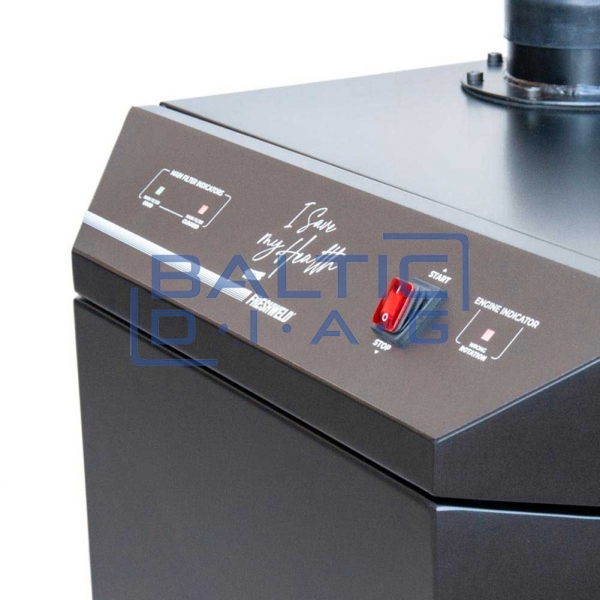

• Filter contamination indicator – maintenance is required only when necessary
• Filters can be cleaned with dry air without removing them from the housing
• Environmentally friendly dust disposal via an integrated waste drawer

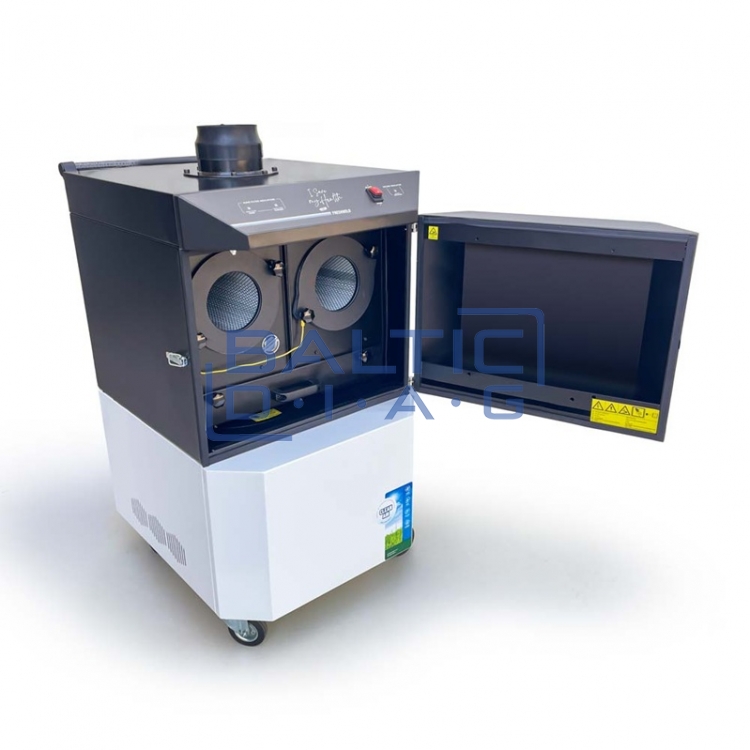

• Patented front cover for fast and convenient filter cleaning, replacement, and waste discharge
• Large filter surface area: 2 x 10 m² = 20 m² with high dust retention efficiency

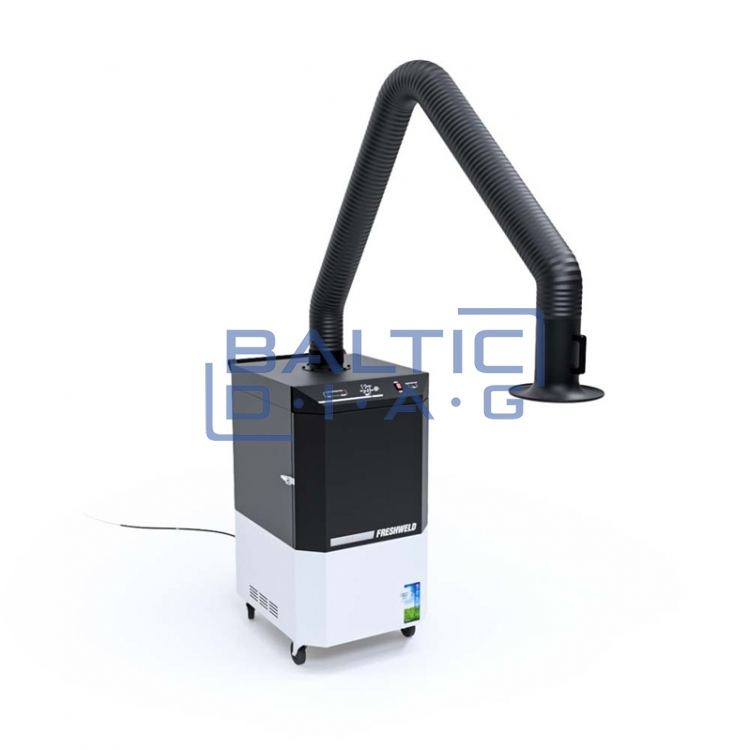

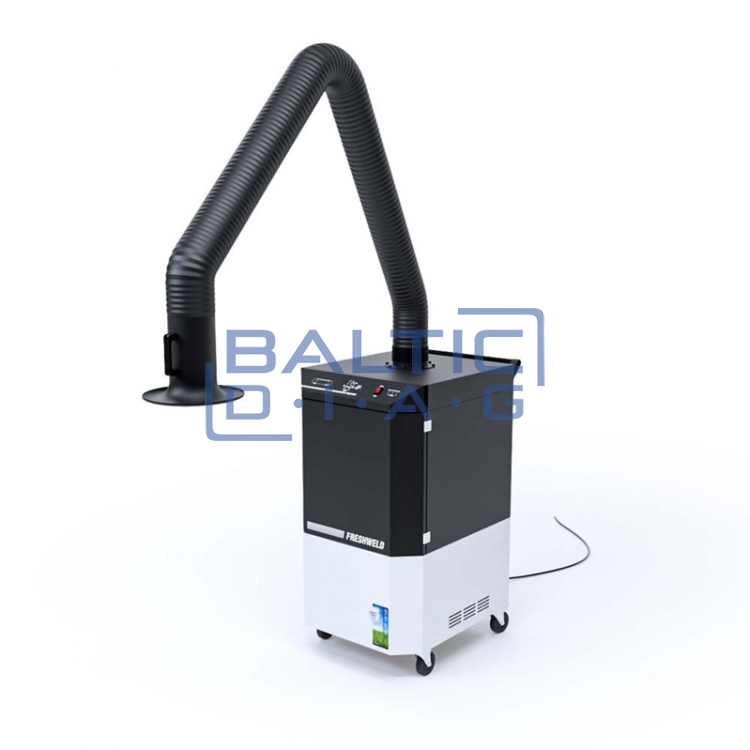

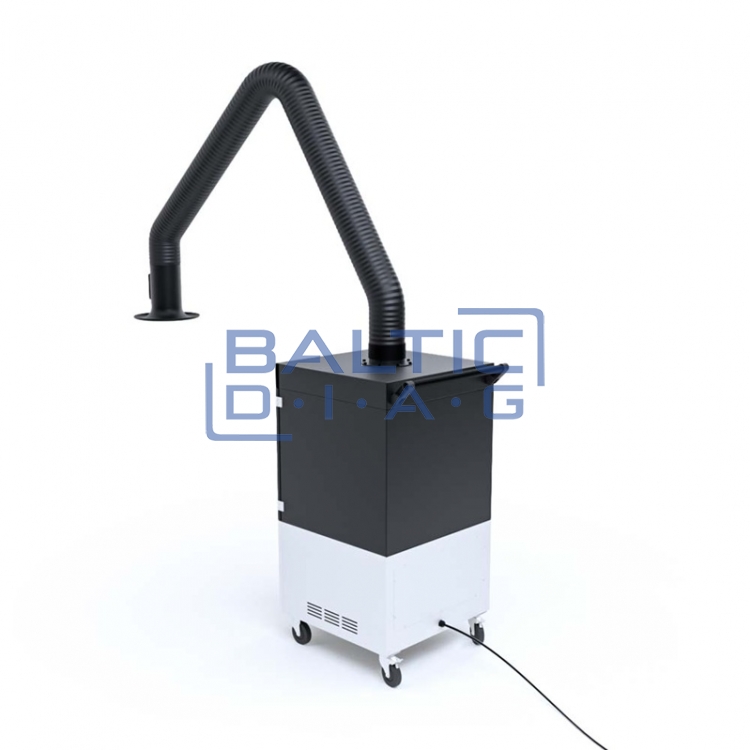

• Single flexible extraction arm (inner or outer joint), available in lengths up to 4 meters (on request)

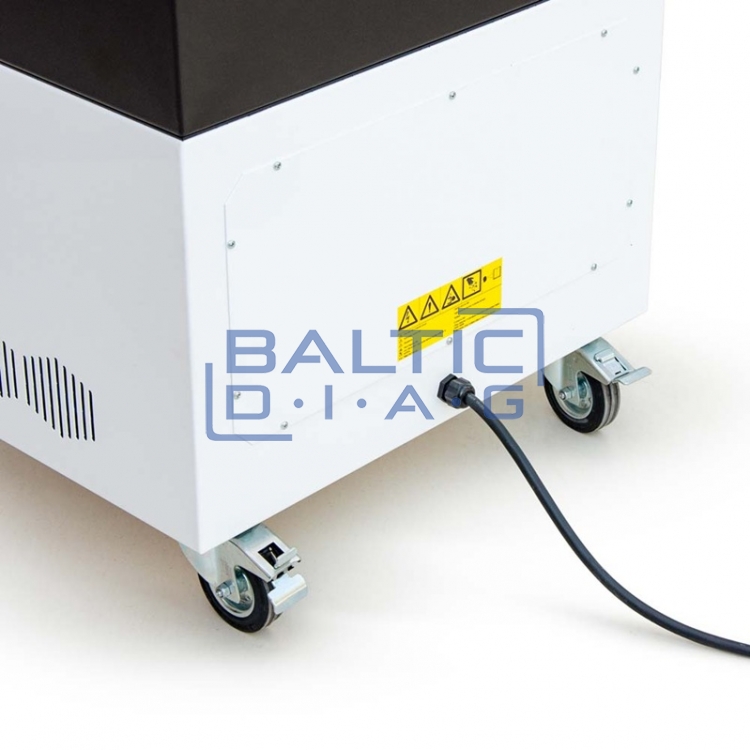

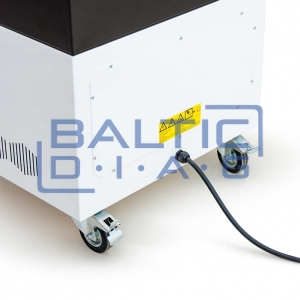

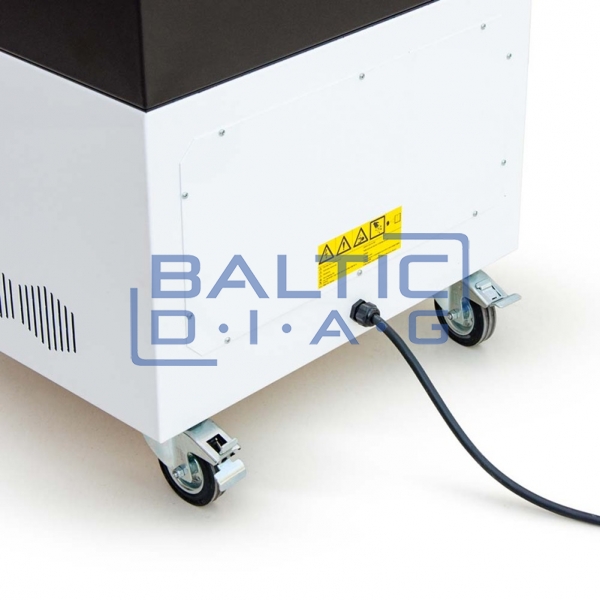

• Stability ensured by lockable caster wheels
• Easy transport thanks to swivel wheel structure
• Quiet and smooth operation with polyamide wheels

Technical Specifications:

• Filters: 2 x F9-class cleanable cartridge filters (EN779, ePM1 90%)
• Filter surface area: 20 m²
• Dust collection: built-in waste drawer
• Extraction arm: single, flexible, with internal or external joint
• Maximum arm length: up to 4 m (customizable)
• Wheels: polyamide with locking function
• Power cable: 3 meters
• Designed for fume and toxic gas extraction during processing of mild and slightly alloyed steel
• Mobile design for flexible use across multiple work areas
