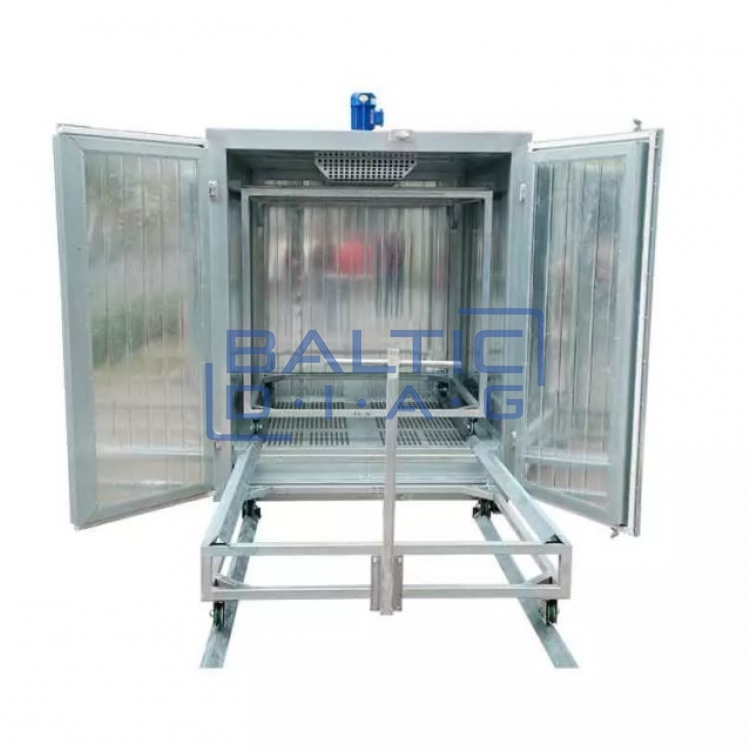

Electric powder coating oven COLO 1864

Electric powder coating oven COLO 1864

• The COLO 1864 powder coating furnace is a simple and efficient powder coating process, whose electric heating method allows it to be quickly raised to the required temperature with less energy, as well as keeping the environment clean.
• It is the most popular model for small and medium parts such as light alloy wheels, bicycle frames, motorcycle parts and more.
• Electrical properties of a powder coating furnace
• The PLC panel allows precise setting of the required temperature and heating time and includes fan start, alarm lights and emergency stop buttons.
• The bottom of the oven is made of parts of electric heating pipes with high thermal conductivity to create hot air, and the fan evenly transfers heat through the oven housing.
• At least 100 mm of stone wool insulation is inserted between the galvanized inner wall and the colored steel, effectively reducing the temperature drop.
• Designed with a loading frame and trolley that can easily process batch blanks in and out of the oven.

Technical data:

• Power supply electric: 18 kw
• Voltage: 380 V / 220 V (voltage can be adjusted)
• Frequency: 50-60 hz
• Warm-up time: 15-30 min. (180 ° C)
• Temperature stability: <± 3-5 ° C
• Maximum temperature: 250 ° C
• Ventilation capacity: 805-1677 m3 / h
• Engine power: 0.75 kW
• Circulation / air flow: vertically variable through holes in the walls
• Transport trolley
• Working dimensions: Width 1600 mm, Height 1800 mm, Depth 1400 mm
• Overall dimensions: Width 1900 mm, Height 2200 mm, Depth 1700 mm
