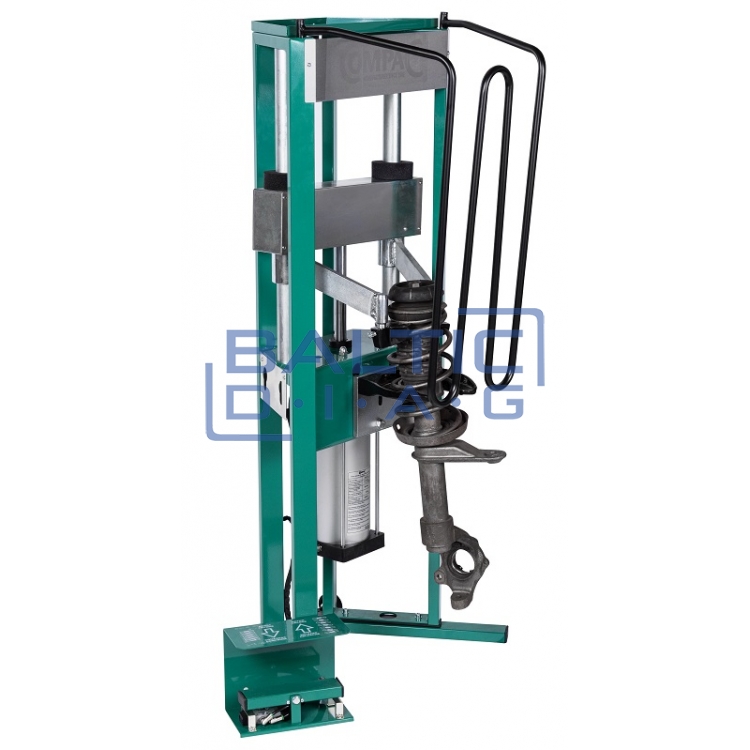

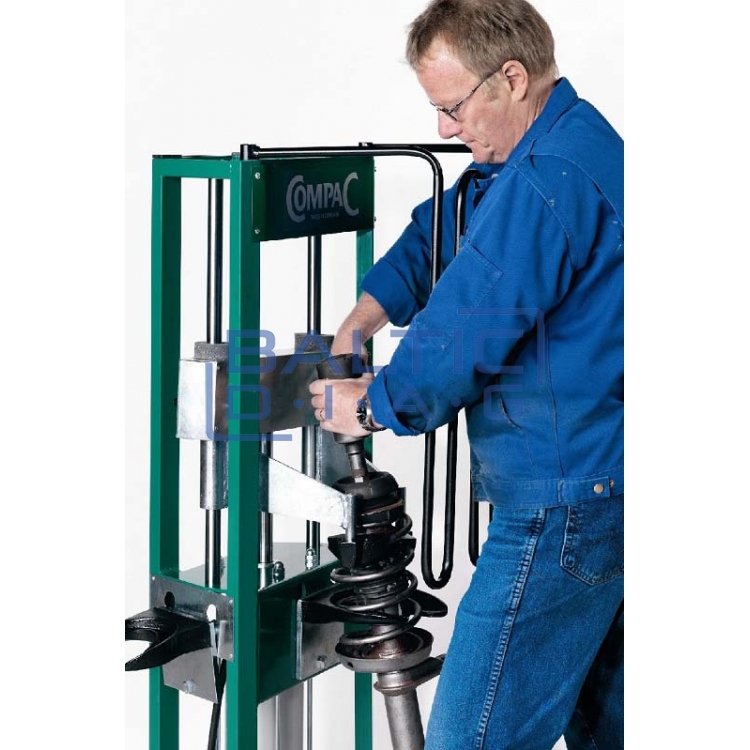

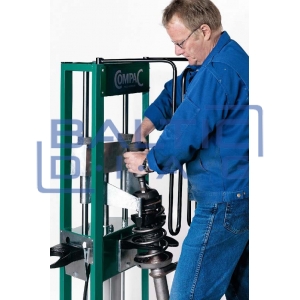

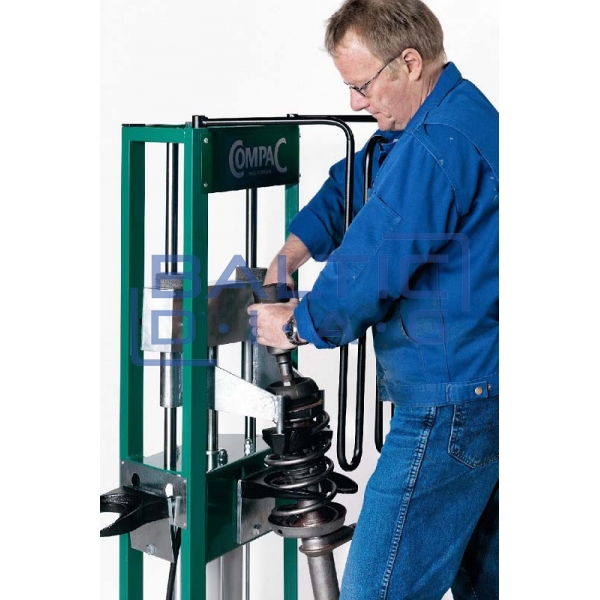

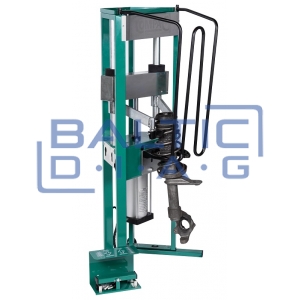

Pneumatic spring compressor CSC

Pneumatic spring compressor CSC

Pneumatic spring compressor CSC is a modern and reliable tool for fast and safe compression of car springs. Using reliable MCPherson compression technology, this device allows you to work accurately and efficiently with various types of springs. Ideal for professional workshops where speed, reliability and operator safety are valued.

Features:

• Uses McPherson spring compression technology
• The compressor is controlled by a foot pedal and compressed air
• Ideal choice for repairing small and large cars
• Protective shield - convenient and provides a suitable working position
• Moving universal clamps ensure accurate and vertical pressure.
• Easy access to the upper nut for convenient unscrewing, installation and dismantling.
• Safety locks can lock the adjustable pressure arms
• "Universal" adjustable clamps, suitable for almost all springs
• Suitable for conical springs.
• Ready for work in just a few seconds.

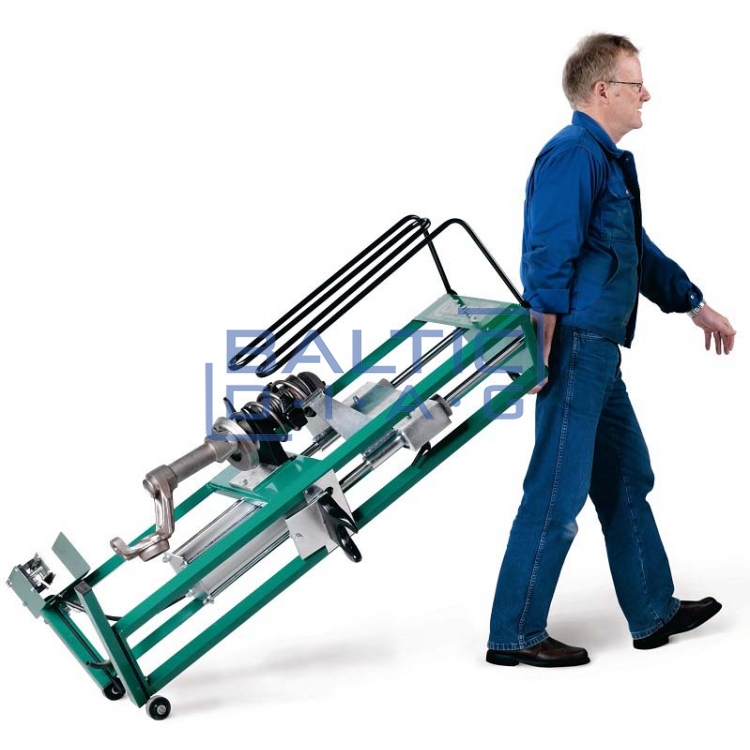

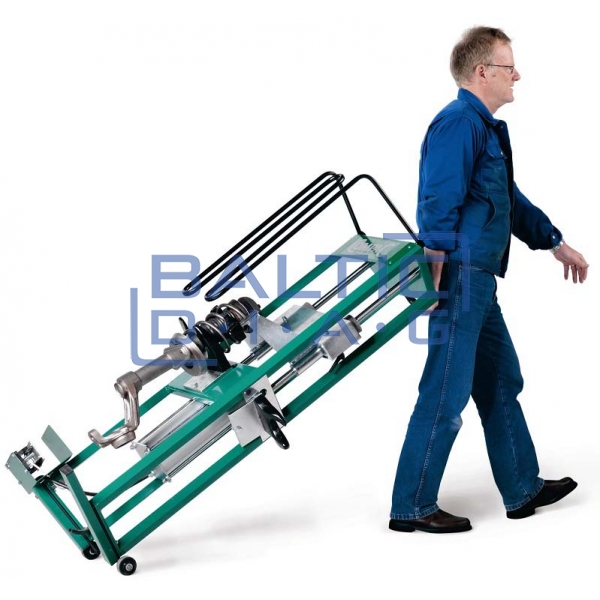

• Mobile - easy to move between different work sites.
• The set includes 2 spring holders (Ø78-125 mm and Ø125-200 mm).

Technical parameters:

• Working air pressure: 8 - 10 bar
• Cylinder stroke: 330 mm
• Maximum distance between clamps: 390 mm
• Weight: 61 kg
• Package height: 1450 mm
• Package length: 340 mm
• Package width: 540 mm
