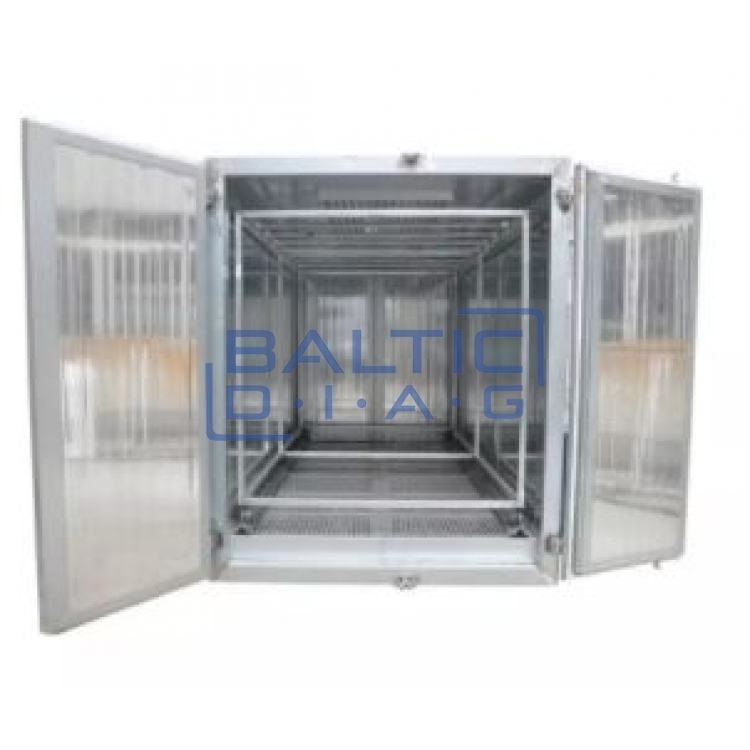

Electric powder coating furnace COLO 1732

Electric powder coating furnace COLO 1732

• The 3-meter-long curing furnace is intended for powder coating of larger parts or for the production of batches of small parts.
• Electric heating reduces operation and maintenance costs and also creates a cleaner environment.
• Powder coating furnaces are equipped with two trolleys as standard, including an upper loading frame and a lower trolley.
• It is an inexpensive manual transport system that allows you to carry heavy elements with low force and optimizes the use of the entire surface with high temperature bearings.

Features of a powder coating oven

• All parameters and functions are set on the PLC panel, ensuring a very accurate heating process.
• 100 mm thick stone wool insulation material maintains a constant temperature with a stability of less than 3 ℃.
• The high-level fan is ideal for circulating hot air flow, reaching any corner of the oven to ensure even and efficient heating.

Technical data:

• Power supply: electric - 30 kw
• Voltage: 380 V / 220 V
• Frequency: 50-60 hz
• Warm-up time: 15-30 min. (180 ° C)
• Temperature stability: <± 3-5 ° C
• Maximum temperature: 250 ° C
• Ventilation efficiency: 1131-2565 m3 / h
• Engine power: 1.5 kw
• Circulation / air flow varies vertically through holes in the walls
• Dimensions of working size: width 1650 mm, height 1700 mm, depth 3200 mm
• General dimensions: width 1950 mm, height 2100 mm, depth 3600 mm
