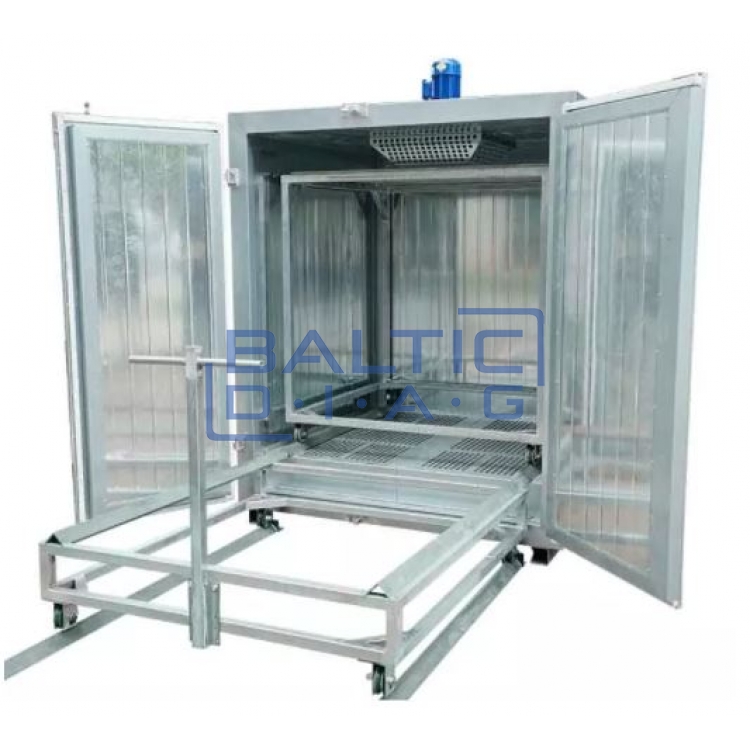

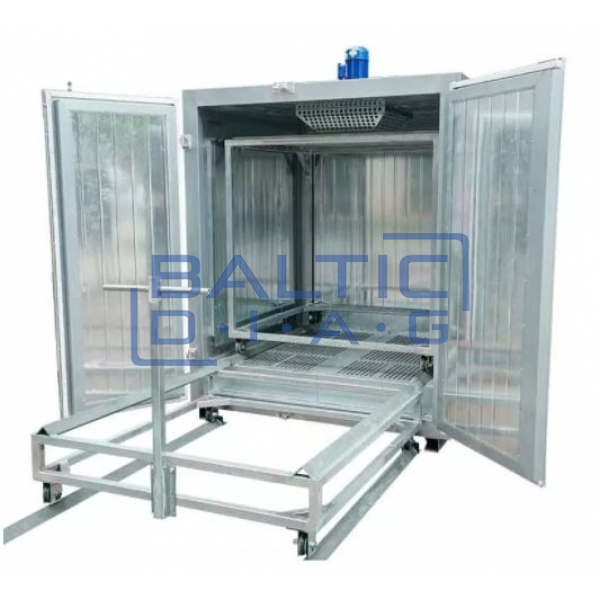

Electric industrial powder coating furnace COLO 1515

Electric industrial powder coating furnace COLO 1515

• The powder coating furnace uses PLC control technology to provide a precise heating process.
• Air flow systems encourage the air mixture to rise faster and heat evenly.
• The electric powder coating furnace ensures a clean environment and is a great tool for commercial and industrial powder lubrication.
• The PLC panel allows the operator to precisely set the desired temperature and heating time, as well as adjust the unit with the alarm function accordingly to ensure safety.
• A powerful 0.75 kW fan accelerates the flow of hot air, which results in quality curing and optimal treatment cycles.
• The insulation material is a 100 mm thick stone wool board, density 120 kg / m3, excellent heat storage efficiency.
• A pair of external and internal trolleys make it easy to load work parts.
• This affects the reduction of impurities from the floor in the chamber.

Technical data:

• Power supply: electric 18 kw
• Voltage: 380 V / 220 V (voltage can be adjusted)
• Frequency: 50-60 hz
• Warm-up time: 15-30 min. (180 ° C)
• Temperature stability: <± 3-5 ° C
• Maximum temperature: 250 ° C
• Ventilation capacity: 805-1677 m3 / h
• Engine power: 0.75 kW
• Circulation / air flow: vertically variable through holes in the walls
• Transport trolley
• Working dimensions: width 1500 mm, height 1500 mm, depth 1500 mm
• Overall dimensions: width 1900 mm, height 2200 mm, depth 1700 mm
