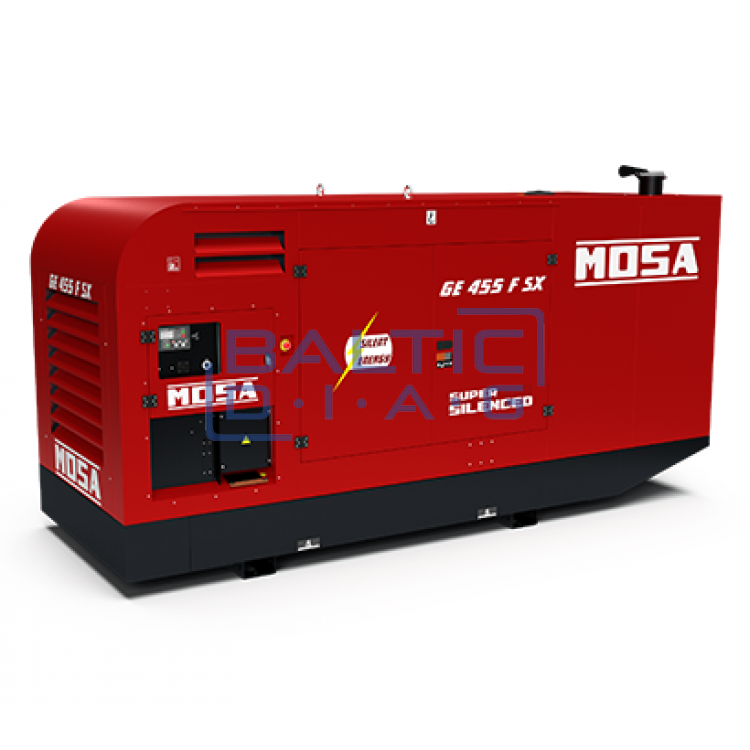

Diesel generator MOSA GE 455 FSX, 352 / 342 kW

Diesel generator MOSA GE 455 FSX, 352 / 342 kW

Manufacturer: Mosa, Italy.

Mosa GE 455 FSX is an extremely quiet diesel generator equipped with a common-rail diesel engine with electronic speed control and a closed ventilation system. Its design includes an integrated tubular frame, two central lifting eyes, special pockets for a forklift and a liftable cover at the rear of the generator that gives full access to the internal combustion engine. The 580 liter fuel tank provides 8.8 / 7.6 hours of continuous run time.

The closed housing and completely sealed generator base ensure that all liquids are contained. Therefore, no liquids that may spill from the engine or fuel tank will enter the environment.

The AVR control module ensures a very stable power supply, even for devices that have sensitive electronics, computers or other electrical tools. The control panel contains the sockets and generator controls, including the circuit breaker and motor protection device.

EAS models come pre-wired with an optional MOSA EAS auto start panel that plugs into the generator's front panel and allows the generator to be used as an emergency standby power source in the event of a mains power failure.

Also, it is possible to equip the generator together with the TCM remote control, which allows you to start/stop the generator engine at a distance of about 10 meters from the device.

This generator is suitable for a variety of applications including industrial sites, residential areas, construction sites or noise sensitive environments.

Manufactured in accordance with all necessary CE regulations.

Features:

• Possibility to purchase a generator with a Stage 3A internal combustion engine
• A completely sealed construction of the generator base, which ensures that no fluids used in the generator will enter the environment
• Oil extraction pump
• Fuel pre-filter, with water separator.
• A large service door provides much more convenient and better conditions for performing necessary generator service (changing air, oil, fuel filters).
• Two lifting loops.
• Control panel with digital controls, automatic or manual versions available.
• Extremely quiet.
• Complies with EU directives regarding noise and safety.

Technical data:

• Generated instantaneous electric power: 450 kVA / 360 kW / 400 V / 649.5 A | 440 kVA / 352 kW / 400 V / 635.1 A
• Continuous electrical power generated: 410 kVA / 328 kW / 400 V / 591.8 A | 400 kVA / 320 kW / 400 V / 577.4 A
• Continuous electrical power generated: 315 kVA / 252 kW / 230 V / 455.2 A
• Frequency: 50 Hz
• Efficiency coefficient: cos φ 0.8

Engine:

• Number of strokes of the internal combustion engine: 4 strokes
• Injection system: direct injection
• Engine air intake system: turbo
• Engine model: FPT (Iveco) C13 TE3A | FPT (Iveco) C13 TE2F (Stage 3A)
• Engine instantaneous power: 387 kW (526 Ag) | 377 kW (513 Hp)
• Engine continuous power: 352 kW (478.7 Ag) | 342 kW (465 Hg)
• Cylinders/displacement: 6 / 12880 cm3
• Speed: 1500 rpm
• Bore / stroke: 135 / 150 mm
• Compression ratio: 16.5:1
• Speed regulation mechanism: electronic

Fuel consumption:

• The generator works with 110% load: 98.5 l/h. | 97.4 l/h.
• The generator works with 100% load: 87.5 l/h. | 92.9 l/h.
• The generator works with 75% load: 72.5 l/h. | 81 l/hour
• The generator works with 50% load: 48.6 l/h. | 53 l/hour

Cooling System:

• Coolant capacity: 47.5 l | 67 l
• Fan air flow: 408 m3/min | 546 m3/min

Lubrication system:

• Oil tank capacity: 35 l

Starter:

• Starter power: 5.5 kW
• Starter supply voltage: 24 V

Generator:

• Synchronous, three-phase, self-excited, self-regulating, brushless generator.
• Instantaneous electrical power: 450 kVA
• Continuous electric power: 410 kVA.
• Generated electrical voltage: 380 – 415 V / AC
• AVR Model: Digit MEC-20
• Voltage regulation: +/- 0.5%
• Insulation class: H

General information:

• Fuel tank capacity: 580 l
• Operating time with (75% load): 8.5 hrs | 7.5 hours
• Starter battery: 24 V / 180 Ah
• IP protection class: IP44
• Measured noise levels: LwA 97 dB(A); LpA (72 dB(A) @ 7m)
• Guaranteed noise level: LwA 98 dB(A); LpA (73 dB(A) @ 7m)
• Equivalent class (ISO 8528): G3
• Weight, without liquids: 4240 kg
• CE standard

Dimensions:
