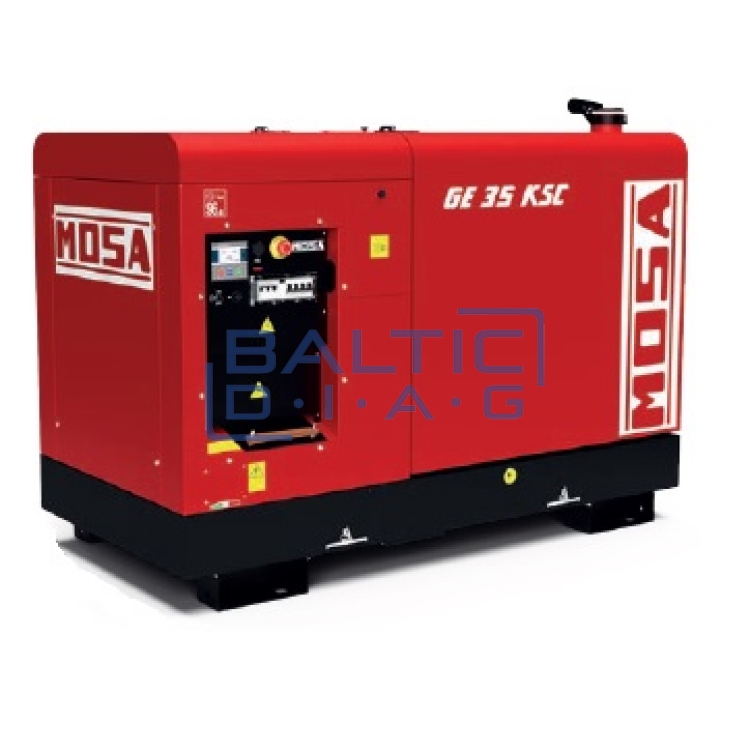

Diesel generator MOSA GE 35 KSC, 24 kW

Diesel generator MOSA GE 35 KSC, 24 kW

Manufacturer: Mosa, Italy

Mosa GE 35 KSC, silent diesel generator, which is equipped with a common-rail diesel engine with a mechanical speed support mechanism and a closed ventilation system. Its design includes an integrated tubular frame, a central lifting eye, special pockets for a forklift and a liftable cover at the rear of the generator that gives full access to the internal combustion engine. The 55 liter fuel tank provides 9.6 hours of continuous run time.

The closed housing and completely sealed generator base ensure that all liquids are contained. Therefore, no liquids that may spill from the engine or fuel tank will enter the environment.

The AVR control module ensures a very stable power supply, even for devices that have sensitive electronics, computers or other electrical tools. The control panel contains the sockets and generator controls, including the circuit breaker and motor protection device.

Also, it is possible to equip the generator together with the TCM remote control, which allows you to start/stop the generator engine at a distance of about 10 meters from the device.

This generator is suitable for a variety of applications including industrial sites, residential areas, construction sites or noise sensitive environments.

Manufactured in accordance with all necessary CE regulations.

Features:

• Automatic voltage regulation AVR, three-phase monitoring
• Rounded corners of the closed construction, for much easier rain run-off
• Closed base design to prevent spillage of generator fluids into the environment
• External caps for draining oil and coolant
• The side of the engine hood can be fully opened, which opens up a very wide and convenient access for servicing the generator
• Central lifting eye
• Digital control panel
• Forklift lifting cavities, the possibility of lifting the generator from all sides
• Complies with EU directives regarding noise and safety

Technical data:

• Generated stand-by electric power: 33 kVA / 26.4 kW / 400 V / 47.6 A
• Continuous electrical power generated: 30 kVA / 24 kW / 400 V / 43.3 A
• Continuous electrical power generated (single phase): 11 kVA / 230 V / 47.8 A
• Frequency: 50 Hz
• Efficiency coefficient: cos φ 0.8

Engine:

• Number of strokes of the internal combustion engine: 4 strokes
• Injection system: direct injection
• Engine air intake system: atmospheric
• Engine model: KOHLER - KDI 2504TM-30
• Engine instantaneous power: 31.1 kW (54.3 Ag)
• Engine continuous power: 28.2 kW (49.2 Ag)
• Cylinders / displacement: 4 / 2482 cm3
• Engine speed: 1500 rpm
• Piston diameter / stroke: 88 / 102 mm
• Compression ratio: 18.5:1
• Speed regulation mechanism: mechanical

Fuel consumption:

• The generator works with 110% load: 8.3 l/h.
• The generator works with 100% load: 7.5 l/h.
• The generator works with 75% load: 5.7 l/h.
• The generator works with 50% load: 4 l/h.

Cooling System:

• Coolant capacity: 9.1 l
• Fan air flow: 70.8 m3/min

Lubrication system:

• Oil tank capacity: 11.2 l

Electrical system:

• Starter power: 2.2 kW
• Starter supply voltage: 12 V

Alternator:

• Synchronous, three-phase, self-excited, self-regulating, brushless generator.
• Stand-by electrical power: 33kVA
• Continuous electrical power: 30 kVA.
• Generated electrical voltage: 380 – 415 V / AC
• AVR model: HVR-11
• Voltage regulation: +/- 1%
• Insulation class: H

General information:

• Fuel tank capacity: 55 l
• Operating time with (75% load): 9.6 hours
• Starter battery: 12 V / 80 Ah
• IP protection class: IP23
• Measured noise levels: LwA 92.7 dB(A); LpA (67.7 dB(A) @ 7m)
• Guaranteed noise level: LwA 94 dB(A); LpA (49 dB(A) @ 7m)
• Equivalent class (ISO 8528): G2
• Weight, without liquids: 847 kg
• CE standard
