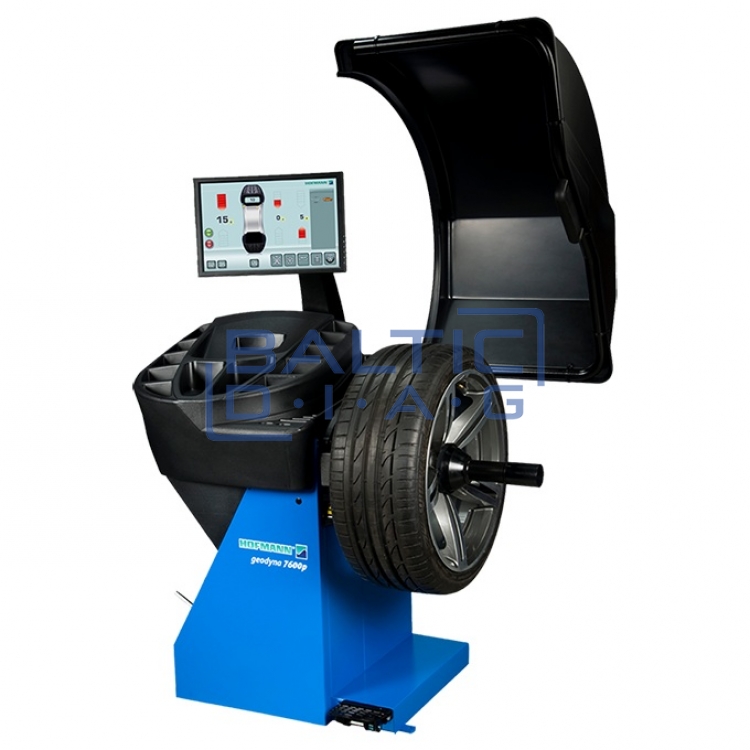

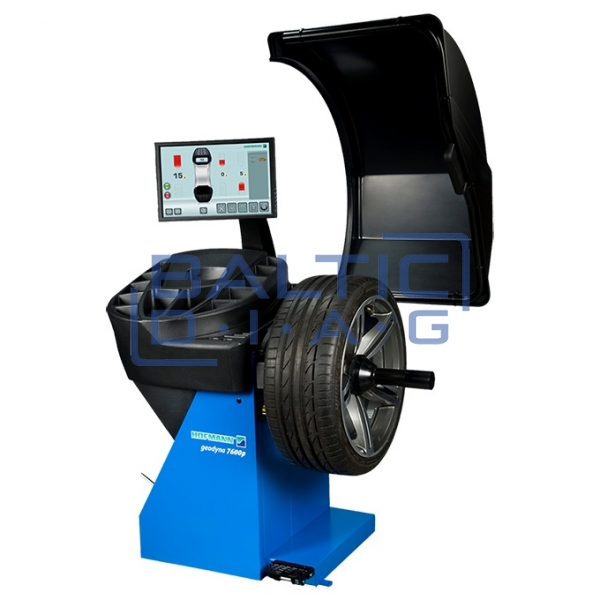

Wheel balancer with touch screen geodyna® 7600P Hofmann

Wheel Balancer with Touch Screen geodyna® 7600P Hofmann

Country of origin: Italy, warranty period - 24 months

The Hofmann® geodyna® 7600P is a semi-automatic wheel balancer designed for high-volume automotive workshops that require faster balancing cycles and flawless precision. Advanced features, such as smartSonar™ automatic rim width detection and the Power Clamp™ electromechanical clamping system, ensure consistent clamping force throughout the entire balancing process, enhancing workshop efficiency. The easyWeight™ laser system allows precise weight placement, reducing errors and eliminating the need for rebalancing. The geodyna® 7600P is an ideal solution for workshops seeking top-tier quality, efficiency, and ease of use.

Features:

• Touchscreen display – intuitive and easy-to-use menu.
• smartSonar™ – automatic rim width detection using ultrasonic sensors.
• Power Clamp™ – electromechanical clamping system ensures a consistent clamping force.
• easyWeight™ – laser technology for precise weight placement.
• Efficient balancing cycle – faster process with no need for rebalancing.
• Robust and stable design, built for intensive use.

Technical Specifications:

• Dimensions: 180 x 152 x 135 cm
• Manual rim diameter range: 8” - 32” (20.3 - 81.2 cm)
• Manual rim width range: 1” - 20” (2.54 - 50.8 cm)
• Maximum rim width: 20" (51 cm)
• Maximum wheel diameter: 42” (106.6 cm)
• Maximum wheel weight: 70 kg
• Net weight: 115 kg
• Power supply: 115V 1Ph 60Hz
• Semi-automatic rim diameter range: 8” - 25” (20 - 63.5 cm)
• Semi-automatic rim width range: 3” - 15” (7.6 - 38 cm)

EASYWEIGHT™

• This precise weight placement system eliminates guesswork and simplifies the balancing process. It uses laser technology to accurately indicate the exact location for weight application, ensuring perfect balance and highly accurate results.

EV READY

• Optimize wheel balancing for electric vehicles and other vehicles using the latest technology and precise engineering.

EZ-COLLETS MOBILE APP

• The EZ-Collets mobile app is a useful tool designed to help technicians find the appropriate clamping handle, flange, or quick-locking nut based on specific job requirements. By selecting the vehicle they are working on, technicians can use the app’s features to compare and evaluate the benefits of different tools.

MATCH MOUNTING

• This advanced technology optimizes tire mounting onto the rim, reducing the need for excessive wheel weights. It ensures better weight distribution, enhances driving performance, and minimizes vibrations.

POWER CLAMP™

• Using advanced electromechanical technology, this balancer features a powerful clamping system that consistently and reliably secures the wheel with constant force. This guarantees exceptional accuracy and repeatable results every time.

QUICKBAL™

• Designed for optimal workflow, this feature intelligently adjusts the number of revolutions based on each wheel’s specifications. Operating at maximum speed, it reduces balancing cycle time, ensuring fast and efficient results.

REPORT GENERATION

• Easily generate reports on the local network (additional hardware required) or save them as PDFs on a flash drive. This allows convenient sharing of detailed information with customers for documentation or reference purposes.

SEMI-AUTOMATIC DATA ENTRY

• The system features a convenient gauge arm, which simplifies data entry using easyALU™ assisted rim measurement technology. The technician simply touches the rim with the gauge arm, and the system automatically enters the rim dimensions and selects the appropriate balancing mode.

SMARTSONAR™

• This intelligent system uses sonar sensors to automatically detect the rim width, eliminating the need for manual input and reducing potential errors. By optimizing the process, it enhances efficiency and accuracy.

SPLIT WEIGHT MODE

• This feature ensures precise balancing while allowing the concealment of balancing weights behind the spokes, maintaining the aesthetic appeal and visual attractiveness of the wheels.

STOP IN POSITION

• By touching the screen, users can activate the system to automatically rotate the wheel to the precise weight application position. This convenient feature streamlines the process and enhances operational efficiency.

TOUCHSCREEN INTERFACE

• This system features a fast and intuitive interface, incorporating a large touchscreen display with easy-to-read large digits. Additionally, color-coded weight position indicators enhance speed, ease of use, and overall ergonomics, facilitating daily operations.
