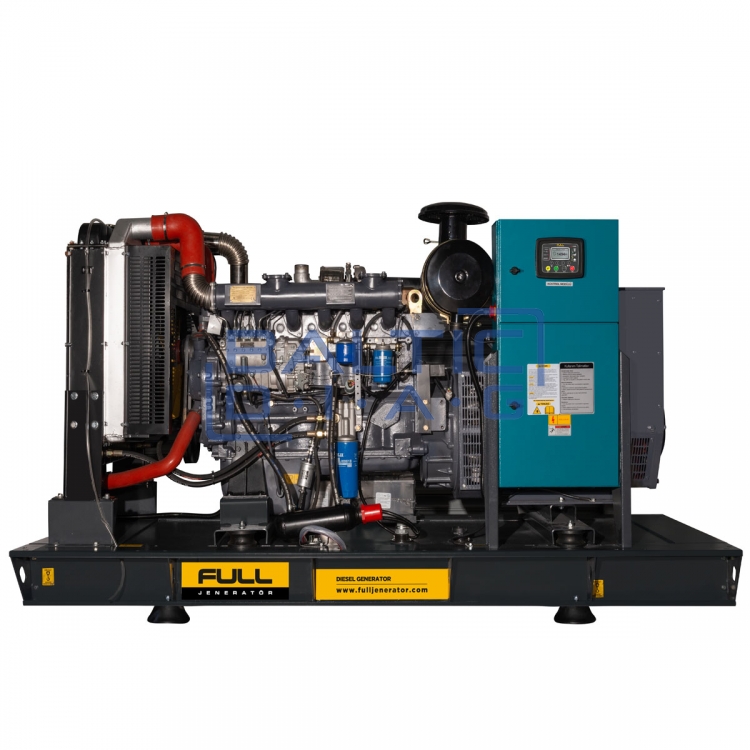

Diesel generator FULL generator FR 125, 90 kW

Diesel generator FULL generator FR 125, 90 kW

Manufacturer: Full generator, Turkey. Warranty: 12 months or 1000 working hours.

FULL Generator is a generator manufacturing company whose goal was to change established stereotypes about generators as a luxury item. Efforts have been made to prove that it is an indispensable and effective device in many sectors. Due to the company's extensive work experience and strong position in the market, these generators are sold in more than 50 countries in the world. In addition to standard gasoline generators that range from 3 kVA to 14 kVA and industrial diesel generators that range from 17 kVA to 2500 kVA. FULL generator manufacturers offer special solutions for each customer's needs and can provide all kinds of additional systems such as synchronization, remote monitoring. In order to ensure quality and customer satisfaction, the manufacturer pays special attention and therefore works only with well-known engine manufacturing companies such as PERKINS, CUMMINS, SD, YANGDONG, RICARDO and generator suppliers LEROY SOMER and STAMFORD. Each manufactured generator is thoroughly tested in accordance with all national standards.

https://youtu.be/E5tPCL3GIME?si=W107wBmYLQM98CDT

Advantages:

• Powerful and efficient RICARDO engine.
• 24 V starter and its battery pack.
• Changeable air, fuel and oil filters.
• Manual control.
• Tropical type cooling radiator.
• Flexible fuel hoses.
• Oil drain valve and extension hose.
• Industrial silencer and steel compensators.
• Service-free starter battery.
• Coolant heater.

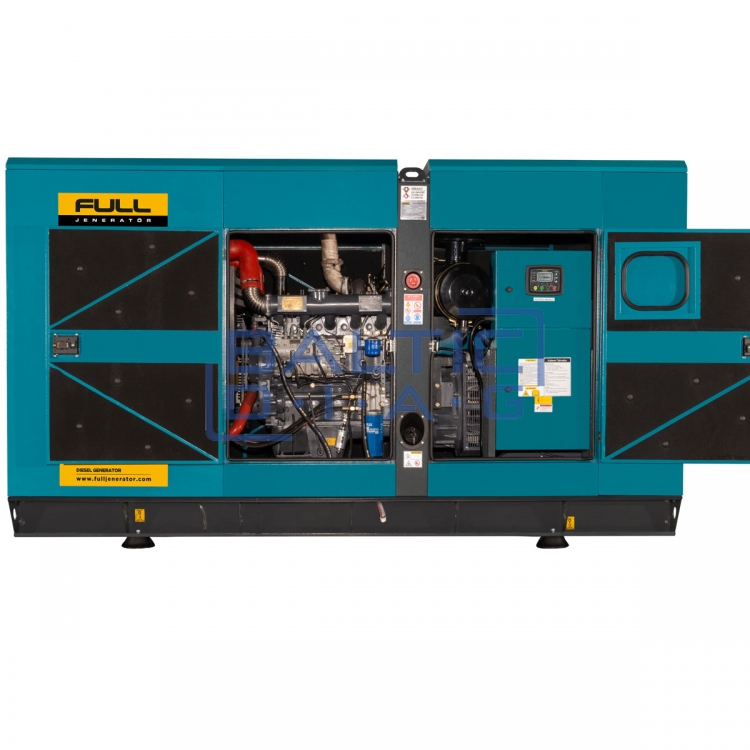

• Sound insulating construction and base:
• High-quality sound-insulating construction.
• Convenient design for transporting and lifting the generator.
• Modular design, connected with easily accessible screws and nuts.
• The door is locked.
• Transparent box, control panel for monitoring.
• Emergency stop button.
• Fuel tank installed in common.
• Anti-vibration mounts - engine/frame, frame/ground.

Technical specifications:

• Electricity produced (Stand-by): 125 kVA / 100 kW.
• Produced electricity (PRP): 113 kVA / 90 kW.
• Generated electric current: 162.72 A
• Generator engine: RICARDO
• Engine Model: R6105-ZLD
• Number of cylinders: 6 cylinders.
• Fuel injection system: Direct.
• Cylinder compression ratio: 16 / 1.
• Piston diameter: 110 mm.
• Piston stroke: 130 mm.
• Working volume of engine cylinders: 6750 cm3.
• Engine air intake: turbo.
• Motor speed: 1500 rpm.
• Engine oil volume: 18 liters.
• Engine output power (instantaneous): 110 kW / 147.45 Ag.
• Engine output (continuous): 100 kW / 134 Ag.
• Fuel type: Diesel.
• Management: mechanical.
• Generator cooling: liquid.
• Coolant capacity: 23 liters.
• Fuel consumption (full load): 25.6 l/h.
• Fuel consumption (at 75% load): 19.2 l/h.
• Fuel consumption (50% load): 12.8 l/h.

Generator:

• Generated frequency: 50 Hz.
• Power: 125 kVA.
• Generated electrical voltage: 230 / 400 V.
• Number of phases: 3 phases.
• Automatic Voltage Regulator (A.V.R.): AS440.
• Voltage regulation: +- 1%.
• Insulation class: H.
• Protection class: IP22 - IP23.
• Power ratio: 0.8.

Dimensions (closed generator):

• Weight: 1540 kg
• Length: 3150 mm
• Width: 1000 mm
• Height: 1700 mm
• Tank capacity: 220 l

Additional accessories are available:

• Extremely quiet construction
• Mobile generators
• Thermomagnetic CB, for automatic models
• Automatic fuel filling system
• Sync panel
• 3-pole and 4-pole ATS, automatic transfer connection
• Fuel, oil heater
• External fuel tank and automatic fuel filling system
• Moisture filter for fuel
• Remote monitoring and control system
