Diesel generator Arken ARK-B900 N5

Diesel generator Arken ARK-B900 N5

Manufacturer: Arken, Turkey. Warranty: 1 year or 1000 working hours.

Arken is a company founded in 2012 with the motto "Life goes on". Arken generators have the ability to produce the required diesel generator according to individual needs, with a power from 2 kVA to 2750 kVA. These generators are manufactured in an area of 14000 m2 in Arnavutköy and can offer the best generator solutions according to customer or project requirements. In addition to its central factory, Arken has a very wide, global network, where it realizes its production generators and other energy solutions.

"Baudouin" is one of the brands known as reliable manufacturers of marine engines. It is a preferred brand due to its well-earned durability, high functional quality and principle of operation. The Baudouin brand, which has become one of the world-class brands, has been manufactured according to marine standards for the most suitable function. For this reason, it is known as one of the brands at the top of the list for meeting environmental standards in the marine field. These engines, which are manufactured to marine standards, are designed to be very safe, ensure the highest quality and purposeful design. The Baudouin motor is the safest motor choice, according to its operating principle, suitable for a wide range of areas. All components related to engine production are prepared using the latest technology tools.

Technical parameters:

• Instantaneous electricity generated (Stand-by): 910 kVA / 728 kW
• Permanent electricity generated (Prime power): 825 kVA / 660 kW
• Electrical voltage produced: 400 V / 230 V AC
• Power factor: Cos φ 0.8

Diesel engine parameters:

• Manufacturer: Baudouin
• Engine power: 725 kW
• Engine model: 12M26G900/5
• Number of cylinders: 12 cylinders
• Number of valves: 48 valves
• Number of engine strokes: 4 strokes
• Engine speed: 1500 rpm
• Displacement: 31800 cm3
• Aspiration: forced, turbine
• Cylinder bore x stroke: 150 x 150 mm
• Compression ratio: 15.7:1
• Cooling method: coolant
• Coolant system capacity: 191 l
• Generator control: electronic
• Electrical control system: 24 V DC
• Battery charging current: 55 A
• Oil capacity: 109 l
• Cooling air flow PRP: 1450 m3/min
• Starter power: 10 kW
• Battery capacity: 4 x 105 Ah
• Fuel consumption with (110%) load: 190.8 l/h
• Fuel consumption with (100%) load: 173.7 l/h
• Fuel consumption with (75%) load: 133.1 l/h
• Fuel consumption with (50%) load: 90.8 l/h

Generator mechanism:

• Generator manufacturer: Nekra
• Generator model: ARK 6D
• Voltage: 400 V / 230 V
• Frequency: 50 Hz
• Number of phases: 3 phases
• Number of poles: 4 poles
• Connection type: star
• Bearings: single
• Insulation class: H
• Protection class: IP23
• Control system: self excited
• Voltage regulation: Electronic AVR
• Voltage regulation ranges: +-1%
• THD: < 5%

Control panel:

• Standards: ISO8528-4
• Protection class: IP44
• Control unit: ARK700E
• Emergency stop button
• Battery charger 5 Amp
• Generator controller
• Control relays
• Connection bus (under panel)

General information:

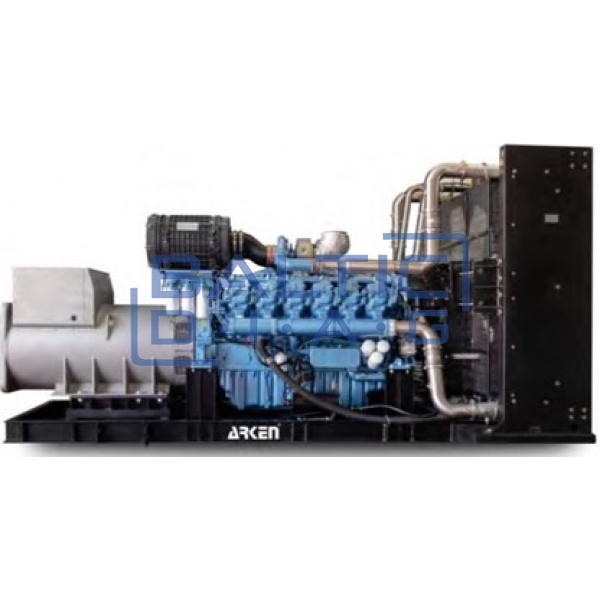

• Open generator length: 4290 mm
• Open generator width: 2020 mm
• Open generator height: 2311 mm
• Open generator weight: 6755 kg
• Open generator fuel tank capacity: 1500 l
• Open Generator Uninterruptible Operating Time: 8.64 hrs.

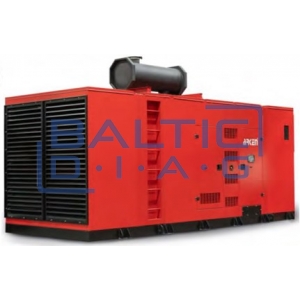

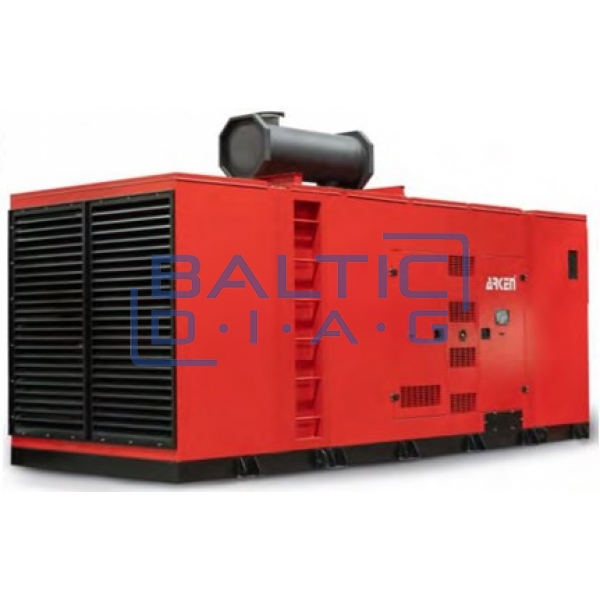

• Closed generator length: 5960 mm
• Closed generator width: 2370 mm
• Closed generator height: 2611 mm*
• Closed generator weight: 8395 kg
• Closed generator fuel tank capacity: 1500 l
• Closed generator uninterrupted working time: 8.64 hours.

* Height does not include muffler height

Additional ordered components:

• 3P electrical circuit breaker
• 3P automatic transfer switch (ATS) module

Product prices:

• Open generator: 87950.00 Eur + VAT
• Closed generator with canopy: 104929.00 Eur + VAT
