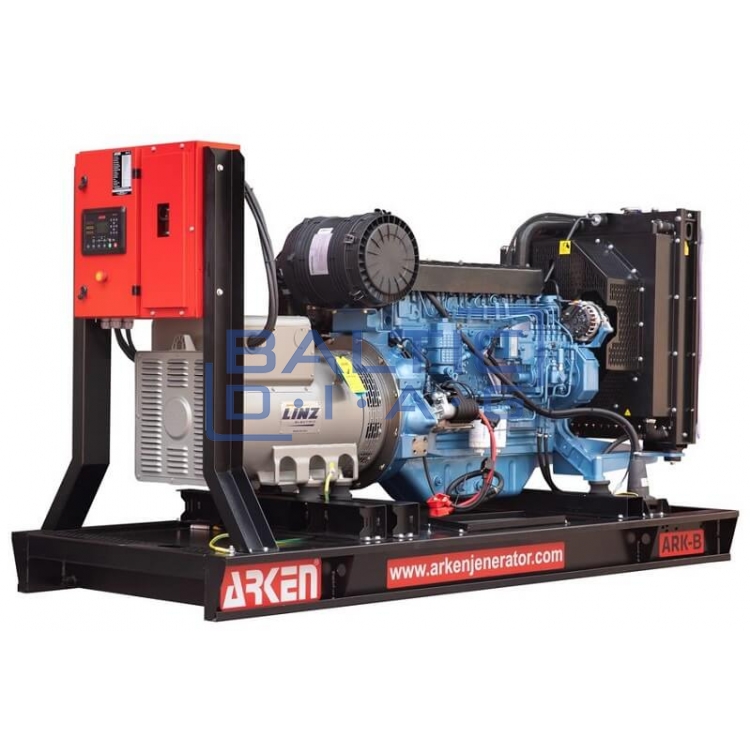

Diesel generator Arken ARK-B75 N5, 52,8 kW
Diesel generator Arken ARK-B75 N5, 52,8 kW

Diesel generator Arken ARK-B75 N5, 52,8 kW

  • SKU: BD16638
10,393.90 €

Prices shown include tax

Send Message

Description

Diesel generator Arken ARK-B75 N5, 52,8 kW

Manufacturer: Arken, Turkey. Warranty: 1 year or 1000 working hours.

Arken is a company founded in 2012 with the motto "Life goes on". "Arken" generators have the ability to manufacture the required diesel generator according to individual needs, with power from 2 kVA to 2750 kVA. These generators are manufactured in an area of 14000 m2 in Arnavutköy and can offer the best generator solutions according to customer or project requirements. In addition to its central factory, Arken has a very wide, global network, where it realizes its production generators and other energy solutions.

"Baudouin" is one of the brands known as reliable manufacturers of marine engines. It is a preferred brand due to its well-earned durability, high functional quality and principle of operation. The Baudouin brand, which has become one of the world-class brands, has been made according to marine standards with the most suitable function. For this reason, it is known as one of the brands at the top of the list for meeting environmental standards in the marine field. These engines, which are manufactured to marine standards, are designed to be very safe, ensure the highest quality and purposeful design. The Baudouin motor is the safest motor choice, according to its operating principle, suitable for a wide range of areas. All components related to engine production are prepared using the latest technology tools.

Technical parameters:
  • Generated instantaneous electrical energy (Stand-by): 73 kVA / 58.4 kW
  • Permanent electricity generated (Prime power): 66 kVA / 52.8 kW
  • Electrical voltage produced: 400 V / 230 V AC
  • Power factor: Cos φ 0.8
Diesel engine parameters:
  • Manufacturer: Baudouin
  • Engine power: 60 kW
  • Engine model: 4M10G70/5
  • Number of cylinders: 4 cylinders
  • Number of valves: 8 valves
  • Number of engine strokes: 4 strokes
  • Engine speed: 1500 rpm
  • Working volume: 4087 cm3
  • Air intake system: forced, turbine
  • Piston diameter x stroke: 105 x 118 mm
  • Compression ratio: 17.5:1
  • Cooling: water
  • Coolant system capacity: 17.9 l
  • Generator control: electronic
  • Electrical control system: 12 V DC
  • Battery charging current: 80 A
  • Oil capacity: 13 l
  • Cooling air flow: 146 m3/min
  • email starter power: 3.8 kW
  • Battery pack: 1 x 75 Ah
  • Fuel consumption with (110%) load: 16.67 l/h
  • Fuel consumption with (100%) load: 15 l/h
  • Fuel consumption with (75%) load: 11.1 l/h
  • Fuel consumption with (50%) load: 7.7 l/h
Generator mechanism:
  • Generator manufacturer: Nekra
  • Generator model: ARK 224F
  • Voltage: 400 V / 230 V
  • Frequency: 50 Hz
  • Number of phases: 3 phases
  • Number of poles: 4 poles
  • Connection type: star
  • Bearings: single
  • Insulation class: H
  • Protection class: IP23
  • Arousal: spontaneous
  • Voltage regulation: Electronic AVR
  • Voltage regulation ranges: +-1%
  • THD: < 5%
Control panel:
  • Standards: ISO8528-4
  • Protection class: IP44
  • Control module: ARK700E
  • Emergency stop switch
  • Battery charger 5 Amp
  • Generator controller
  • Control relays
  • Connector bridge (under panel)
General information:
  • Length of open generator: 2150 mm
  • Width of open generator: 1100 mm
  • Height of open generator: 1150 mm
  • Open generator weight: 1084 kg
  • Open generator fuel tank capacity: 174 l
  • Open Generator Uninterrupted Working Time: 11.66 hrs.
  • Closed generator length: 2910 mm
  • Closed generator width: 1160 mm
  • Closed generator height: 1720 mm
  • Closed generator weight: 1445 kg
  • Closed generator fuel tank capacity: 174 l
  • Closed generator uninterrupted working time: 11.66 hours.
  • Closed generator noise level: 71.8 dB(A) @ 7m
Additional ordered components:
  • 3P circuit breaker: EUR 100.00 + VAT
  • 3P automatic reserve activation (ATS) module: EUR 250.00 + VAT
Product prices:
  • Open generator: EUR 8590.00 + VAT
  • Closed generator: EUR 10,000.00 + VAT
