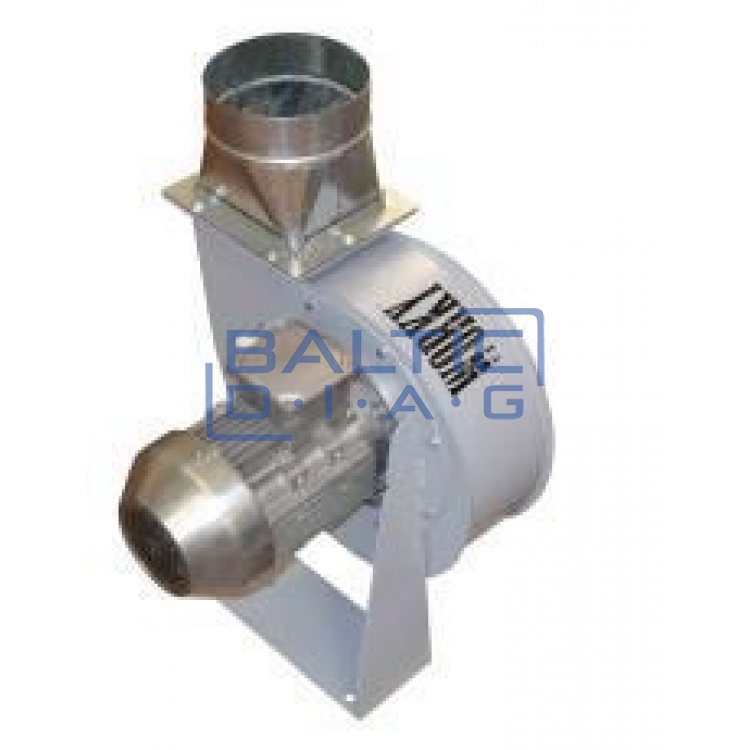

Centrifugal fan for collection systems GSA

The price is for the GSA0.5 model

SKU: BD12810

699.00 €

WORKY

Prices shown include tax

Add to Cart

Send Message

Description

Centrifugal fan for collection systems GSA

Description:

Centrifugal fan for exhaust gas collection systems. The fan is made of durable sheet steel painted with epoxy powder paint with different types of impellers to create airflows ideal for smoke extraction systems.

The GSA0.5-GMR has a special tributary flange for connecting the coil.

Available models:

Models	Intake/exhaust diameter, mm	Fan power, kW	Fan voltage, V
GSA0,5	125	0,35	400V/230V(3ph)
GSA0,5-GMR	125	0,35	400V/230V(3ph)
GSA0,5M	125	0,35	230V(1ph)
GSA1	160	0,75	400V/230V(3ph)
GSA1M	160	0,75	230V(1ph)
GSA1,5	160	1,1	400V/230V(3ph)
GSA1,5M	160	1,1	230V(1ph)
GSA2	200	1,5	400V/230V(3ph)
GSA2M	200	1,5	230V(1ph)
GSA3	200	2,2	400V/230V(3ph)
GSA3M	200	2,2	230V(1ph)
GSA4	250	3	400V/230V(3ph)
GSA5,5	315	4	400V/230V(3ph)
GSA7,5	355	5,5	400V/230V(3ph)
GSA10	400	7,5	400V/230V(3ph)
GSA15	400	11	400V/230V(3ph)
GSA20	450	15	400V/230V(3ph)
GSA25	500	18,5	400V/230V(3ph)
