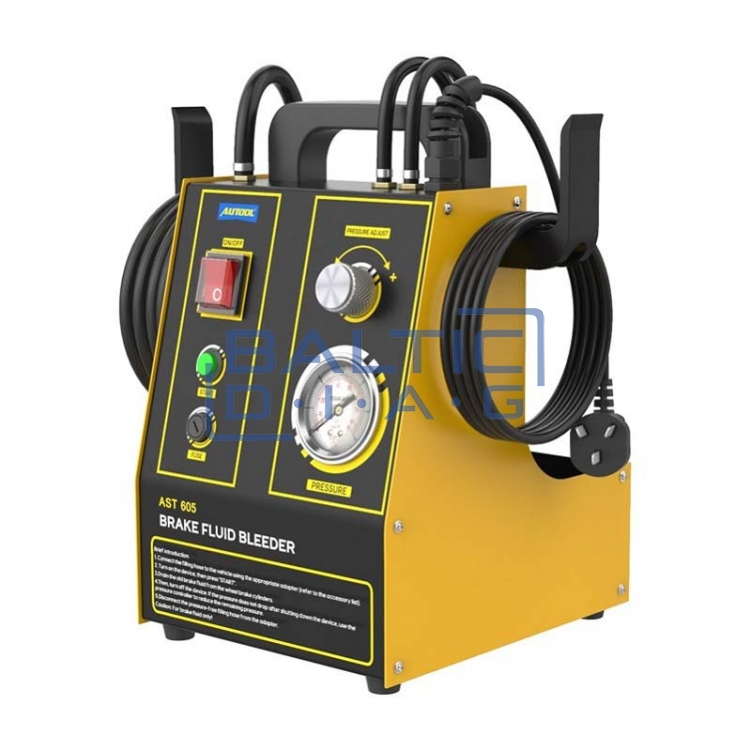

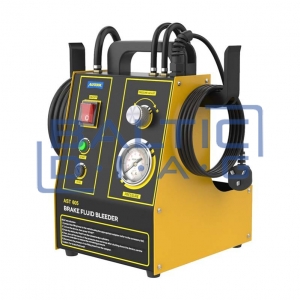

Brake system fluid replacement device Autool AST605

Brake system fluid replacement device Autool AST605

Autool AST605 is a pulsating type brake system fluid replacement device that helps prevent air bubbles from forming in the system when filling the brake system manually. At the same time, this device has a powerful fluid extraction function, which helps speed up system fluid replacement. The device has a special type of air supply connection, before which there is waste air filtration, moisture is extracted from it, so unnecessary and harmful moisture does not enter the system and a high quality result is ensured.

Features:

• Integrated pressure monitoring system - brake system fluid replacement device, has a built-in pressure gauge. You will also be able to adjust the system pressure in the range from 0.7 bar to 2.5 bar. If the device fails to reach the set pressure or if it draws in outside air, it simply shuts down. The liquid collection container can be stored inside the device, which makes it easier to carry the device.
• Very wide application - Autool AST605 is adapted to work with European, American and Asian cars, so it can practically be said that it is applicable to almost all car models. Also, the device works with DOT 3, DOT 4, DOT 5.1 brake fluids.
• High utility - this device is very easy to use, it can be operated freely by one person and it is easy to change the brake fluid in the brake system. With proper preparation of the working environment, you will be able to work on all 4 brake calipers at the same time.
• Optimized performance – comparing this device to the traditional brake change method, you will be able to avoid air bubbles in the system during filling. Also, Autool AST605 has a powerful liquid extraction function, with the help of which you will be able to quickly extract the old, used liquid from the system.
• Long, 3-year warranty

Note:

The device is sold from the factory with a set working pressure of 1-1.5 bar. This is done so that the fluid storage container is not deformed when changing the brake fluid and thus ensures the tightness of the sealing ring. If necessary, it is possible to adjust the system pressure of the device, change the liquid at a lower working pressure. It is important to pay attention not to work with too much pressure, because in this way you can damage the master brake cylinder.

Technical parameters:

• Supply voltage: 220 V
• Outlet pressure: 0.7 - 2.5 bar
• Adjustable outlet pressure: yes
• Liquid filling flow rate: < 1.5 l/min

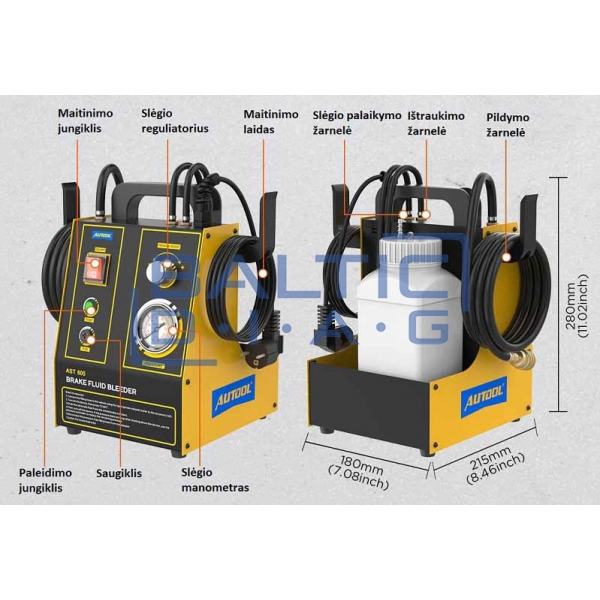

• Dimensions: 180 x 215 x 280 mm
• Package dimensions: 230 x 285 x 370 mm
• Package weight: 5.3 kg

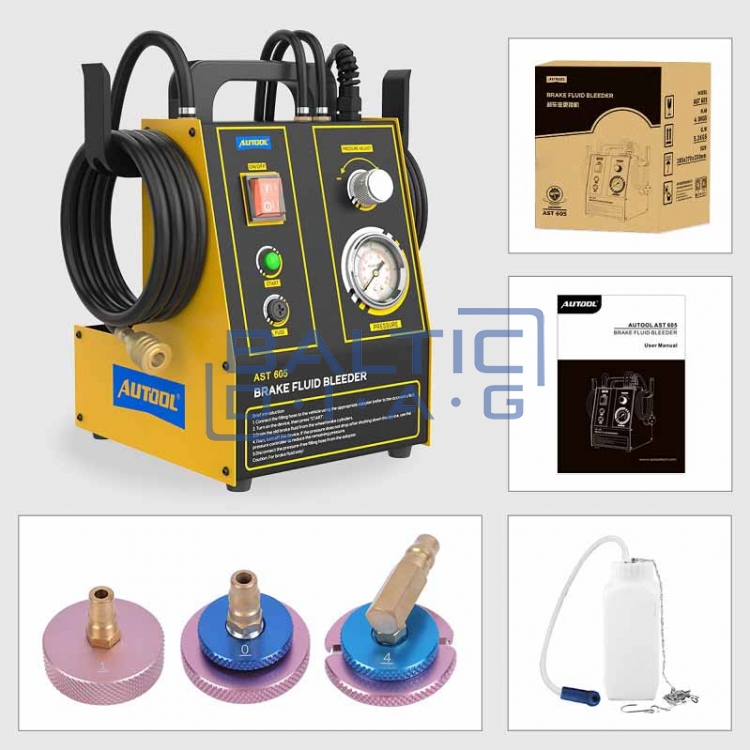

The set includes:

• Autool AST605 device
• Used liquid collection capacity
• 3 pcs. different connections
• User manual
