Battery-operated crimping pliers 60 kN

Battery-operated crimping pliers 60 kN

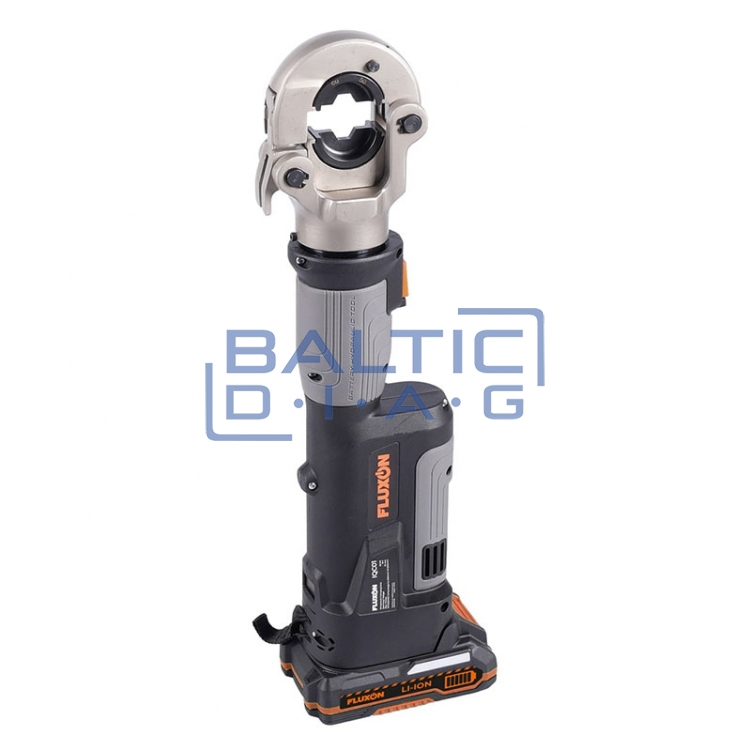

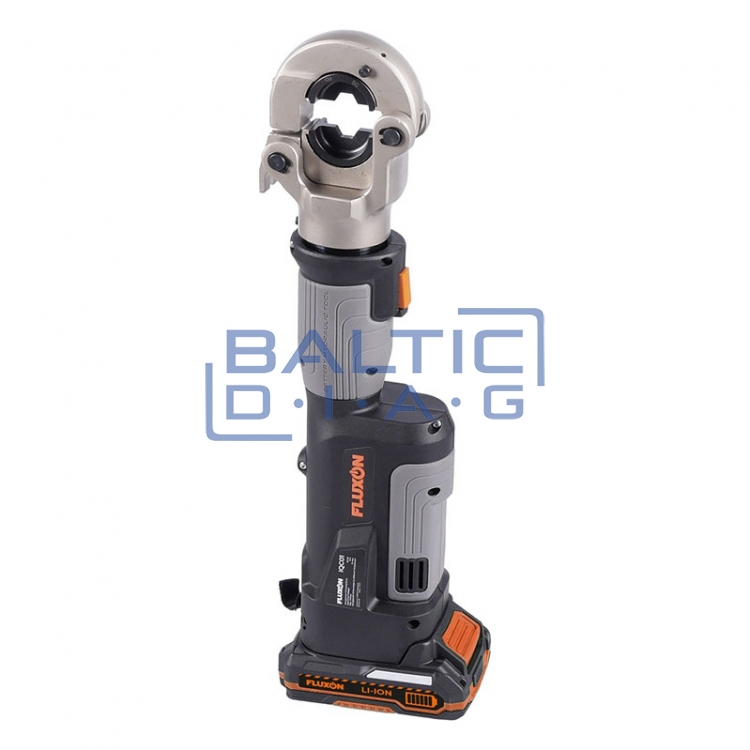

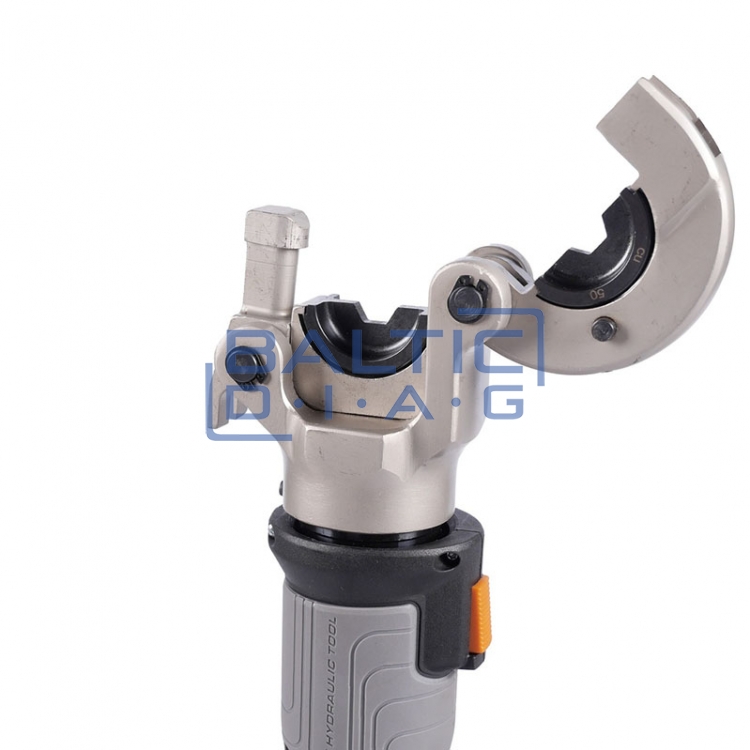

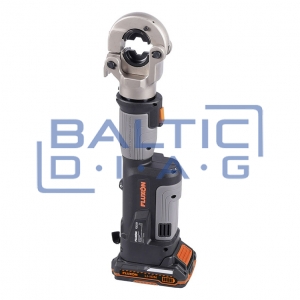

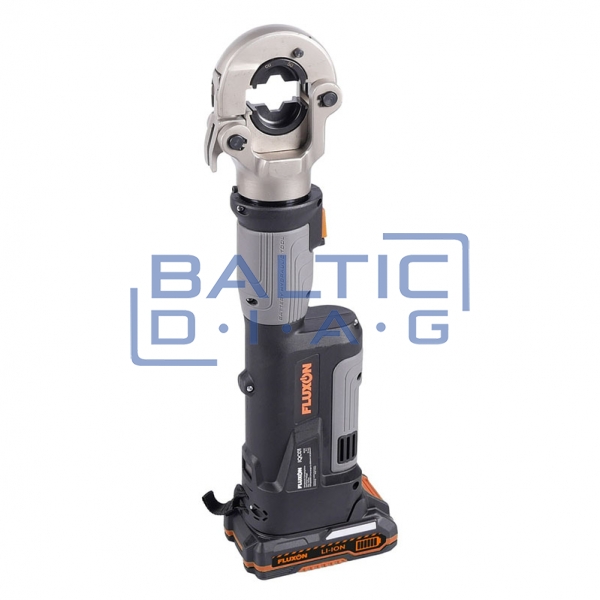

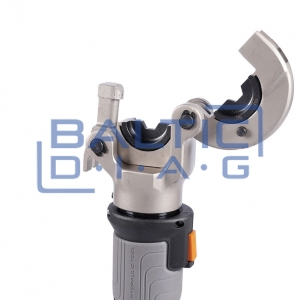

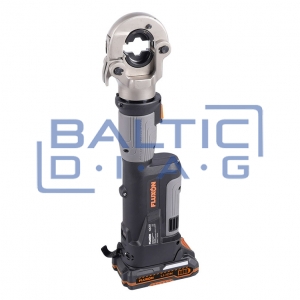

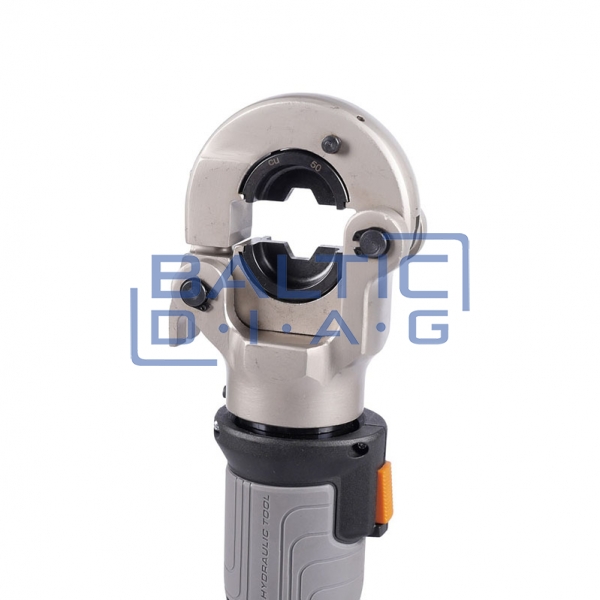

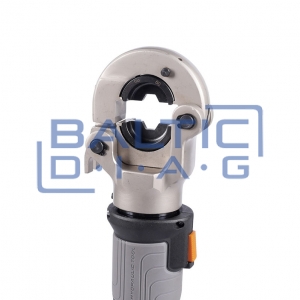

These Fluxon battery crimping pliers are a versatile tool that makes crimping cable lugs much easier. These pliers are equipped with LED lights for monitoring the charge level of the batteries, control with one button, a rotating head that can turn 180 °, so this tool will make your work much easier. It features automatic crimper retraction for quick and easy crimping, and you can change crimping tips quickly and effortlessly. The device uses CH15 type oil, has a 17 mm clamp stroke and a clamping force of 60 kN. It can provide 300mm2 crimp capability for Al type cables and 240mm2 crimp capability for other cables. The compression cycle takes 2.5~4 seconds on average, depending on the size of the cable. The pliers come with crimping tips with diameters from 16mm2 to 300mm2, so you'll have practically all the crimping sizes you need.

Technical parameters:

• Stroke: 17 mm
• Working ambient temperature: -10 ~ 40 °C
• Supply voltage: 18 V, DC
• Clamping power: 60 kN
• Battery pack: 18 V / 2.0 Ah
• Clamping sections: 300 mm2 / Al - 240 mm2
• Battery type: Li-ion
• Charging time: ± 40 min
• Clamping time: 2.5 ~ 4 sec. (depending on cable size)

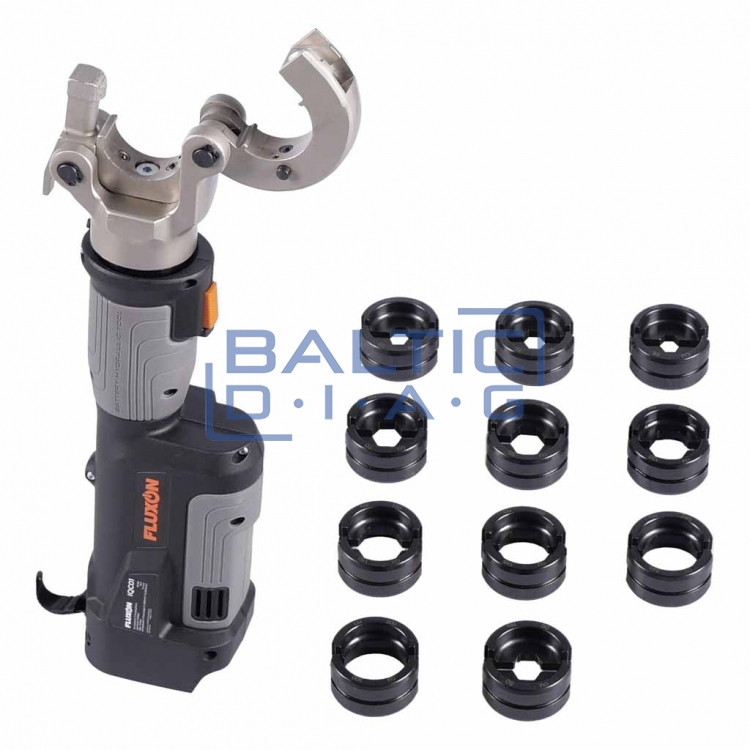

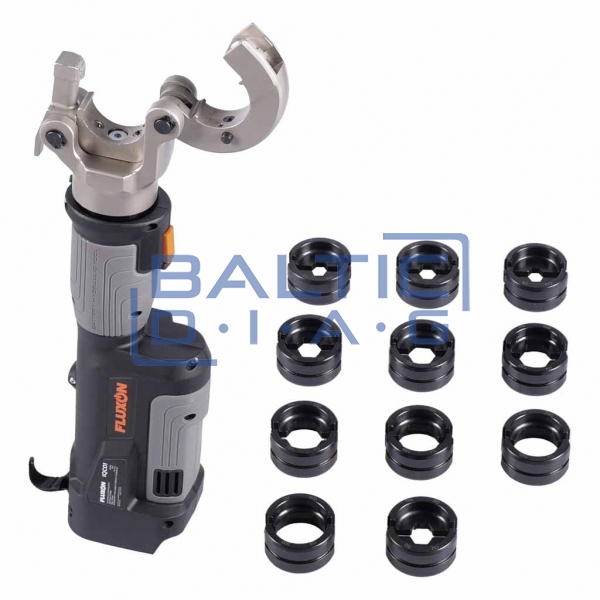

• Press-on nozzles: 16; 25; 35; 50; 70; 95; 120; 150; 185; 240; 300 mm2
• Oil capacity: 0.06 l
• Oil type: CH15
• Charger voltage: 230 V / 2.3 A
• Length: 400 mm
• Width: 75 mm
• Height: 120 mm
• Weight: 3.58 kg

The set includes:

• Cordless crimping pliers

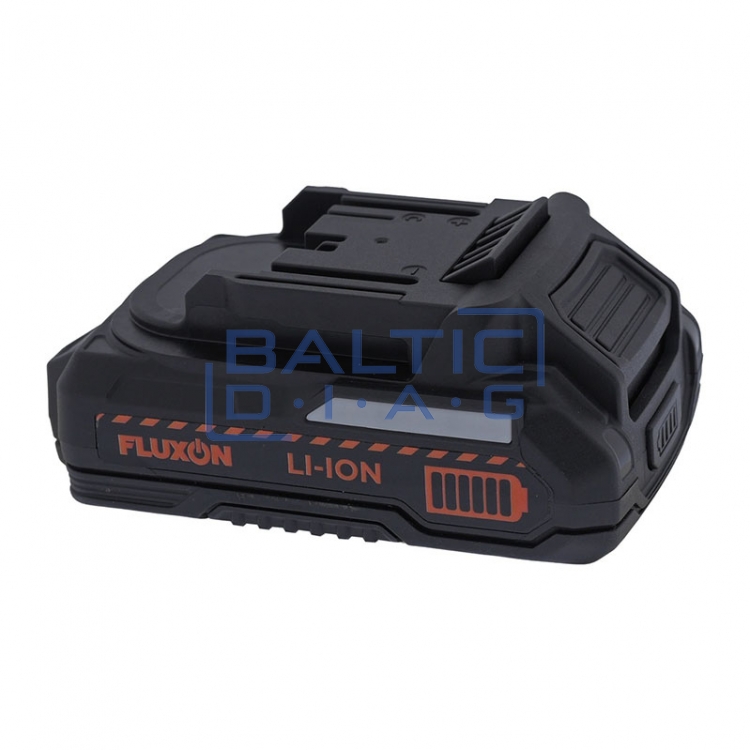

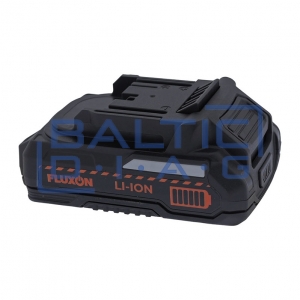

• Batteries 18 V, 2.0 Ah x 2 pcs.

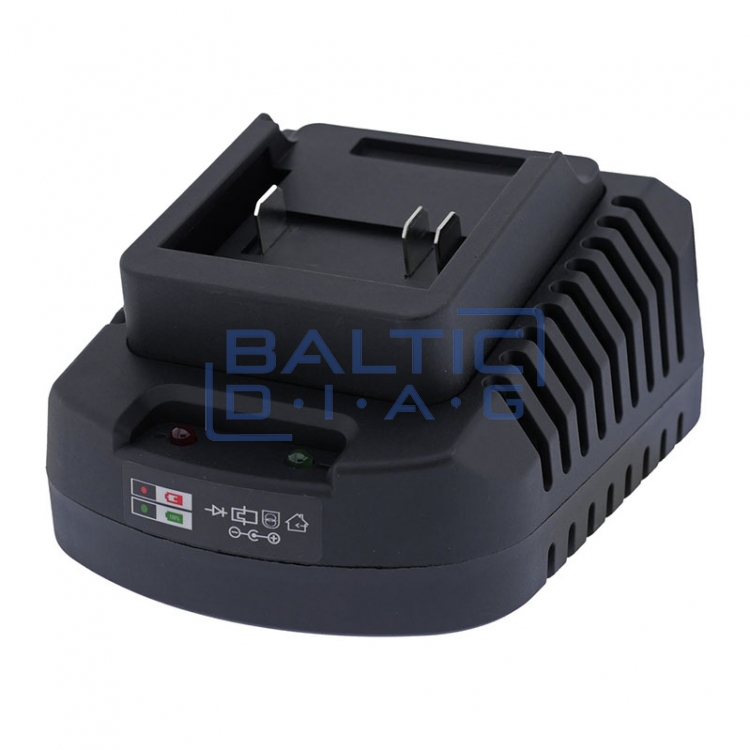

• Battery charger for batteries
• O-type packings
• Shoulder strap

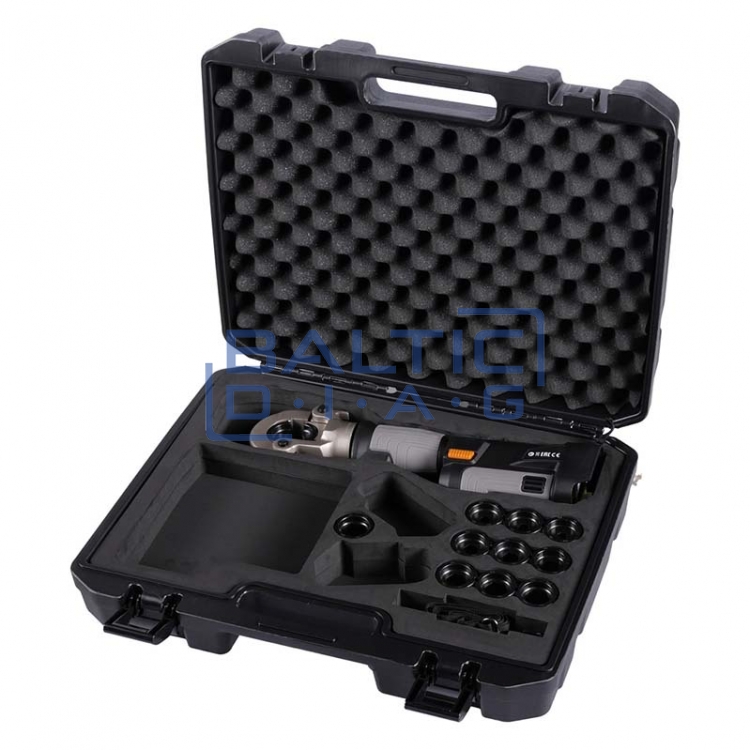

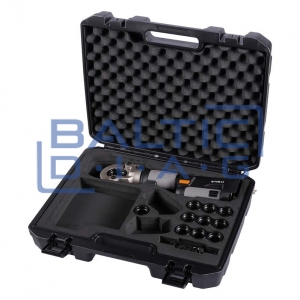

• Durable equipment case
