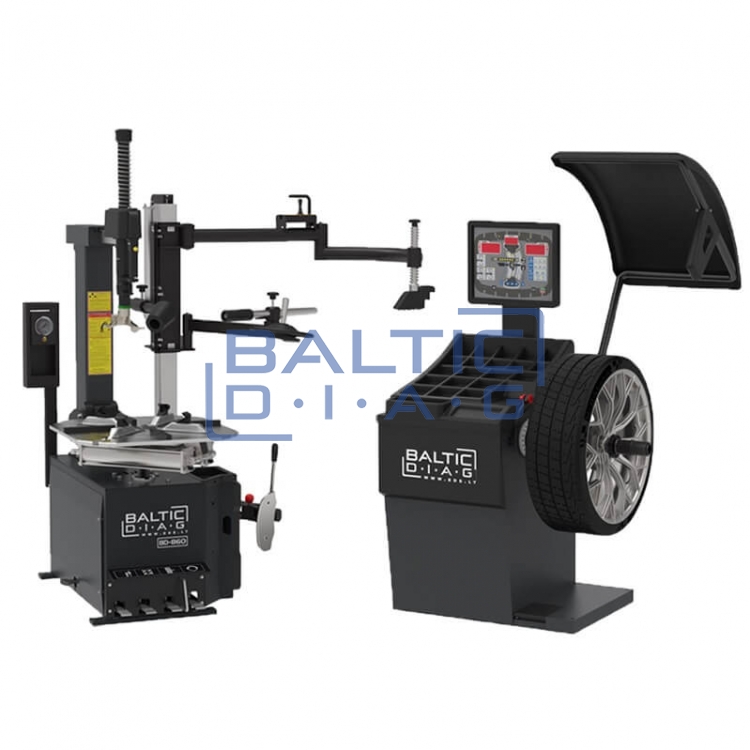

Automatic Tire Mounting and Automatic Wheel Balancing Machine Set BD-670 + BD-860

Automatic Tire Mounting and Automatic Wheel Balancing Machine Set BD-670 + BD-860

Country of Origin: China, Warranty Period: 24 months

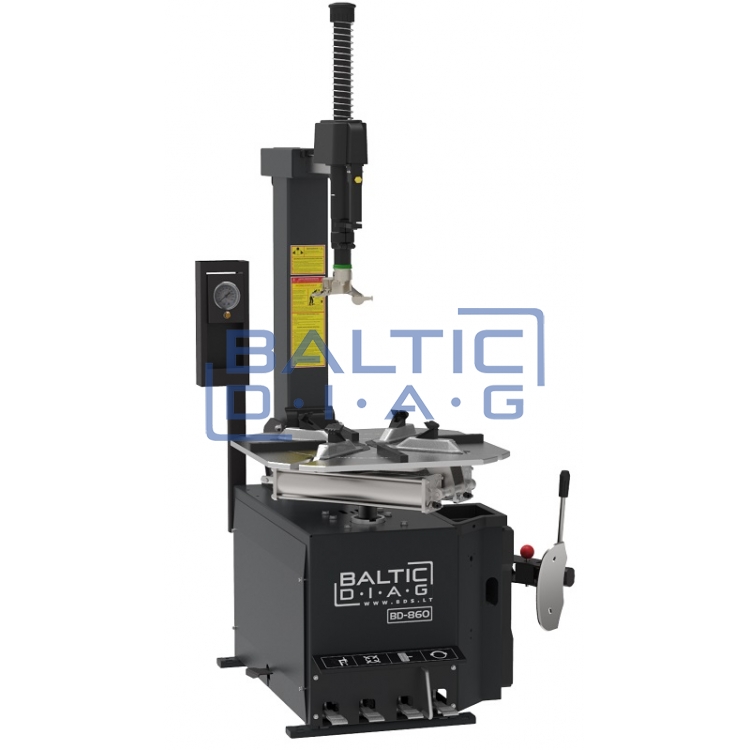

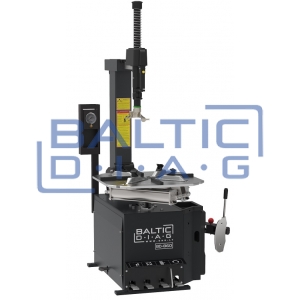

Automatic Tire Mounting Machine BD-860

Features:

• Steel Mounting Head: Ensures durability and is equipped with replaceable plastic covers to protect rims from scratches.
• Self-Centering Rim Clamps: Uses two pneumatic cylinders to securely and reliably lock rims in place.
• Tire Inflation Mechanism: Independent tire inflation system equipped with its own manometer, inflation hose, and inflation button.
• Pneumatic Position Lock for Mounting Head: Allows the mounting head to tilt back or move to the required position using a foot pedal. Once positioned correctly, it can be locked horizontally and vertically with a single button press.
• Filter and Pressure Regulator Set: High-quality pressure regulator with a water collector and an equipment lubrication container.
• Auxiliary Tire Mounting Arm: A highly durable auxiliary arm featuring bead pressing rollers, a tire lifting disc, and a bead pressing head.

Technical Specifications:

• Internal rim diameter: 15” – 28”
• External rim diameter: 13” – 26”
• Maximum wheel diameter: 1200 mm
• Maximum wheel width: 3” – 15” (76 – 380 mm)
• Bead breaking force: 2700 kg (27000 N)
• Operating pressure: 8 – 10 bar
• Two mounting speeds
• Electric motor power: 1 kW
• Power supply: 380 V / 50 Hz / 3-phase

Standard Accessories:

• Bucket for tire mounting paste x 1 pc
• Tire mounting paste brush x 1 pc
• Plastic protection for mounting finger x 1 pc
• Plastic protection for bead breaker blade x 1 pc
• Plastic protection for clamps x 4 pcs
• Tire lever x 1 pc

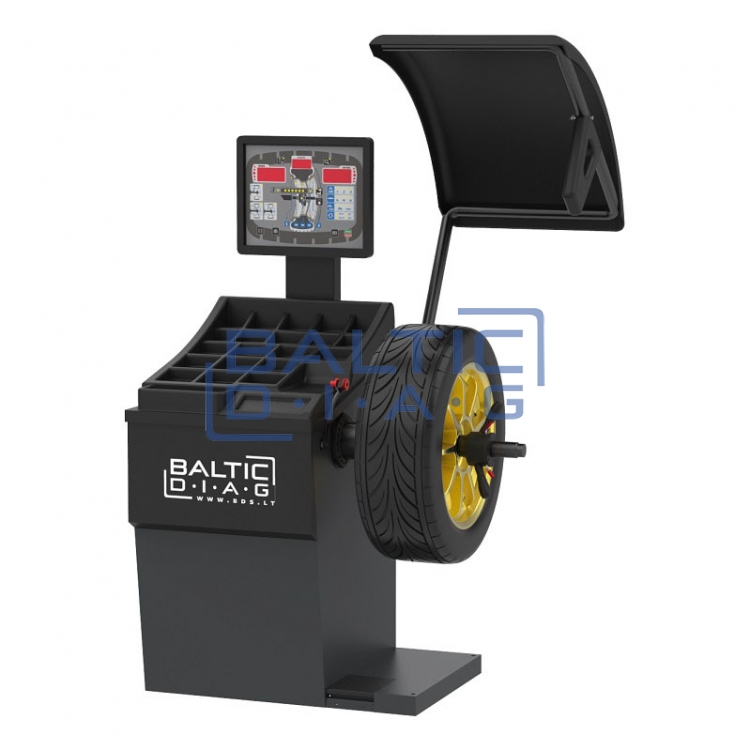

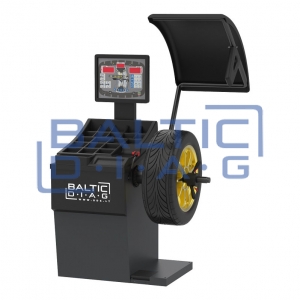

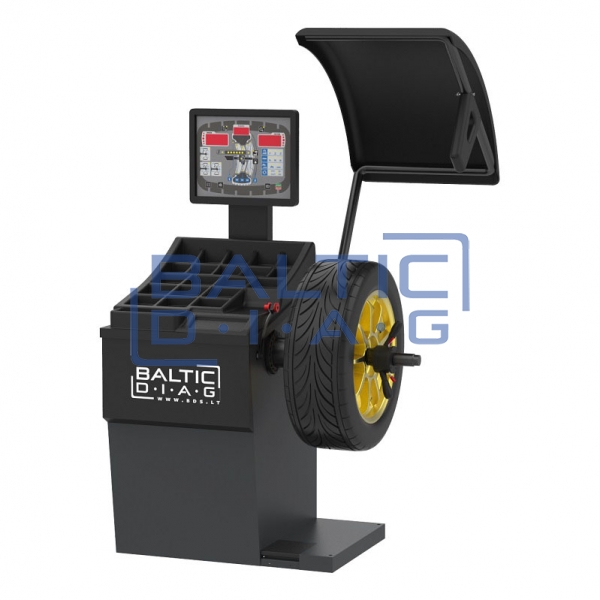

Automatic Wheel Balancing Machine BD-670

Features:

• Precise Imbalance Detection: Accuracy within ±1 g. Equipped with a laser pointer for pinpointing the exact imbalance location.
• Optimized Automatic Wheel Locking System: Automatically locks the wheel in place for precise placement of balancing weights.
• Adjustable Laser and Imbalance Position: Allows switching between the 12 o'clock and 6 o'clock positions as needed.
• Calibration Options: Supports calibration of weights, spindle, and automatic measuring tools to ensure the highest work quality.
• Flexible Settings: Allows for extensive configuration and parameter adjustments.
• 3D Automatic Wheel Parameter Measurement: Automatically measures rim width and distance. A highly accurate, calibration-free ruler and a specialized sonar detect and save the wheel width during balancing.
• Supports All Balancing Modes: Includes dynamic balancing, 3 static modes, 7 ALU modes, 2 configurable EALU modes, and an adjustable OPT function. Also features two weight-hiding modes for better aesthetics.

Technical Specifications:

• Rim diameter: 10” – 32”
• Maximum wheel diameter: 1000 mm
• Wheel width: 1.5” – 25”
• Rotation speed during balancing: 150 RPM
• Maximum wheel weight: 70 kg
• Balancing accuracy: ± 1 g
• Electric motor power: 0.25 kW

Standard Accessories:

• Balancing cones of various sizes x 4 pcs
• Quick-release nut
• Special mirror for attaching adhesive weights
• 100 g calibration weight
• Pliers for working with weights
• Mounting adapter with rubber protection
• Calibration plate
