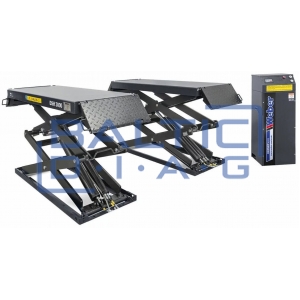

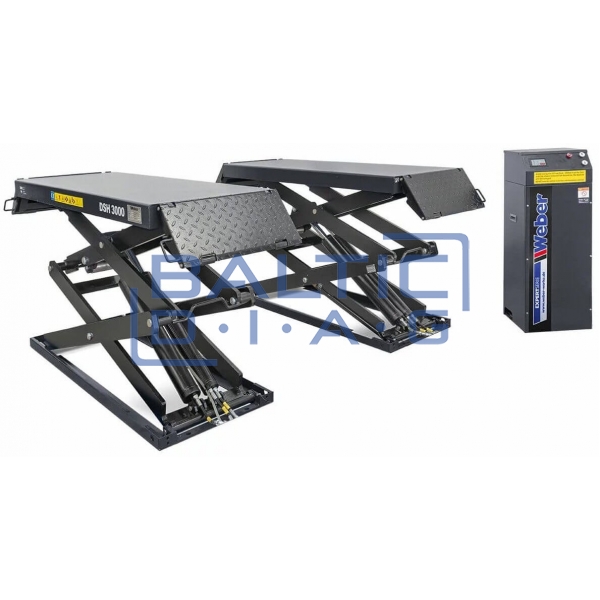

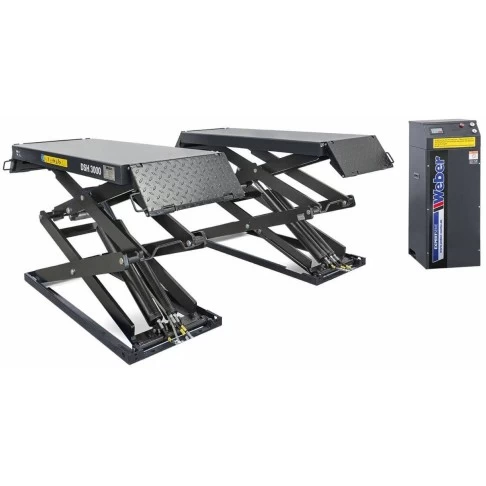

Weber DSH 3000 double scissor lift

Double Scissor Lift Weber DSH 3000

Country of origin: Germany, warranty period – 24 months

Electrohydraulic double scissor lift designed for lifting passenger cars, installed on the floor surface. Its compact design allows convenient access to the vehicle, offers a high lifting height, and features lockable ramps that can be used as extensions. Electronic synchronization and a dual hydraulic safety system ensure precise and safe lifting.

Features:

• Surface-mounted – no pit required

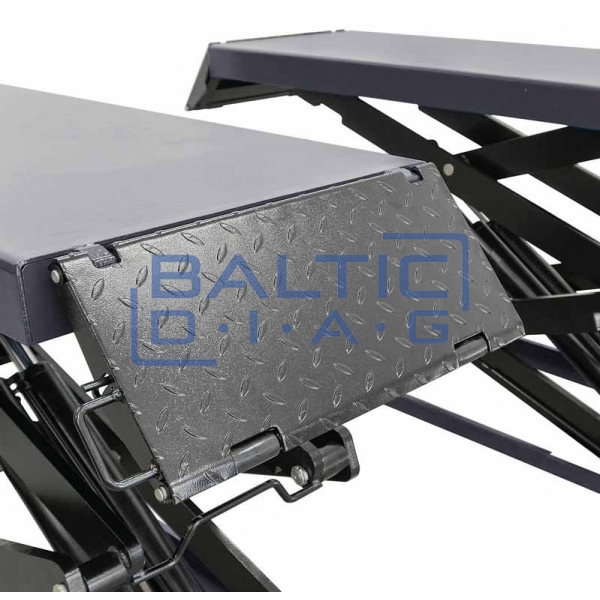

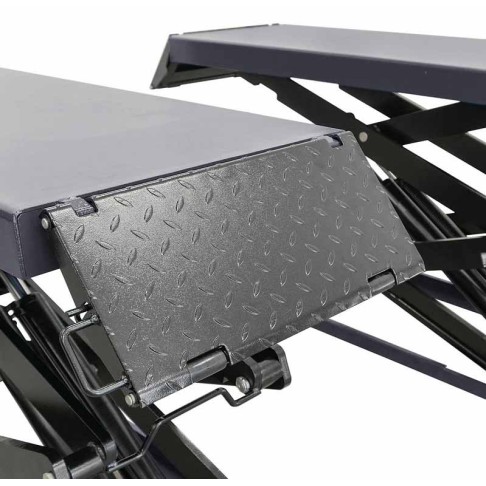

• Lockable ramps can be used as extensions
• High lifting height – up to 1900 mm
• Low drive-on height – only 112 mm
• Unrestricted access to vehicle doors

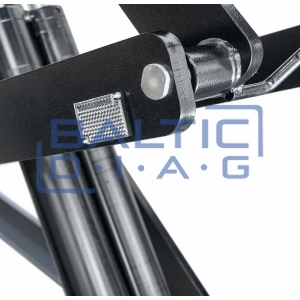

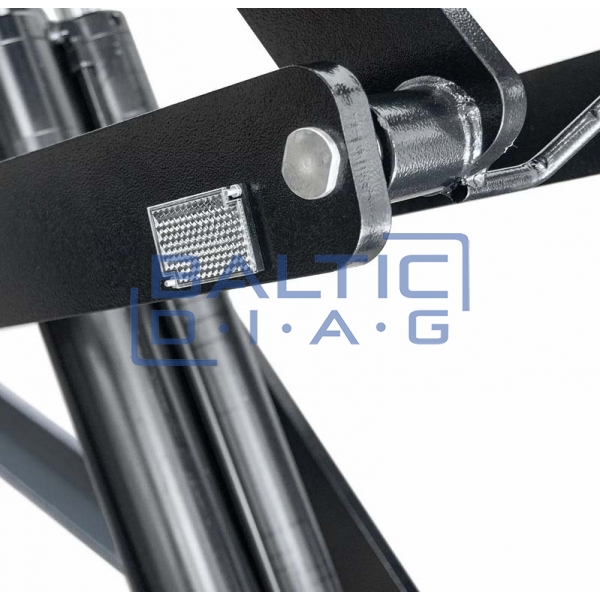

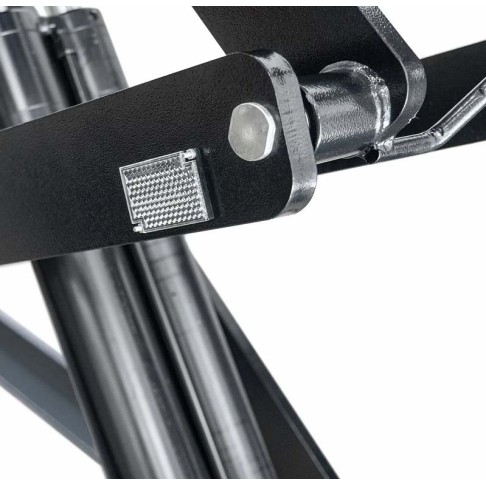

• Smooth joints and low wear

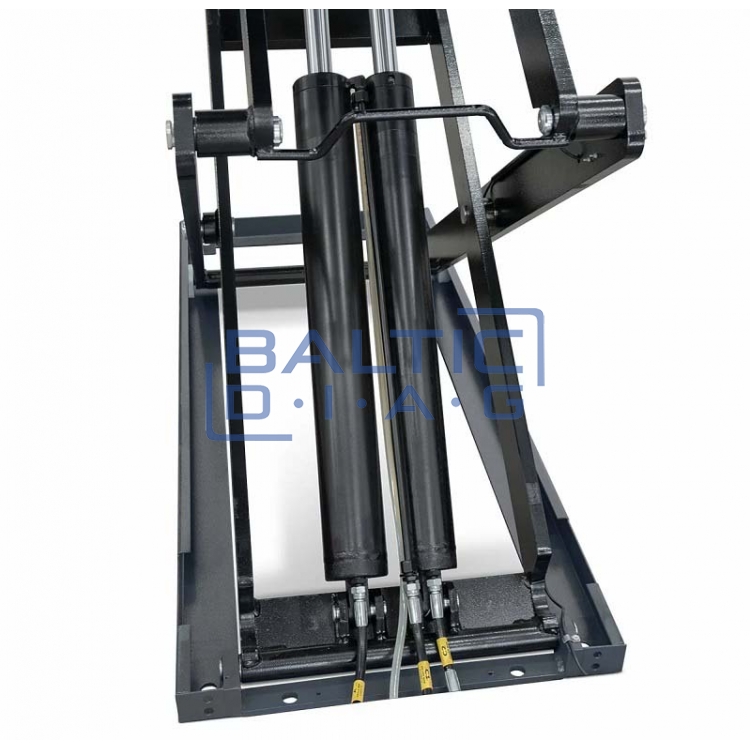

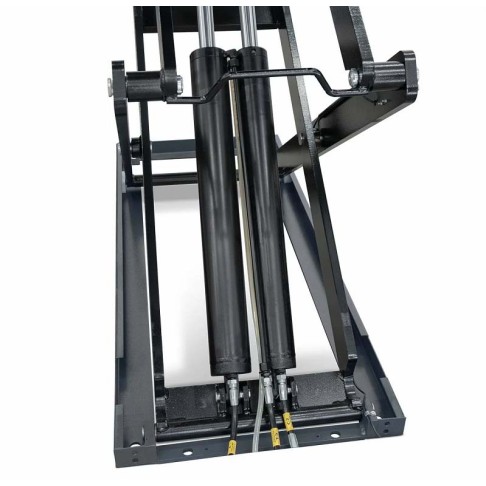

• Dual hydraulic safety system instead of mechanical locking
• LED indicators on control panel

Technical specifications:

• Lifting capacity: 3000 kg
• Maximum lifting height: 1900 mm
• Minimum height: 112 mm
• Runway length: 1570 – 2030 mm
• Runway width: 595 mm
• Total width: 1990 mm
• Lifting time: 50 s
• Power supply: 400 V / 3 Ph / 50 Hz (optionally 230V / 1 Ph)
• Motor power: 2.6 kW
• Noise level: < 75 dB
• Weight: 830 kg
