Automatic pneumatic-hydraulic axle lift SD20PHL-A
Automatic pneumatic-hydraulic axle lift SD20PHL-A
Automatic pneumatic-hydraulic axle lift SD20PHL-A
Automatic pneumatic-hydraulic axle lift SD20PHL-A
Automatic pneumatic-hydraulic axle lift SD20PHL-A

Automatic pneumatic-hydraulic axle lift SD20PHL-A

  • SKU: BD13301
4,485.00 €

AC-HYDRAULIC AC-HYDRAULIC
Prices shown include tax
Add to Cart

Send Message

Description

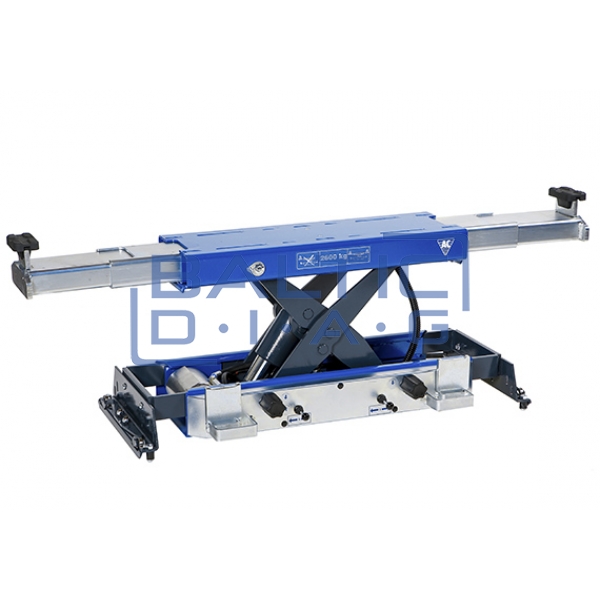

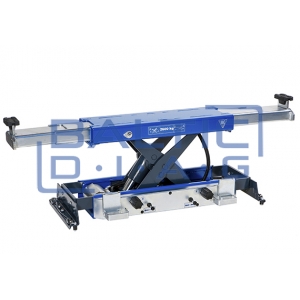

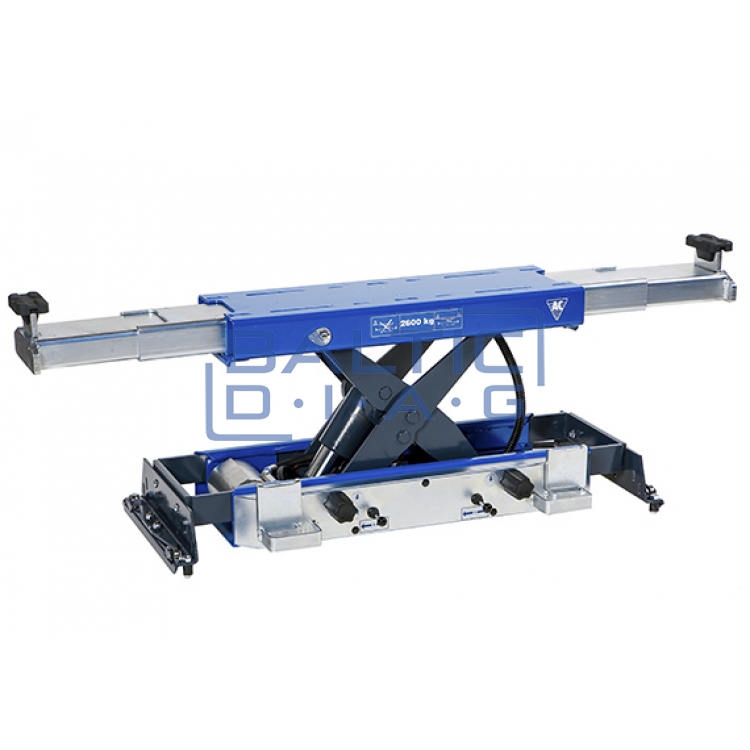

Automatic pneumatic-hydraulic axle lift SD20PHL-A


AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Automatic pneumatic-hydraulic axle lift for inspection centers and workshops with many lifting operations

Description:

- Individual joysticks control lifting paws to save time-consuming work operations
- Remote-controlled lowering and lowering of the paws
- Installing the remote control under the truck control ensures safe operations and avoids unnecessary steps
- Unique height adjustable armrest system - Designed to fit all modern lifts and pits
- Supplied with 3 extension kits (10/40/85 mm) and rubber cushion for body protection
- Manufacturer: Denmark
- Warranty: 3 years

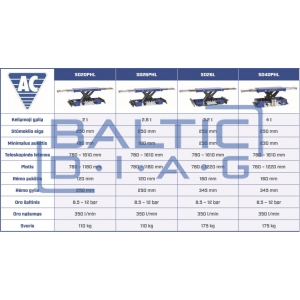

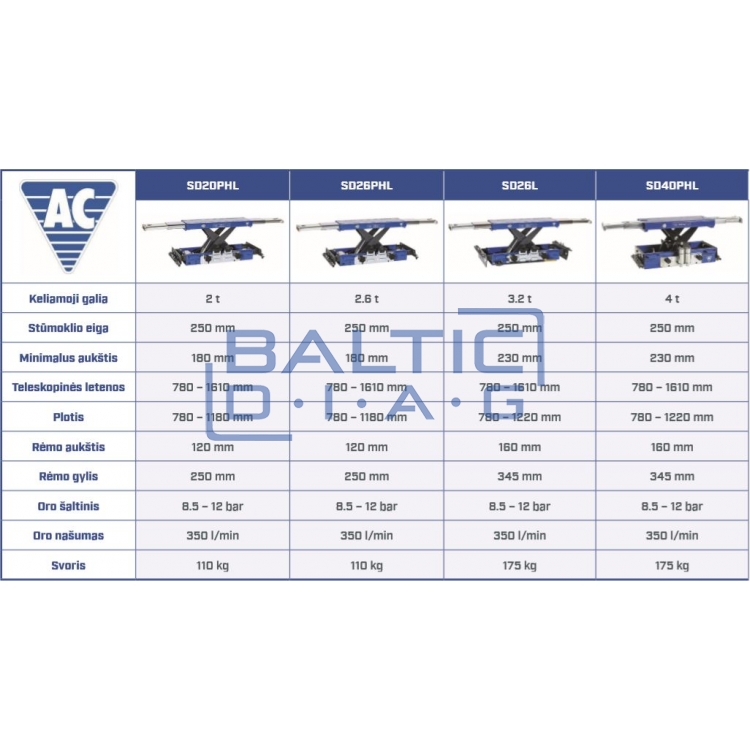

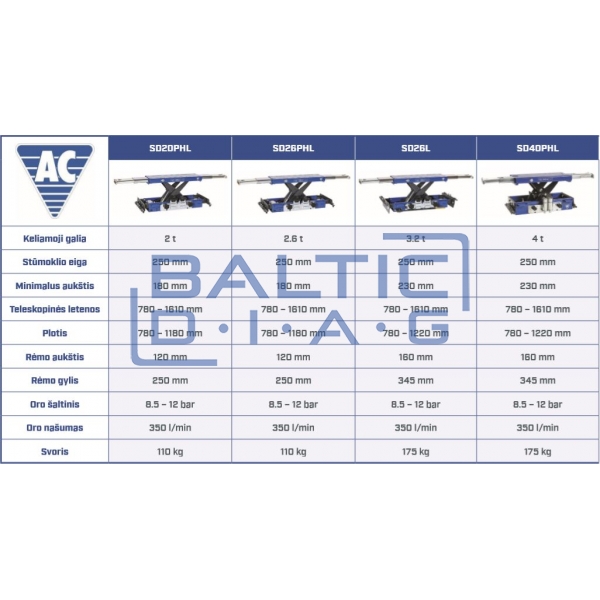

Specification:

- Lifting capacity: 2 tonnes
- Lifting stroke: 250 mm
- Minimum height: 200 mm
- Length of supports: 780 - 1500 mm
- Lift width: 780 - 1180 mm
- Construction height: 120 mm
- Construction depth: 250 mm
- Required compressed air pressure: 8.5 - 12 bar
- Required compressed air flow: 350 L / min
- Weight: 120 kg

Additional equipment:

- HSD-A: Pneumatic connection kit
- FSD1: 130 mm height extensions (Requires 2 pcs)
- FSD2: Rubber support 40 mm (Requires 2 pcs.)
- FSD3: Rubber support 80 mm (Requires 2 pcs.)
- FSD5: Saddle with thread (106 - 240 mm) (Requires 2 pcs)
- GS2: 10mm Rubber Pad (Requires 2pcs)
