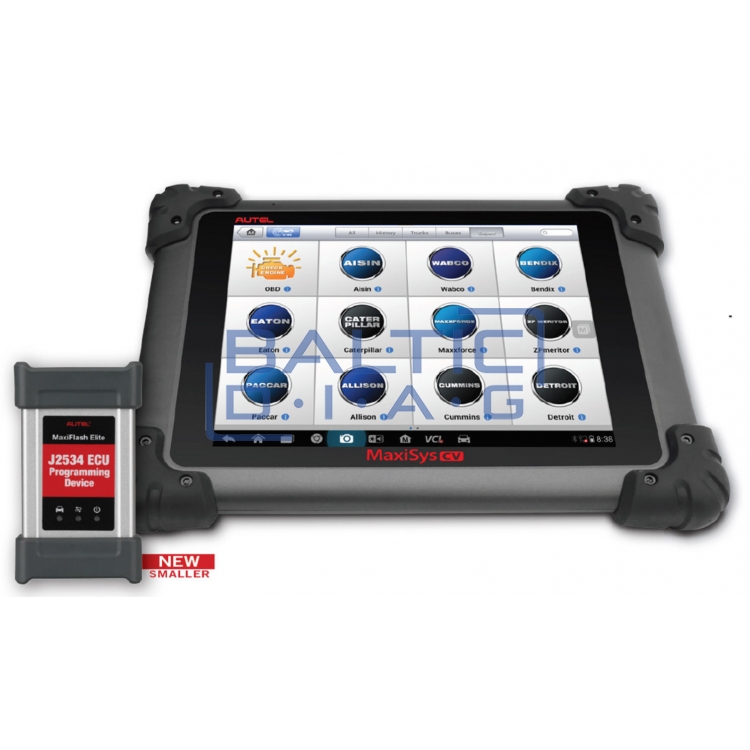

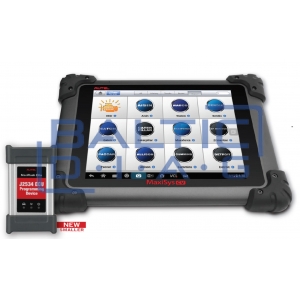

Autel MaxiSys CV diagnostic equipment

Autel MaxiSys CV Diagnostic Equipment

Features:

• Powerful Cortex-A9 quad-core processor for fast diagnostics;
• 9.7" 1024x768 LED screen with Multi-Touch IPS technology;
• 32GB solid-state drive for fast and reliable data storage;
• Integrated 5MP rear camera with auto-focus and flashlight;
• Dual-band (2.4 GHz and 5.0 GHz) 802.11n Wi-Fi;
• Rugged, ergonomic design with strong rubberized protection and durable housing;
• Built-in rechargeable lithium-ion battery providing up to 8 hours of continuous operation;
• Multiple ports (USB, audio, and auxiliary ports) for connecting accessories;
• VCI wireless connectivity with a working range of up to 230 meters.

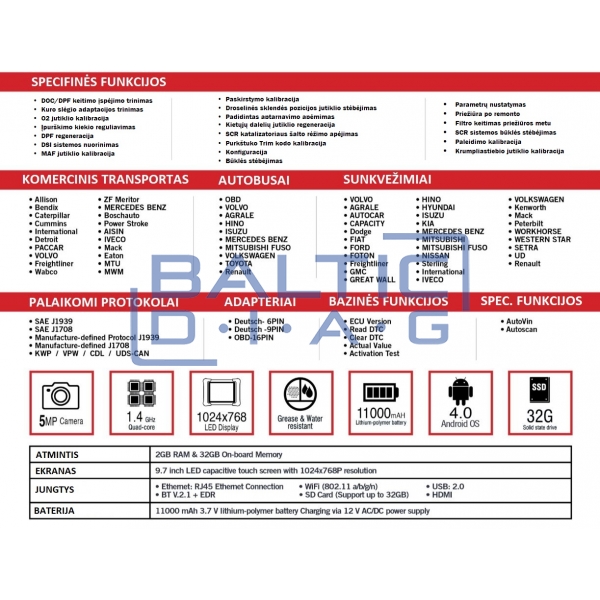

Technical Specifications:

• Operating System: Android™ 4.0, Ice Cream Sandwich;
• Processor: Samsung Exynos Quad-Core 1.4GHz;
• Memory: 2GB RAM & 32GB internal storage;
• Interfaces:
• Ethernet: RJ45 port
• Wi-Fi: 802.11 a/b/g/n/ac
• USB: 2.0
• Bluetooth: v2.1 + EDR
• SD Card: Up to 32GB
• HDMI output
• Camera: Rear 5.0 MP with auto-focus and flashlight;
• Sensors: Accelerometer, ALS;
• Audio Input/Output: Built-in microphone, speaker, and 3.5mm audio jack;
• Power Supply & Battery:
• 11,000 mAh 3.7V lithium battery
• Charging via 12V AC/DC adapter
• Input voltage: 12V (9-24V)
• Power consumption: 6.5W
• Operating Temperature: -10°C to 55°C (14°F to 131°F);
• Storage Temperature: -20°C to 70°C (-4°F to 158°F);
• Protection: Plastic frame with rubber protection;
• Dimensions: 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”);
• Weight:
• Net weight: 1.42 kg (3.13 lb.)
• Gross weight: 8.052 kg (17.75 lb.)

Supported Protocols:

• SAE J1939
• SAE J1708
• Manufacturer-Specific J1939 Protocol
• Manufacturer-Specific J1708 Protocol
• KWP, VPW, UDS-CAN, CDL

Software Features:

• Open-source Android OS for fast boot-up and multitasking;
• User-friendly and intuitive navigation for quick and easy diagnostics;
• Extensive vehicle coverage – supports over 80 commercial vehicle manufacturers from the US, Asia, and Europe;
• Full coding and adaptation capabilities – read/erase codes, live data, actuation tests, ECU coding;
• Data recording and analysis:
• Real-time sensor data display in text, graph, analog, and digital gauge formats;
• Customizable display options, triggers, recording, and playback for detailed diagnostics;
• Recorded data helps detect sensor and component failures.
• Cloud-based storage – saves customer and vehicle records, scan data, and technician notes;
• Remote technical support for convenient demonstrations, training, and troubleshooting;
• Wi-Fi printing – print recorded data anytime, anywhere;
• Automatic Wi-Fi updates for software and database upgrades.

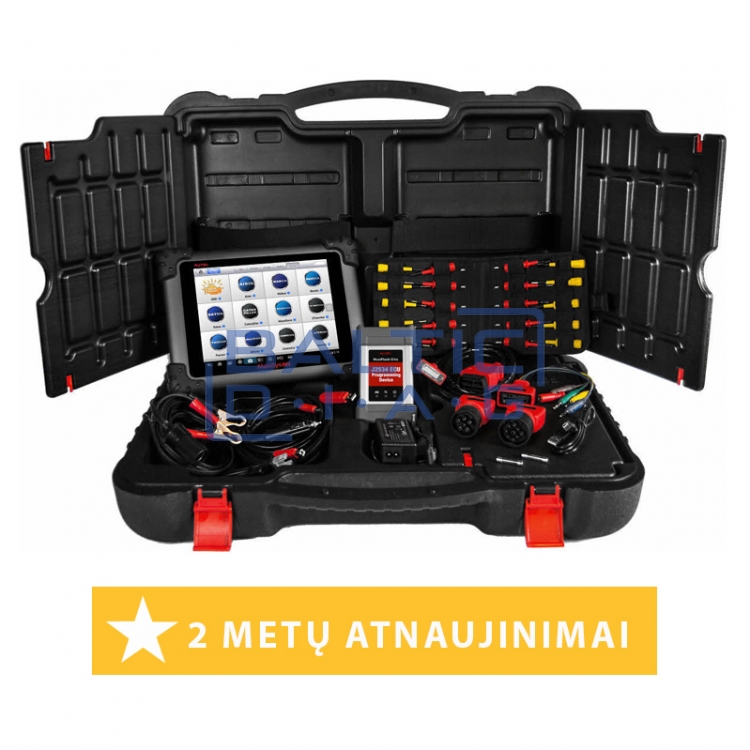

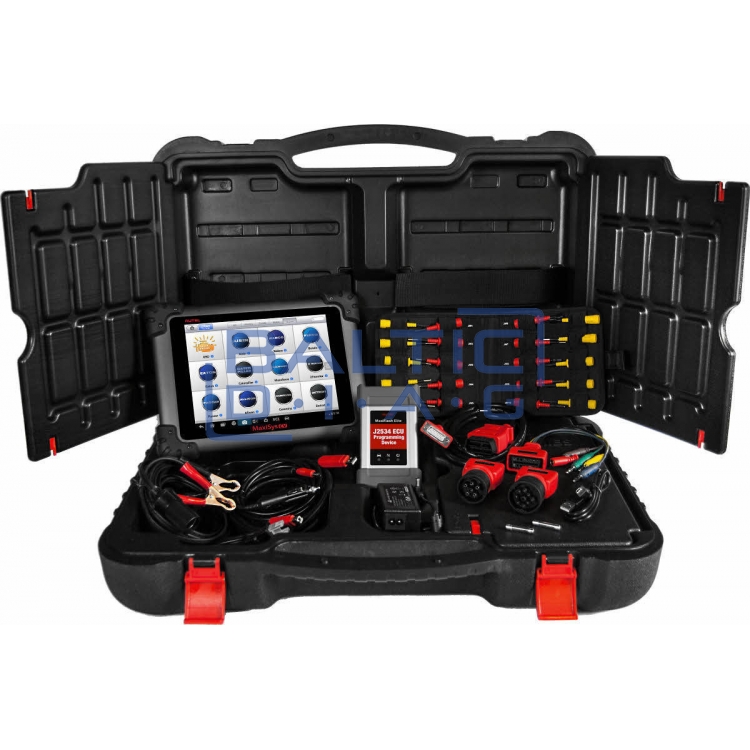

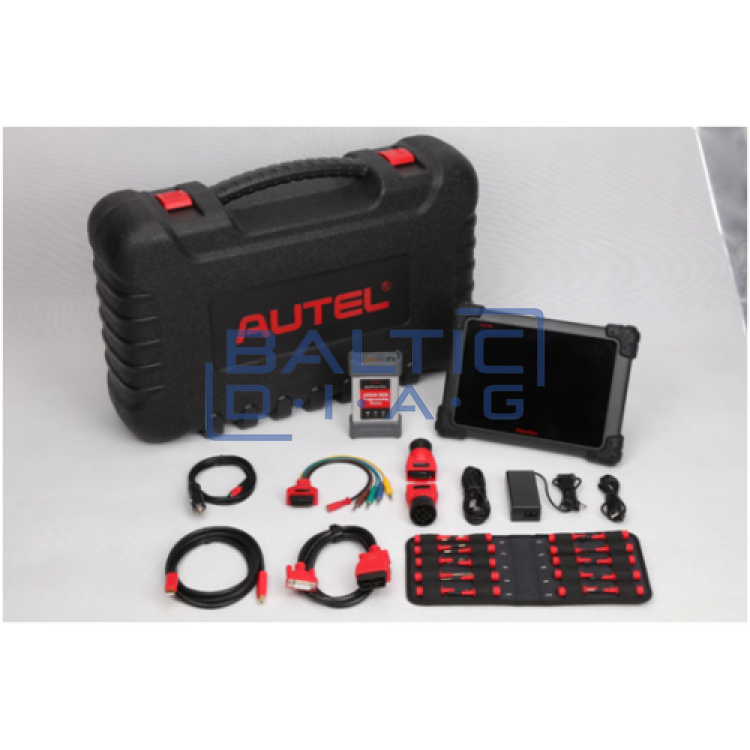

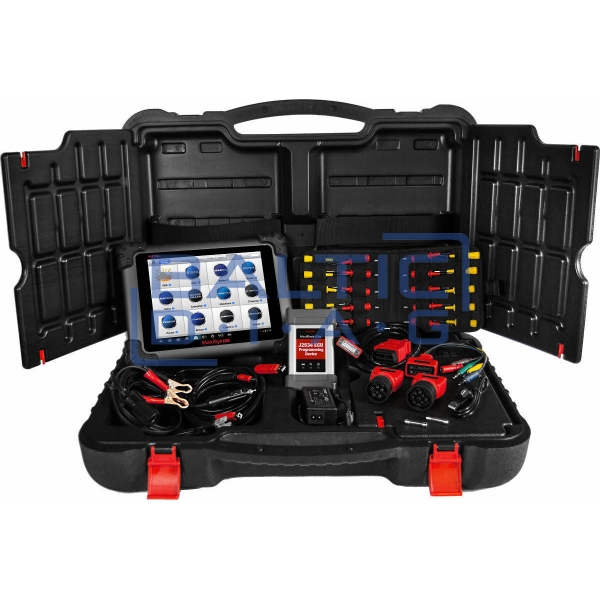

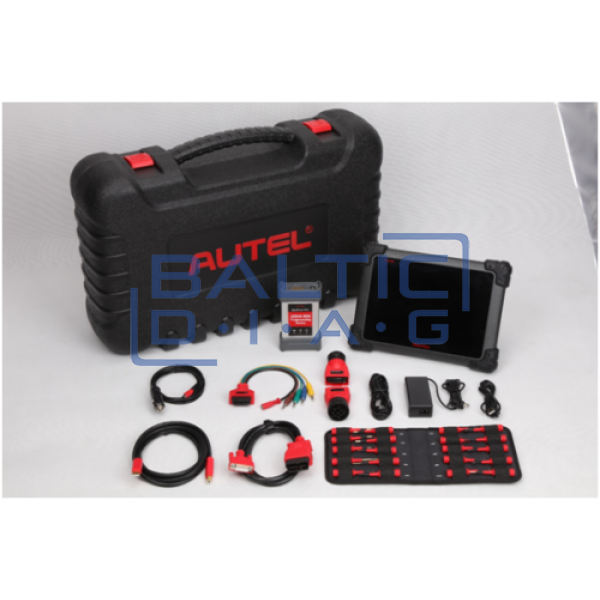

Package Contents:

• MaxiFlash Elite
• Deutsch-9 Adapter
• Deutsch-6 Adapter
• UNI-4 Adapter
• Adapter Case
• JW10 (x2), JW9 (x2), JW8 (x2), JW7 (x2), JW6 (x2), JW5 (x2), JW4 (x2), JW3 (x2), JW2 (x2), JW1 (x2)
• User Manual
• Quick Start Guide
• Main Diagnostic Cable
• Carrying Case
• USB Cable
• Vehicle Socket Adapter
• AC/DC Power Adapter
• Cleaning Cloth
