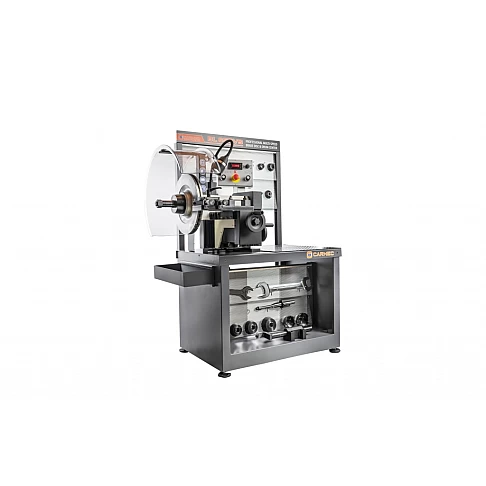

Carmec BL 650VS multi-speed brake disc and drum lathe

Carmec BL 650VS multi-speed brake disc and drum lathe

Manufacturer: Carmec. Country: Slovenia

The BL 650VS brake lathe is designed to upgrade the brake discs and drums of all cars and light trucks. It is the result of a development process that comes from all over the world.

The 180 kg rigid cast iron body and rugged high-performance workbench eliminate temporary vibration and ensure the best surface finish.

The BL 650VS uses independent precision electric DC servomotors to control cross and shaft feed drives.

You can now have complete control over the entire process and make changes.

Separate motors on drum and disc feed for best surface results

Electronically controlled variable shaft speed and cross feed speed ensure a perfect finish

Quick switch from disc to drum

A tool board is installed for easy access to adapters and tools

Automatic shutdown

This complete set of lathes includes lathes with a double-cutting head, standard accessories covering most applications, and a sturdy workbench with large tool and accessory storage boards.

Technical data:

Maximum brake disc diameter: 520 mm

Minimum brake disc diameter: 150 mm

Maximum fracture disc thickness: 100 mm

Maximum diameter of the brake drum: 650 mm

Minimum diameter of the brake drum: 150 mm

Shaft rotation speed: 0 ÷ 350 rpm

Variable feed speed - longitudinal: l0 ÷ 72 mm / min

Variable feed speed - transverse: l0 ÷ 72 mm / min

Shaft motor power: 1.5 kW

Longitudinal feed motor: 0.185 kW

Transverse feed motor: 0.185 kW

Voltage (+/- 15%): 240V

Phases: 1

Frequency: 50/60 Hz

Weight: 248 kg

Machine dimensions:

Length: 1250 mm

Width: 1100 mm

Height: 1650 mm
