Aluminum four - legged crane 525

Aluminum four - legged crane 525

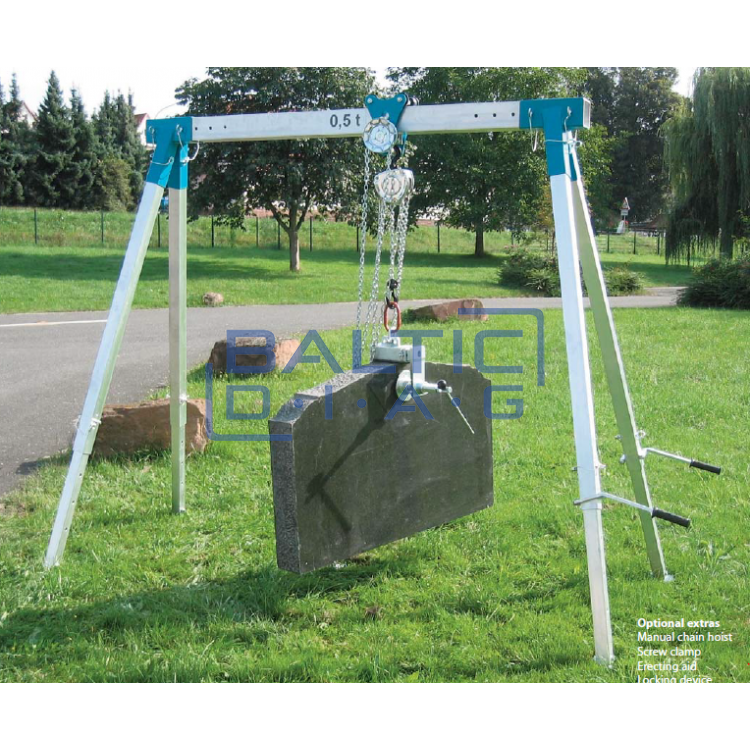

Aluminum crane - the optimal crane that can be quickly selected and assembled for one person.

The beam and legs are made of high quality aluminum profiles. This makes the entire construction particularly easy, making it convenient to move and assemble for one person. The height of the legs can be adjusted, very convenient when used in uneven terrain or when loading and unloading a truck. The crane is equipped with needles as standard, rubber plates can be ordered separately.

The four-legged lift is equipped with a bearing trolley. It can be moved simply by pushing and can have a locking device.

Auxiliary handles can be purchased as an option to help assemble the crane.

Technical specifications:

Aluminum four foot crane AV 0.5

Safe working weight: 500 kg

Beam length: 2000 mm

Free crane height: 1600/2800 mm

Maximum weight of each crane part: 20 kg

Total weight: 58 kg

Additional accessories:

Rubber plates: 525 050G

Auxiliary handles: 048 641

Locking mechanism for trolley: 048 672

Manual chain hoist:

Safe working weight: 500 kg

Minimum construction height: 280 mm

Lifting height: 3 m

Weight: 9 kg

Threaded clamp: 309 050

Safe working weight: 500 kg

Compression distance: 60 - 170 mm

Weight: 12 kg
