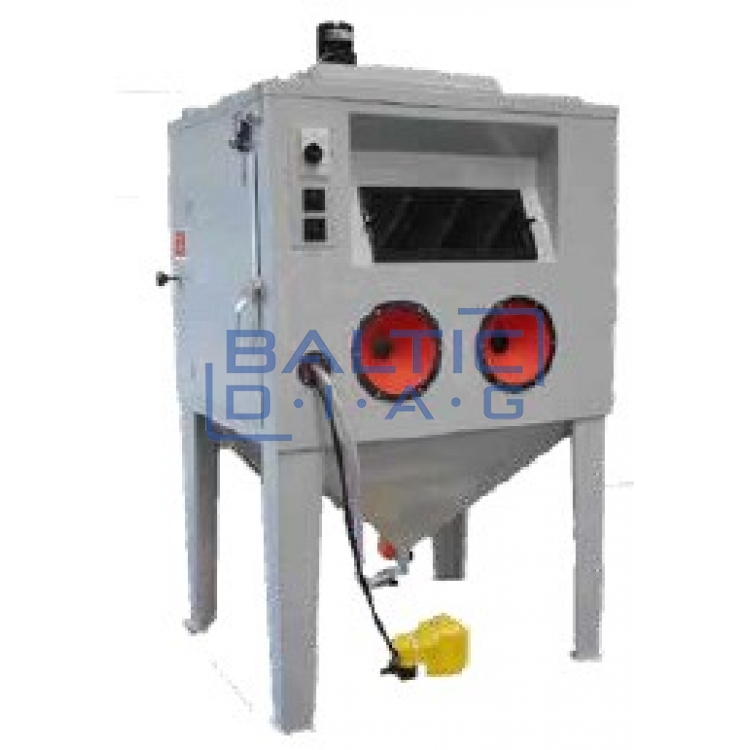

Airblast ABDI-1300 Vacuum sandblasting cab

Airblast ABDI-1300 Vacuum sandblasting cab

The AirBlast vacuum sandblasting cab is designed for rust removal, cleaning, sweeping, matting, polishing and splitting. This machine is specially designed for manual sandblasting, for all the finer components.

The cab has a ready-made working space, followed by an abrasive collection funnel. The dust filter with separation is part of the sanding cabin. The working space is lined with 3 mm. Rubber walls and doors. A separation filter is connected to the sandblasting cabinet to separate large flows of incoming air into the filtration system. A sprayer is installed after the assembly funnel.

Cabin

Working space Doors

Height

2490 mm

1100 mm

850 mm

Width

1350 mm

1300 mm

700 mm

Depth

1700 mm

1000 mm

The set includes:

Opening door with safety control switch.

Lighting 4 x 18 W.

3 perforated grilles in the working space

1 interchangeable box

Box 1 protection.

2 flexible rubber cavities.

Installed control panel with main switch, control safety switches for lighting and extraction.

1 nozzle holder with 8 mm Borium Carbid sprayer

Sandblasting hose that is brought through the ceiling of the unit

Control valve from 0 - 10 bar, operated by the operator, changing the valve parameters and monitoring the front, integrated valve.

Pneumatic foot pedal.

Operating principle:

The abrasive enters the funnel through the working grille in the working space of the chamber. At the lowest part of the funnel, the abrasive falls into the mixing tube, through which it is constricted and fed through the sandblasting hose. The shrinkage force can be adjusted by changing the position of the sliding valve. The abrasive hose is connected to the abrasive sprayer. A compressed air hose is also connected to the sprayer. The foot pedal is used to apply pressure to the air supply hose. This creates a vacuum in the abrasive hose, which creates abrasive traction and entry into the sprayer. The sanding pressure can be adjusted by adjusting the compressed air supply pressure.
