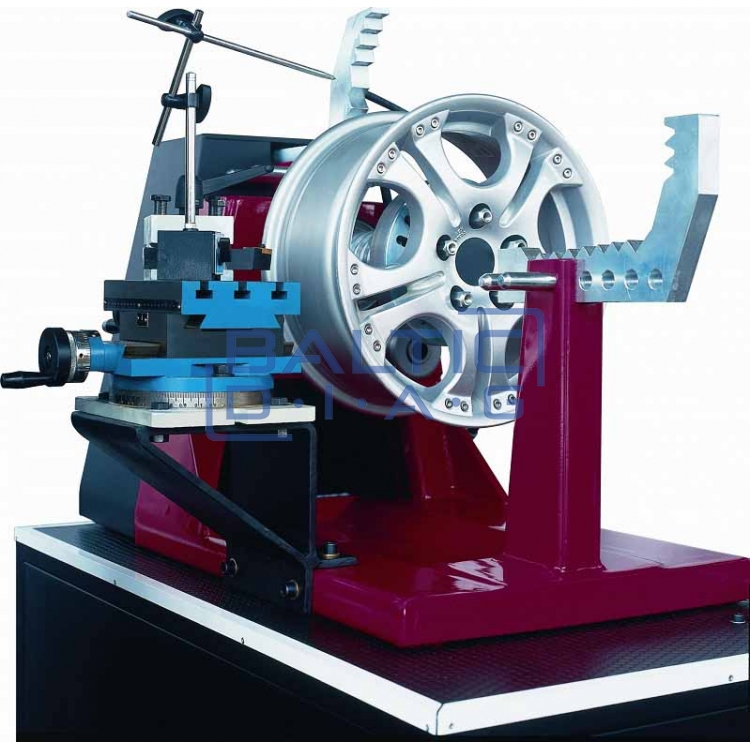

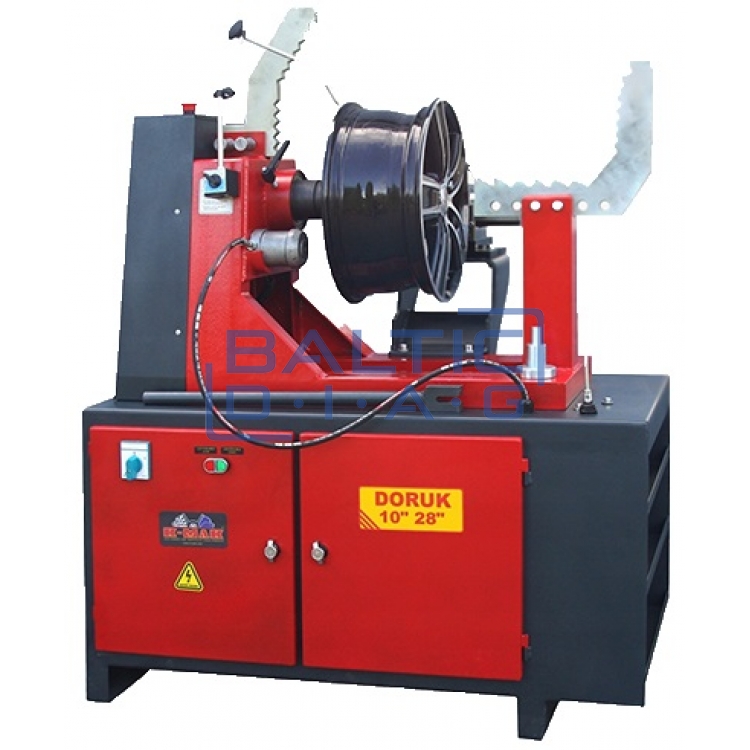

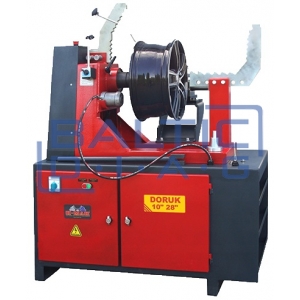

Rim straightening and turning machine K-Mak Doruk

Rim straightening and turning machine K-Mak Doruk

This rim straightening and turning machine is an advanced and precisely engineered mechanism designed to remove small dents or deformations in rims that can cause many negative rim balancing problems. This machine completes the range of wheel balancers, ensuring that your wheels are smooth and perfectly aligned. The Doruk machine is intended for straightening 10" - 28" rims. Straightening works are carried out on the principle of fixed balancing, thus providing a reliable and efficient way to correct rim deformations. Importantly, these machines use hydraulic and electrical technologies to achieve exceptional performance. In them you will find a built-in powerful hydraulic cylinder with a pressure of 7500 kg. This cylinder is controlled by a powerful hydraulic design, a reliable electric hydraulic pump that generates the required oil pressure, thus ensuring consistent and flawless operation of the hydraulic system. Thanks to its built-in measuring tool, the machine can precisely determine the curved areas of the rims. Accurate measurement allows precise use of the hydraulic straightening cylinder, ensuring that only the deformed sections of the rim are straightened and thus the integrity of the rim. K-Mak Doruk machines are designed with the needs of customers in mind and their work comfort, so they are easy to operate, even for those with minimal technical knowledge. You'll find intuitive controls and automated features that make these machines indispensable in any workshop dealing with wheel maintenance and repair.

Technical parameters:

• Model: Doruk
• Working rim size: 10" - 28"
• Maximum rim width: 10"
• Hydraulic system: electric hydraulic pump
• Hydraulic pump power: 0.37 kW
• Hydraulic pump power source: 400 V; 50 Hz; 3 fz
• Motor power: 0.37 kW
• Motor power supply: 400 V; 50 Hz; 3 fz
• Working pressure: 0 – 200 Bar (standard: 150 bar)
• Noise level: 70 dB(A)
• Dimensions: 1200 x 700 x 1300 mm (length x width x height)
• Weight: 375 kg
• Color: black - red
• Package dimensions: 1350 x 850 x 1450 mm

Complete set:

• Rim straightening and turning machines K-Mak Doruk
• Rim centering rings x 14 pcs.
• Studs M12 x 80 x 5 pcs.
• Straightening heads x 5 pcs.
• Rim caupang nuts x 5 pcs.
• Piston extension timbles x 3 pcs.
• Rim conical adapters x 5 pcs.
• Double nuts M12 x 5 pcs.
• Nuts M12 x 5 pcs.
• Piston extension adapters x 4 pcs.
• Bend straightening lever

You can additionally order:

• Standard lathe clamp holder
• Sliding lathe holder
• Motorcycle rim mounting kit
