Manufacturer Autel, warranty 24 months.

The Autel IA800 is an intelligent positioning system, making this stand an innovative technology as it speeds up all previously mechanical processes. The fastest and most accurate positioning of the calibration frame without mechanical measurement. Autel ADAS Optical Positioning System features six high-definition cameras that provide 3-dimensional adjustment for more accurate centering and vehicle distance finding. This new ADAS positioning system optically measures towbars mounted on two wheels, significantly reducing positioning time and increasing accuracy.

6 high definition 3D video cameras

Autel IA800's advanced 3D camera technology ensures the most accurate and fastest calibration time. Also, with this stand you get the latest vehicle data and technology and you will be assured that all calibrations will be done accurately and safely returned to the vehicle owners.

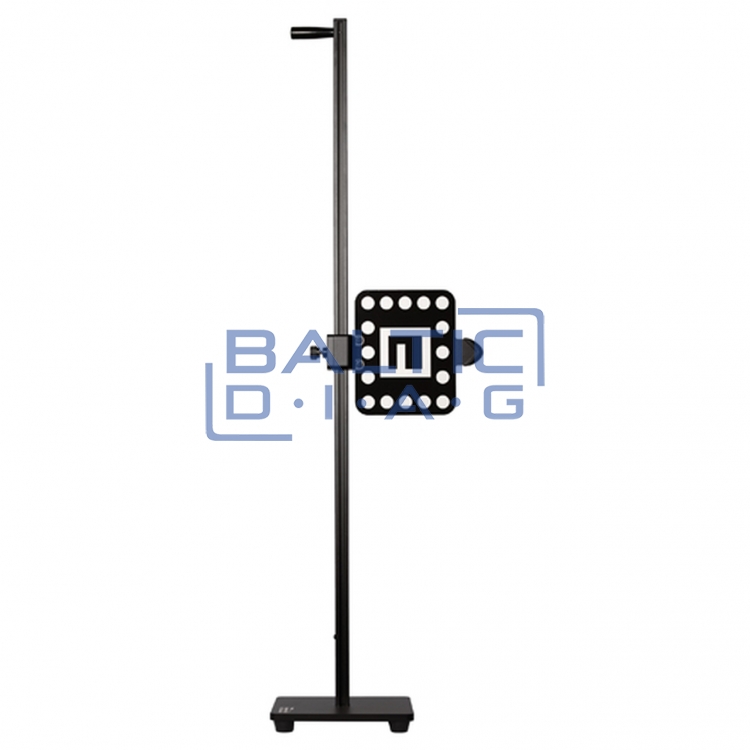

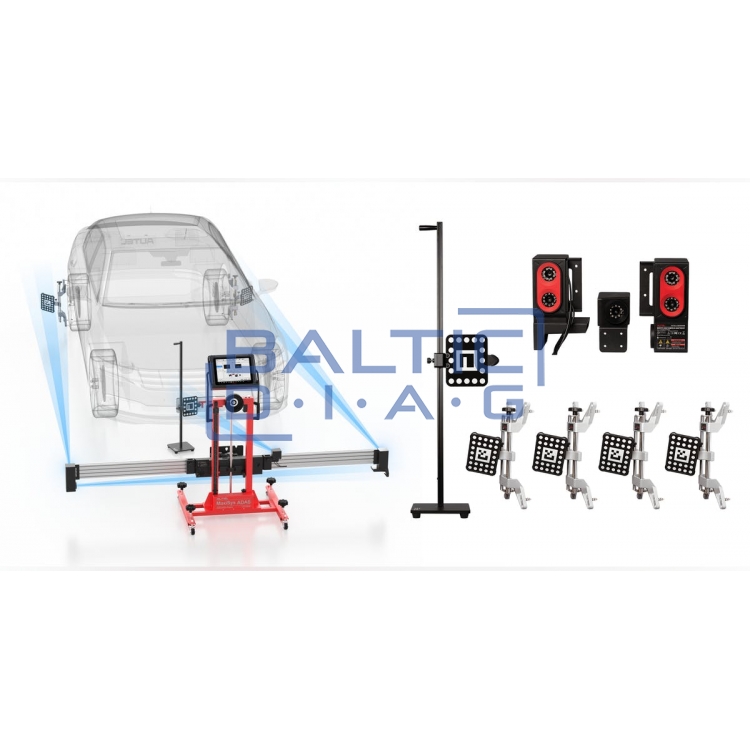

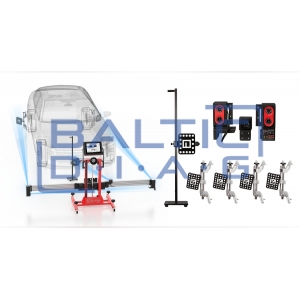

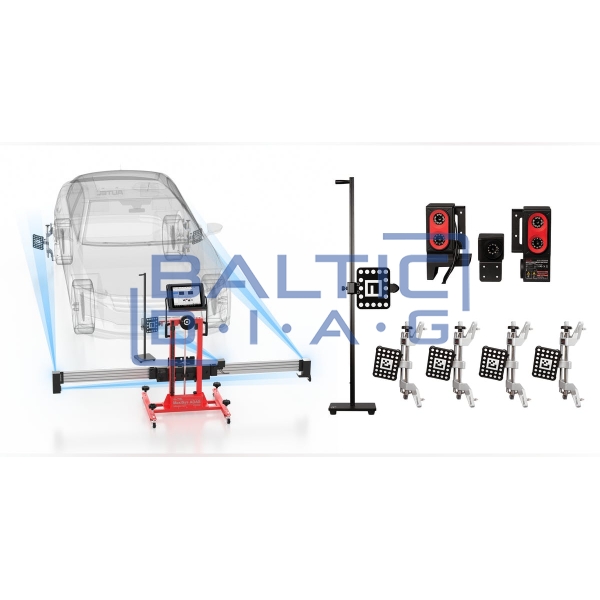

Wheel clamps with camera sights attach to the rear wheels, and the stationary target component is located on the front or side of the vehicle, depending on the make, model and year of the vehicle. The Autel MaxiSYS tablet is attached to the frame and is programmatically connected to the cameras.

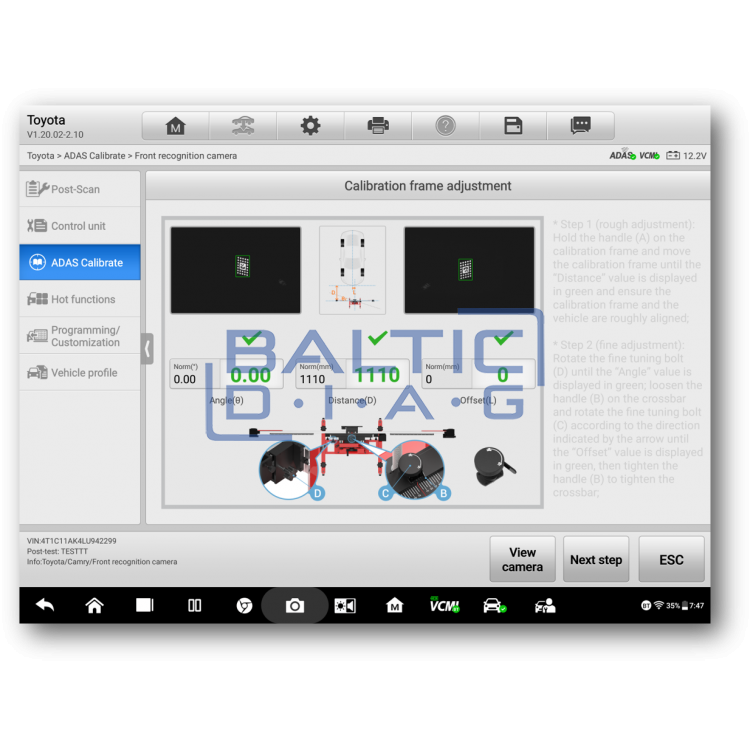

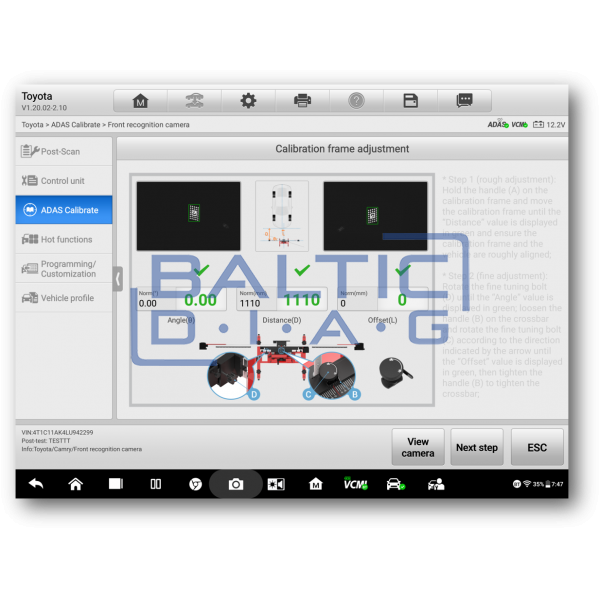

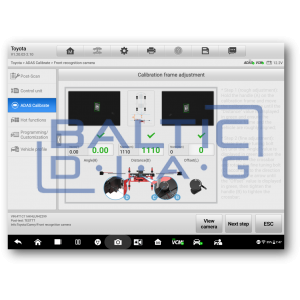

The system recognizes positioning targets and calculates the current angle, distance and frame deviation position to the vehicle. The technician simply follows the on-screen instructions to orient the frame or adjust its angle until the existing values match the required values. When the required position values are reached, a green checkmark appears next to each parameter. That's it, the vehicle is ready for calibration. So comparing this system to mechanical methods such as measuring tapes, you would save up to 40 minutes on average.

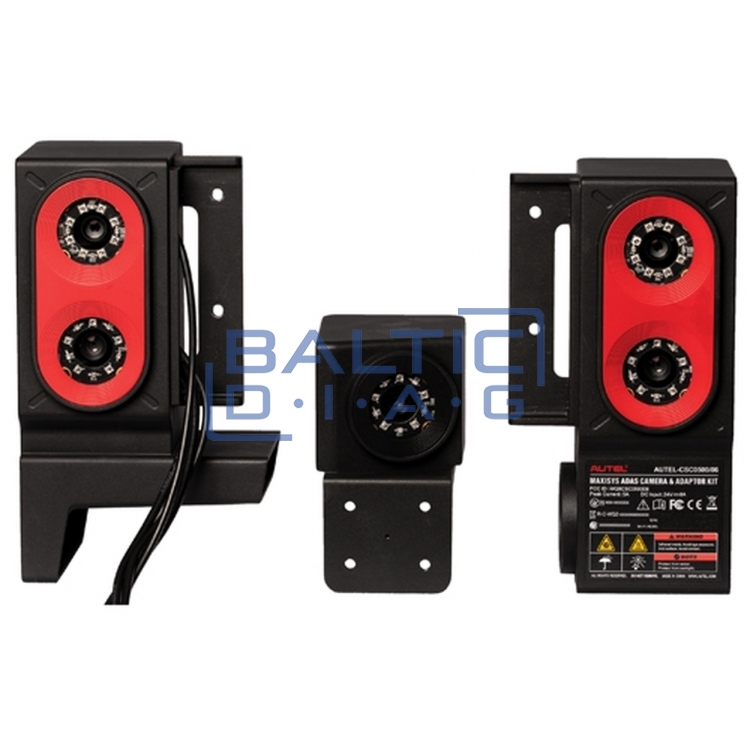

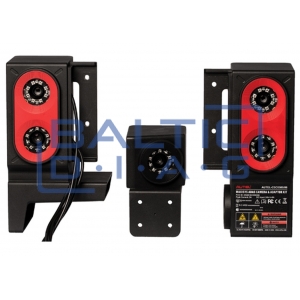

Features of 3D cameras:

• 3D scanning of the vehicle
• Measures distance, angle and displacement in one step
• Two cameras at each end of the crossbar to identify wheel targets
• One camera in the center of the crossbar to measure distance
• One camera for self-calibration

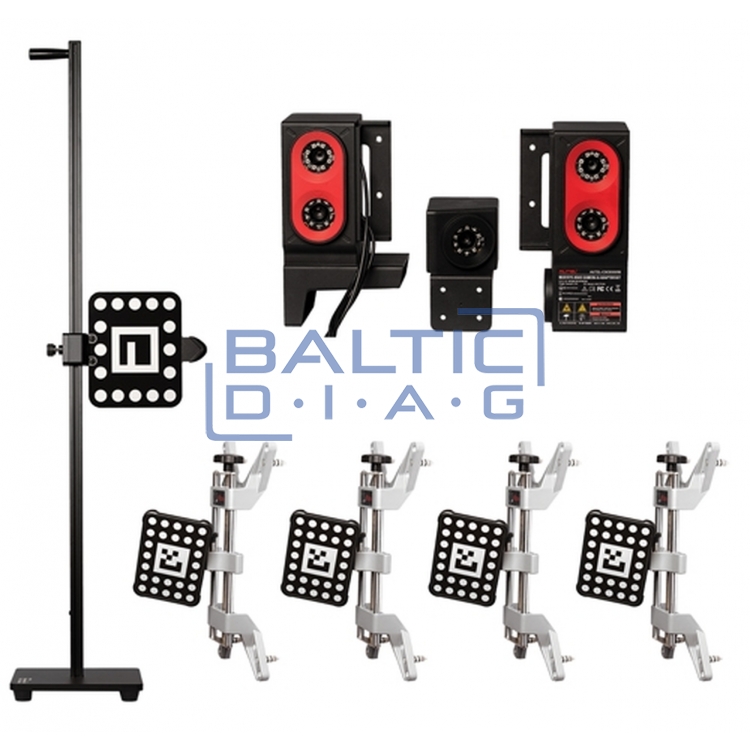

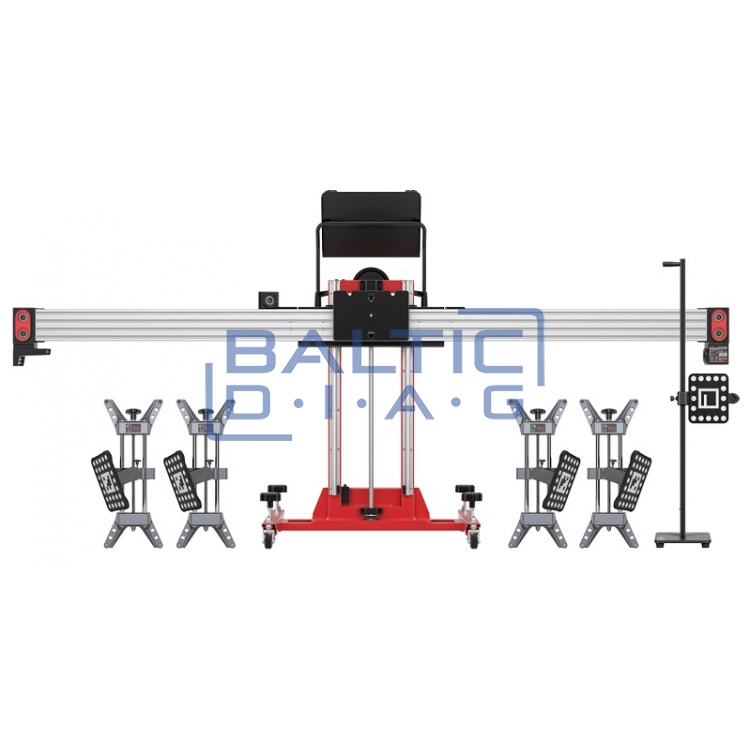

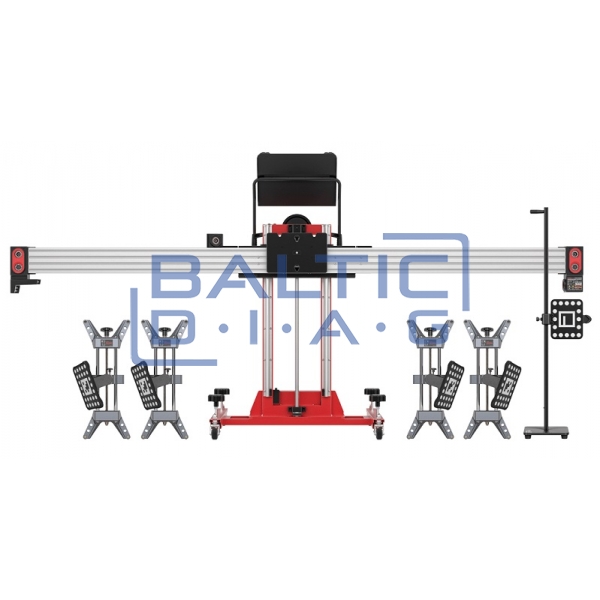

Autel IA800 package:

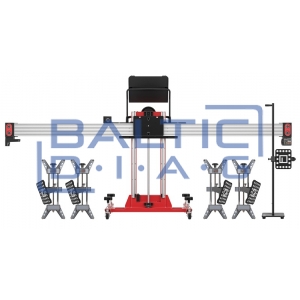

• IA800 ADAS frame structure (2nd generation)
• IA800 Camera Kit (CSC0500)
• LDW target for the Volkswagen Group
• LDW target for Mercedes-Benz car group
• ACC system calibration mirror

ADAS Calibrated Systems:

• Blind Spot System (BSD)
• Night vision system (NV)
• Lane Support System (LDW)
• Cruise Control (ACC)
• Surround Video Monitoring System (AVM)
• Rear View System (RCW)
