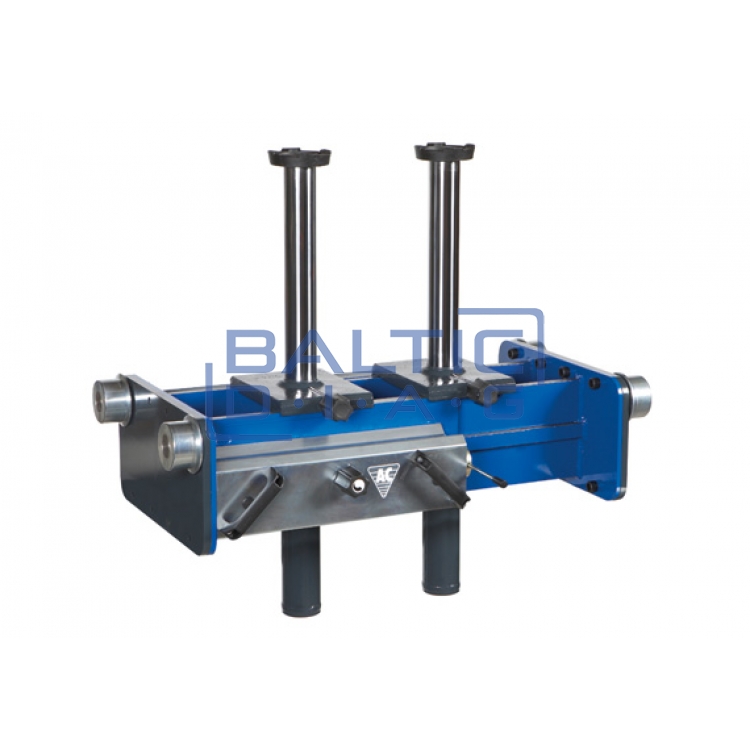

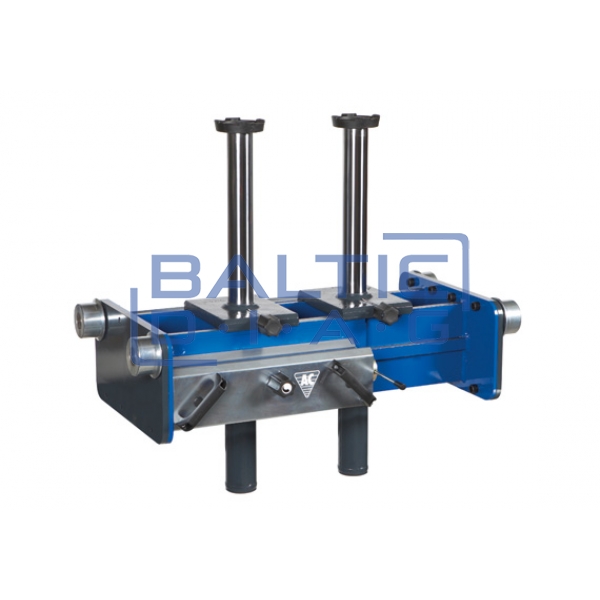

AC Hydraulic GD150-2 Double Pneumatic Hydraulic Pit Hoist

Dual Pneumo-Hydraulic Pit Jack AC Hydraulic GD150-2 15t

Country of origin: Denmark, warranty period – 3 years for hydraulics and 10 years for frame components

Professional pneumo-hydraulic pit jack with two independently controlled cylinders, designed for safe and stable lifting of truck axles, bridges, or other heavy components. Suitable for various pit types, featuring ergonomic controls and versatile use.

Features:

• Fast and precise lifting with quick-action cylinder
• 2 individually controlled cylinders for safe and parallel lifting
• Modern design with convenient control panel
• Adjustable frame suitable for different jacks and pits
• Movable cylinders for greater flexibility
• Compatible with crossbeams and support bridges
• Includes 2 x 100 mm height extensions

Technical specifications:

• Lifting capacity: 15 tons
• Piston stroke: 420 mm
• Minimum height: 545 mm
• Maximum height: 945 mm
• Lift length: 590–890 / 850–1150 / 1110–1410 mm
• Lift width: 649 mm
• Required air pressure: 8–12 bar
• Required air flow: 350 L/min
• Weight: 220 kg
