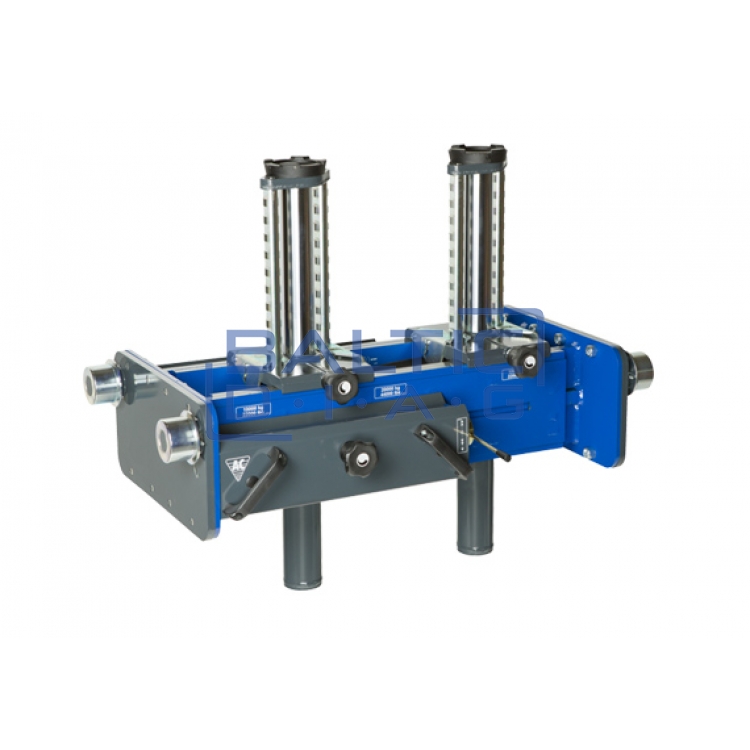

AC Hydraulic GD100-2M Double Pneumatic Hydraulic pit jack

Double Pneumo-Hydraulic Pit Jack AC Hydraulic GD100-2M 10t

Country of origin: Denmark, warranty period – 3 years for hydraulics and 10 years for frame components

Double-cylinder pneumo-hydraulic pit jack designed for truck maintenance and repair. The device features an automatic mechanical safety lock, fast lifting, and ergonomic design. Suitable for various bodywork and chassis operations. Supplied with extensions for increased adaptability.

Features:

• Fast and precise lifting with quick-action cylinder
• 2 individually controlled cylinders for safe and even lifting
• Automatic mechanical safety lock
• Modern design with control panel and ergonomic working height
• Adjustable frame suitable for different lifts
• Frame height customizable according to client needs
• Movable cylinders ensure flexibility
• Compatible with crossbeams, support bridges, and other equipment
• Supplied with 2 x 100 mm extensions

Technical specifications:

• Lifting capacity: 10 tons
• Piston stroke: 420 mm
• Minimum height: 560 mm
• Maximum height: 945 mm
• Jack length: 590–890 / 850–1150 / 1110–1410 mm
• Jack width: 649 mm
• Lifting points: 200–1160 mm
• Required air pressure: 8–12 bar
• Required air flow: 350 L/min
• Weight: 220 kg
