Universal Marine Diagnostic Tool Jaltest PC Link
A professional, versatile diagnostic solution for boats, vessels, and other marine and heavy-duty machinery systems.
Warranty period - 24 months
Jaltest PC Link is a multifunctional solution for workshops working with various types of marine transport as well as trucks, buses, trailers, agricultural and construction equipment. Developed by COJALI, this tool combines broad coverage, data accuracy, and flexible connectivity, enabling fast problem detection and effective technical maintenance. It is designed for professionals seeking higher productivity and quality of service.
Why Choose JalTest PC Link?
- Extensive Coverage for Marine Vehicles
- Compatible with 99.5% of boats and vessels — work with most manufacturers without additional equipment.
- Versatility Across Multiple Transport Sectors
- Not limited to marine use — also applicable for trucks, buses, and commercial vehicles.
- Software Updated Three Times a Year
- Always work with the latest data, additions, and manufacturer support.
- Flexible Connectivity – USB or Bluetooth
- Connect however it’s most convenient — wireless operation up to 50 meters allows for both workshop and onboard use.
- Reliable Connection Solutions
- Universal cables and adapters included in the set ensure smooth connection to any control unit.
- Durability and Reliability
- Shock-resistant and designed for harsh environments — built for long-term use.
Jaltest Marine Diagnostic Coverage:
- Number of supported marine vehicle brands: 84 and growing
- Number of supported marine vehicle models: 1499 and growing
- Technical database entries: 2861 and growing
- Electronic diagram entries: 2137 and growing
Features:
- ECU (Electronic Control Unit) diagnostics via OBD interface or specific adapter
- Ability to connect to any diagnostic interface using a universal diagnostic cable with special terminals
- Integrated automatic multiplexer – automatic switching of K and L, CAN, and SAE lines to any OBD terminal
- Supported diagnostic protocols:
- ISO 9141-2, K/L lines
- ISO 14230 (KWP2000), K/L lines
- SAE-J1850 VPW and PWM
- ISO 11519-2
- SAE J1708
- ISO 15765-4 (OBD)
- CAN ISO 11898
- CAN (High Speed, Middle Speed, Low Speed, single-wire CAN systems)
- SCI Haldex
- RP 1210
- SAE J2534 (PASS-THRU)
Technical Specifications:
- Connects to desktop or laptop via Bluetooth or USB cable
- Bluetooth range: 20–50 m
- Minimum PC requirements: DVD drive, Windows XP, 7, 8, 10 64-bit OS, 2 GB RAM, 10 GB free disk space, USB port
- Power supply via OBD connector or 12/24 V DC power adapter
- Power consumption during operation: 7 W
- Shock-resistant housing
- Weight: 1.2 kg
- Dimensions: 183 x 131 x 56 mm
- Operating temperature: 0°C to +45°C
- Multilingual interface
- Certifications: CE, FCC, RoHS

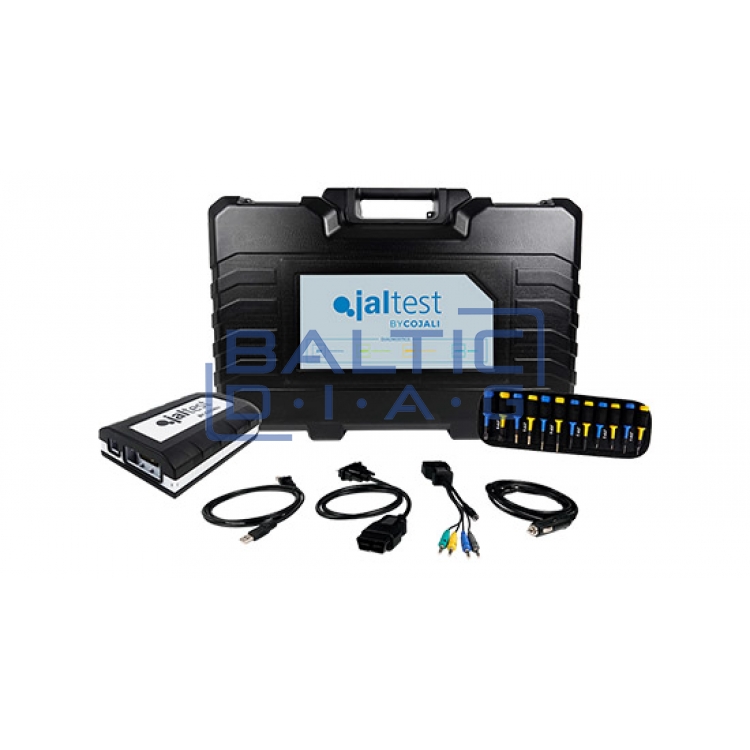

- Standard Package:
- JALTEST PC LINK interface
- OBD cable JDC213M3
- USB cable JDC107.4
- Carrying case 29380
- Universal diagnostic cable with a set of special terminals JTP96
- Power supply cables (battery and vehicle power outlet)
Optional Accessories:
- Cable set for commercial boat and vessel diagnostics
- Thermoking diagnostic cable COJALI JDC113A
- JalTest Soft + INFO Online software for truck, trailer, bus, and van diagnostics
- JalTest Soft + INFO Online annual (12-month) update subscription
- Software package for truck and tractor diagnostics
- Software package for bus diagnostics
- Software package for van and commercial vehicle diagnostics
Who Is This Device For?
- JalTest PC Link is a perfect solution for diagnostics specialists, independent technicians, and workshops that work with boats, vessels, inboard and outboard engines, and other marine systems. The device is designed for those who seek a single, reliable tool for multiple tasks.
