Tire Pressure Sensor (TMPS) Diagnostic Kit, Launch MOT IV with TSGun
Tire Pressure Sensor (TMPS) Diagnostic Kit, Launch MOT IV with TSGun
Tire Pressure Sensor (TMPS) Diagnostic Kit, Launch MOT IV with TSGun
Tire Pressure Sensor (TMPS) Diagnostic Kit, Launch MOT IV with TSGun
Tire Pressure Sensor (TMPS) Diagnostic Kit, Launch MOT IV with TSGun
Tire Pressure Sensor (TMPS) Diagnostic Kit, Launch MOT IV with TSGun
Tire Pressure Sensor (TMPS) Diagnostic Kit, Launch MOT IV with TSGun
Tire Pressure Sensor (TMPS) Diagnostic Kit, Launch MOT IV with TSGun
Tire Pressure Sensor (TMPS) Diagnostic Kit, Launch MOT IV with TSGun

Tire Pressure Sensor (TMPS) Diagnostic Kit, Launch MOT IV with TSGun

  • SKU: BD16748
1,299.00 €

Prices shown include tax

Send Message

Description

Tire Pressure Sensor (TMPS) Diagnostic Kit, Launch MOT IV with TSGun

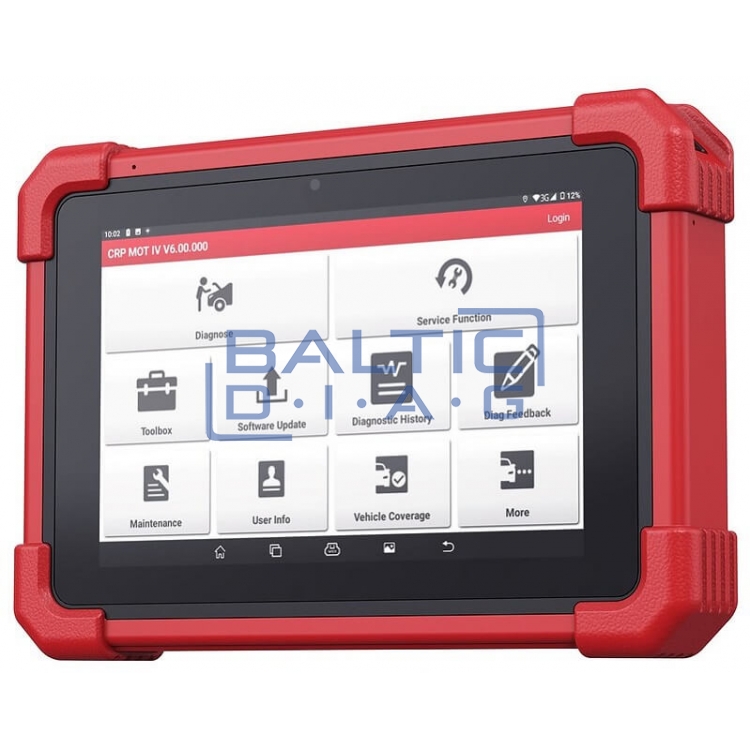

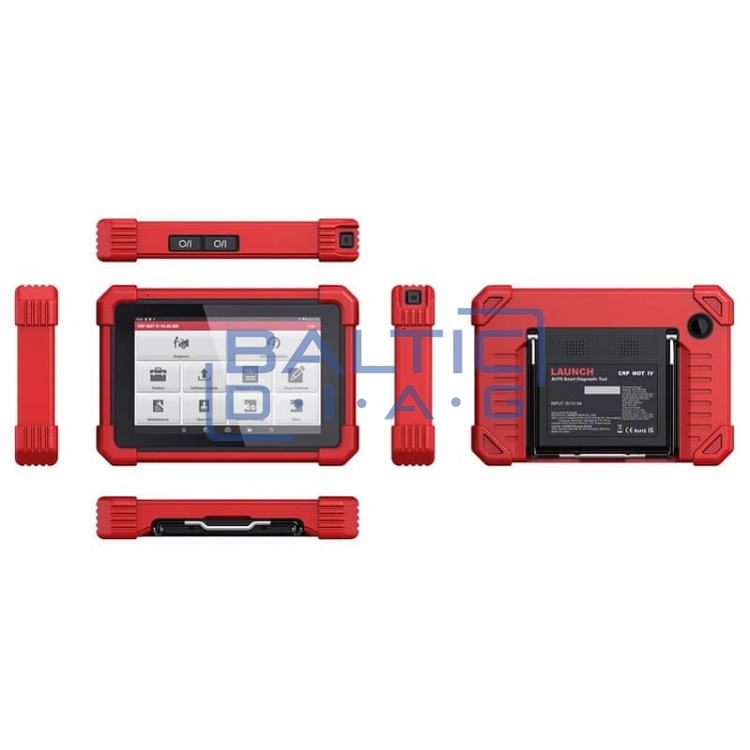

This diagnostic equipment consists of Launch CRP MOT IV - universal diagnostic equipment and special devices for servicing tire pressure sensors (TPMS). Car diagnostics with wide system coverage, capable of serving more than 90 car brands (American, European and Asian), including functions such as fault code scanning and detailed description, error code erasing, component activation and testing, standard diagnostics according to OBD- II protocols and 31 most common special maintenance functions, coding and adaptations. The main unit has been updated as a rugged tablet with a 10.1" touch screen Android (10.0) operating system that performs diagnostics via a wireless (Bluetooth) interface and uses the new DBScar VII connector. CRP MOT IV is intended for both professionals and amateurs, for use in service stations, private garages or at home. Manufacturers of the Launch diagnostic device - specially made a device with extended limits of possibility and presents a universal device with a TPMS diagnostic data package. It's everything in one device you could ever need. With this diagnostic tool, you will have tremendous help and technological support that will enable you to actively carry out TPMS and car diagnostics and repairs. The package includes a base unit based on Android OS, Bluetooth DBScar VII 16-pin connector, OBD connector cable, DoIP adapter, BMW-20 and MB-38 connectors, charger with USB cable, case, TSGUN programming device, 10 aluminum gray tires pressure sensors (TPMS) and 10 rubber, black color pressure sensors (TPMS).


Features:
  • Automatic reading of the car's VIN
  • Automatic scan of all vehicle systems
  • Error code scanning with explanations provided
  • Erasing error codes
  • Data scanning and real-time display
  • Representation of data in numerical or graphical form
  • Activation and verification functions of various components
  • 31 special service/service functions
  • Built-in diagnostic support function
  • Saving the performed diagnostic work
  • Configuring the report of performed diagnostic work with the option to print it
  • Special functions for programming/reading TPMS sensors
Technical parameters:
  • Processor: 2.0 GHz, quad-core
  • Software: Android 10.0
  • RAM: 4 GB
  • Internal memory: 64 GB
  • Battery: 47.88 Wh (7.6 V; 6300 mAh)
  • Display: 8", 1280 x 800
  • Camera: front 5 Mgpx + rear 8 Mgpx
  • Wi-Fi: 2.4 GHz / 5 GHz
  • Connectors: 1 x Type A and 1 x Type C
  • Dimensions: 274 x 190.5 x 40.5 mm
Newly designed VCI - DBSCar VII
  • Fast instant car diagnostics using Bluetooth connection
  • Much more stable connection with DBSCar VII
  • Supports various protocols: CAN FD / CAN / SCAN / FCAN; DoIP (additional cable required); KWP / L-line; J1850 PWM/VPW/Chrysler CCD etc.

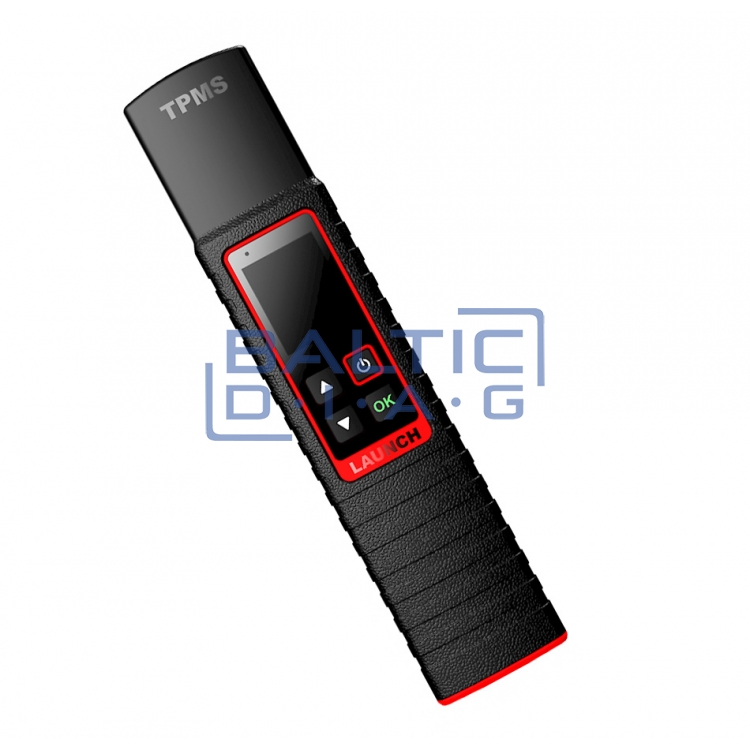

Tire pressure sensor reading and programming device Launch TSGUN:

Launch X-431 TSGUN is a professional TPMS module with built-in sensor activation, reading, programming and training function. It reads information such as tire pressure and temperature and works with sensors that have signals of different frequencies. The X-431 TSGUN is easy to carry and easy to operate. It can only be used with LAUNCH X-431 diagnostic devices and offers a complete solution on the subject of tire pressure monitoring systems. Also, compatible with old version of LAUNCH TPMS sensors. The LAUNCH RF (Radio Frequency) sensor or also called TPMS sensor is a universal TPMS sensor for the aftermarket. As an RF sensor, it can only be programmed with the X-431 TSGUN and in conjunction with the LAUNCH X-431 series.


Features:
  • TPMS function: 315 / 433 MhZ
  • Tech-In process via OBD interface
  • ID generation - automatic or manual
  • Supports 98% of all models
  • Reads tire pressure data
  • ID sensor - reads, copies, programs
  • Detailed description of functions
  • Supports reprogramming
Technical data:
  • Display: 1.77 inches, 168 x 128
  • DC input voltage: 5V
  • Battery: 3,000 mAh lithium
  • Operating temperature: - from 10 to 50 ° C
  • Working current: ≤1A
  • Dimensions: 252 x 54 x 30 mm
  • Weight: 450 g
  • Interface: Bluetooth
The set includes:
  • CRP MOT 4 diagnostic device
  • Launch a new design equipment case
  • BDScar VII VCI module
  • DoIP cable
  • USB cable (Type A to Type C)
  • VCI connector cable
  • Charger
  • TSGUN Tire Pressure Sensor (TPMS) Programmer

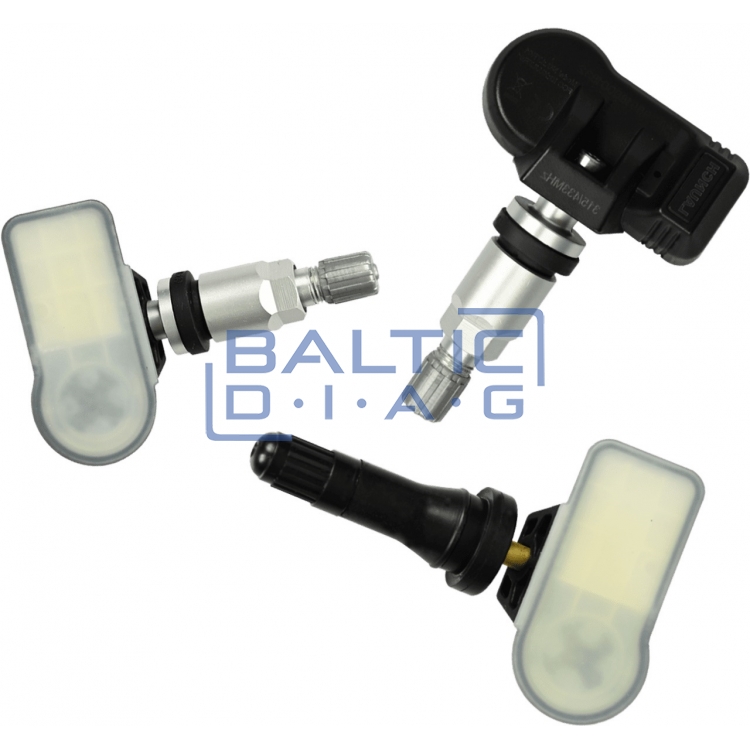

  • Aluminum,gray tire pressure sensors (TPMS) x 10 pcs.
  • Rubber, black tire pressure sensors (TPMS) x 10 pcs.
