Spot welding equipment GYS Capatek 66 FV

Spot welding equipment GYS Capatek 66 FV

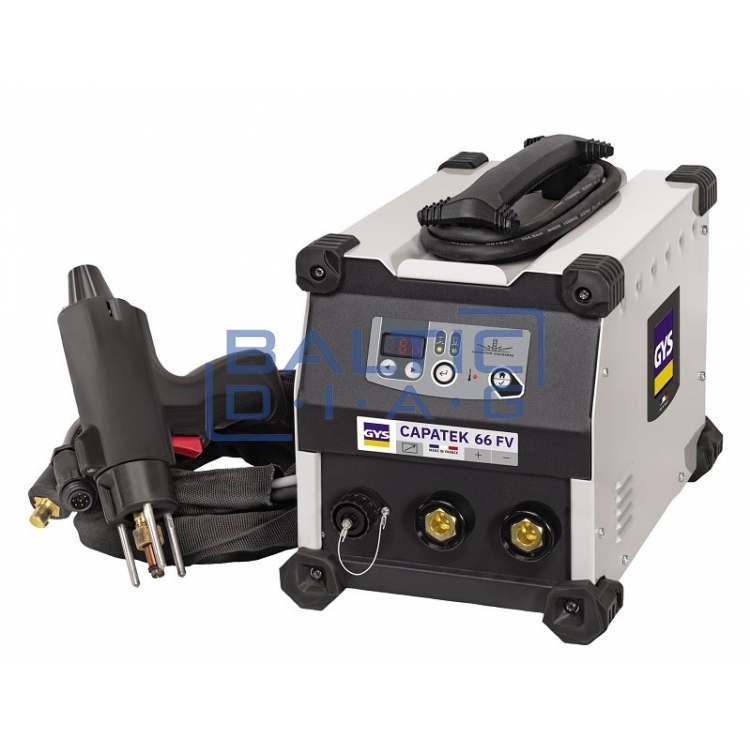

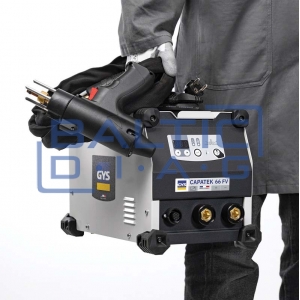

This GYS Capatek 66 FV is an industrial spot welding device with the capacitor discharge operating principle. It can easily weld studs with diameters from M3 to M8 and made of copper, stainless steel, and even on extremely thin sheet metal. Such a welding device does not leave any marks or deformations. The device's revolutionary ergonomic contact welding handle has an adjustable clamping force and ensures extremely fast welding. The "FV" technology used allows the device to be used with a variety of single-phase mains sources with voltages from 85 V to 265 V.

Maximum power:

• 66 mF capacitor discharge
• Charging time is approximately 0 to 5 seconds.
• A wide selection of studs from M3 to M8
• Compatible with studs from 6mm to 40mm in length

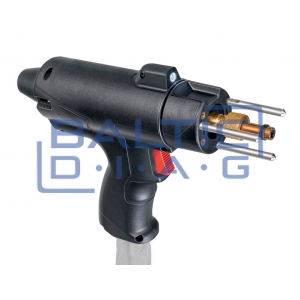

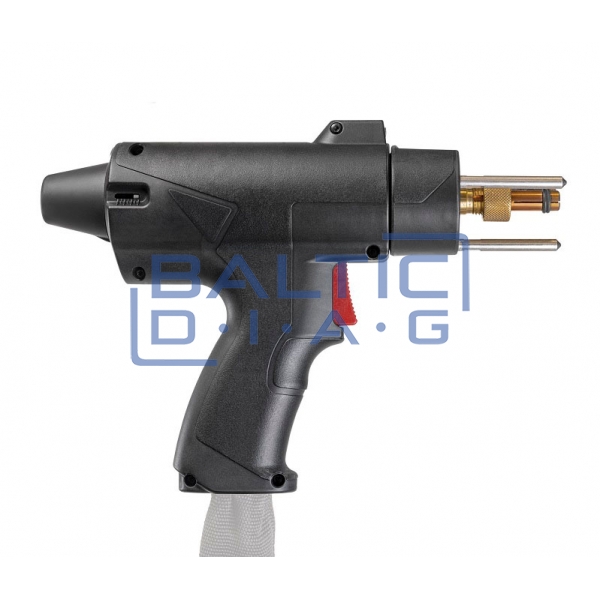

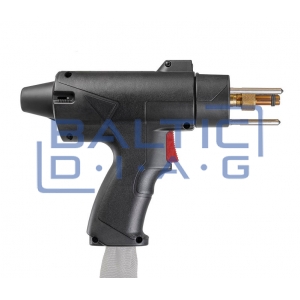

Contact gun:

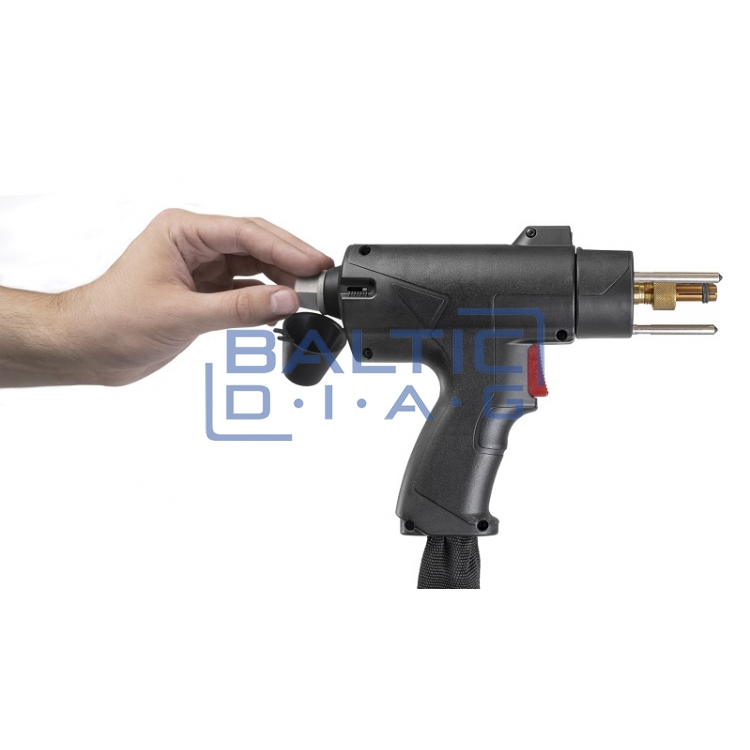

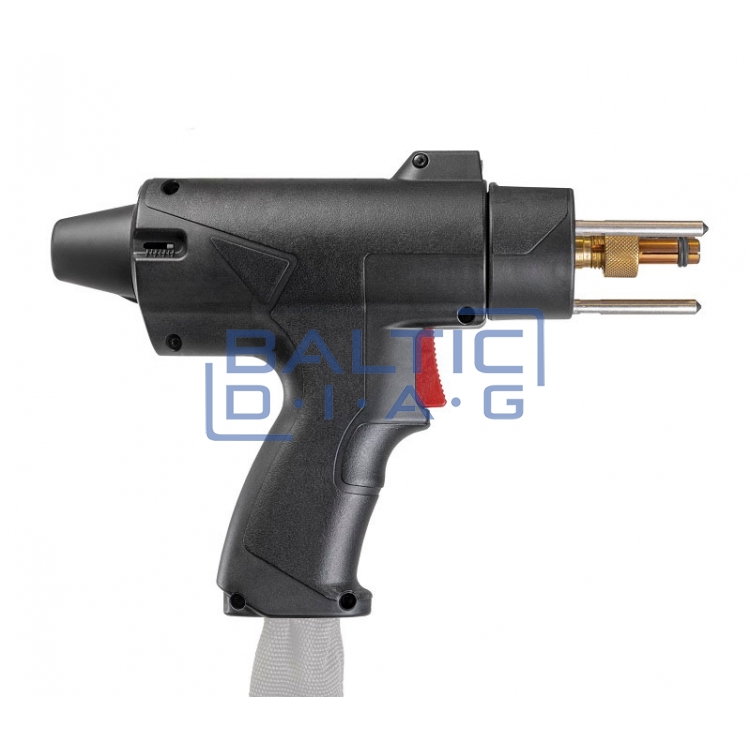

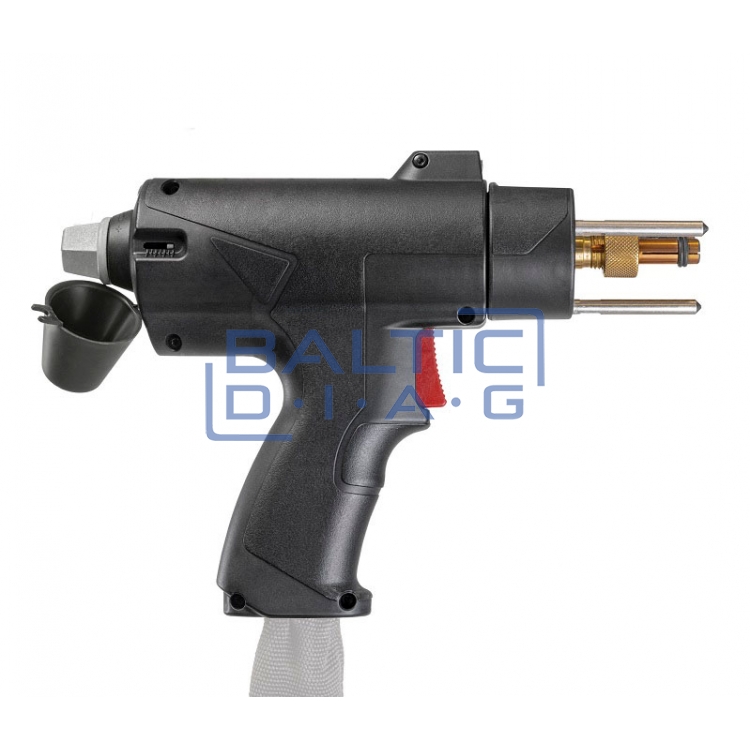

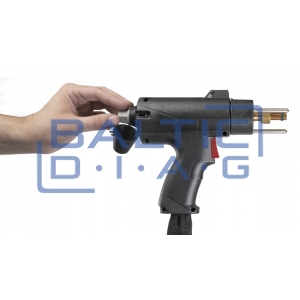

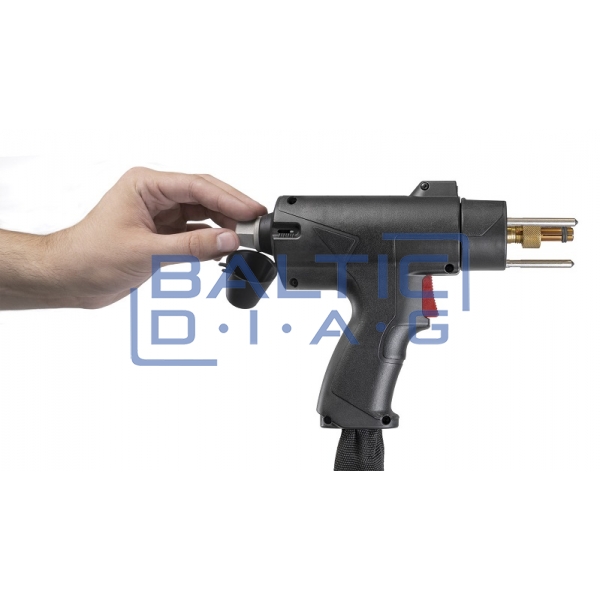

• Adjustable power from 25 to 100 N, with a protective cover that prevents accidental changes to parameters

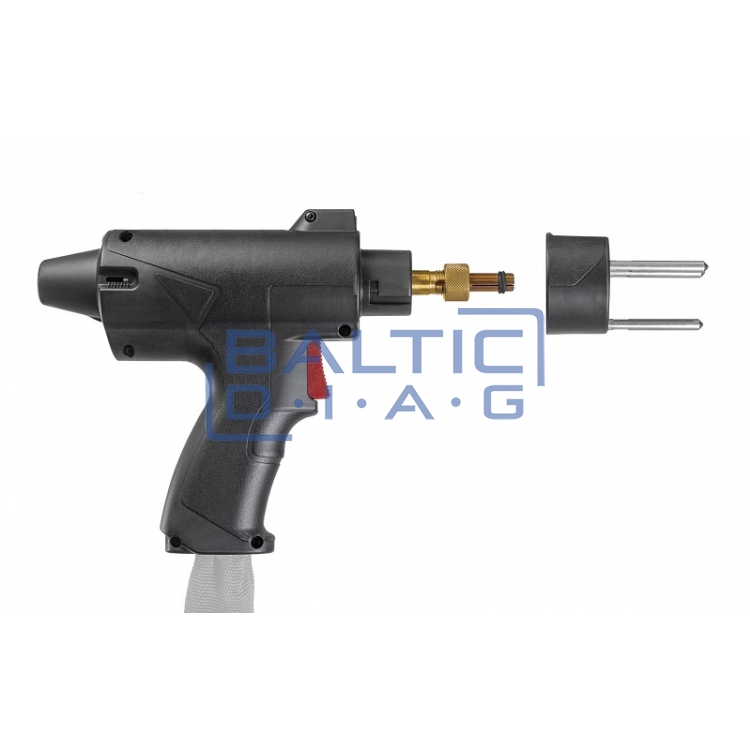

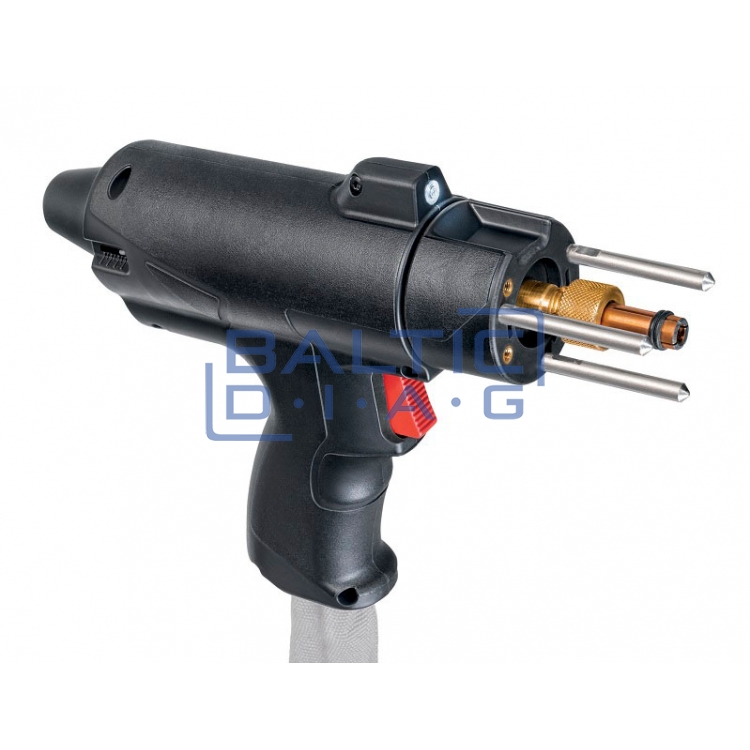

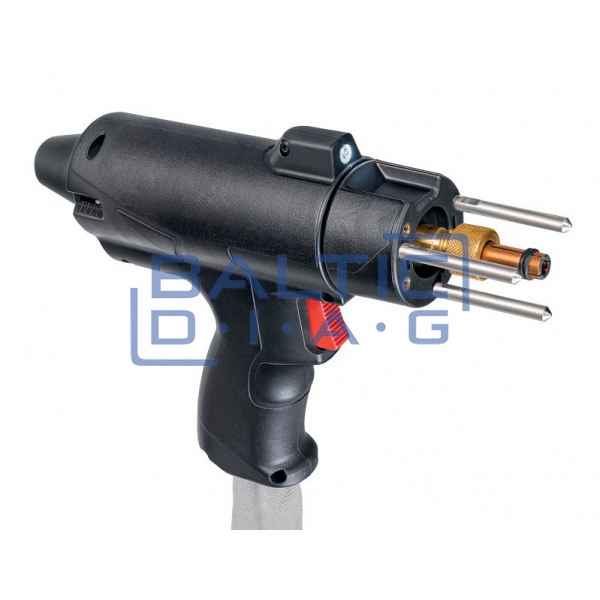

• The tripod design with bayonet ensures greater stability of the gun during welding and makes it easier to install it in the right place
• A conventional trigger that performs a conventional welding action

Built-in LED lighting of the welding area with unique functions:

• Rapid flashing of the LED - when an error has occurred, the device has a very high load
• Slow flashing of the LED - the set number of studs has been reached

Intuitive control screen:

• Adjustable voltage from 50V to 200V
• Locking parameters
• Stud counter with adjustable threshold (possibility of increasing or decreasing)

Industrial design:

• Equipped with protection against voltage surges up to 400 V (Protect 400)
• The body is strengthened and special grounding pads are installed, which protect against electric charge
• Easy to change welding polarity with 30 / 50 bayonet connector
• Complete with a two-piece ground terminal to help prevent electromagnetic fields

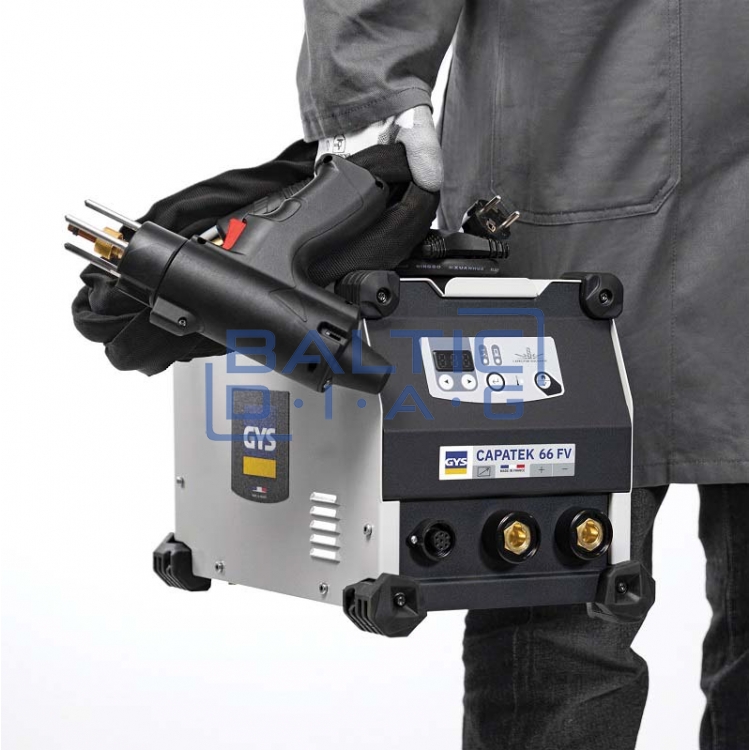

• Main cable holders are integrated in the handle
• Automatic standby mode

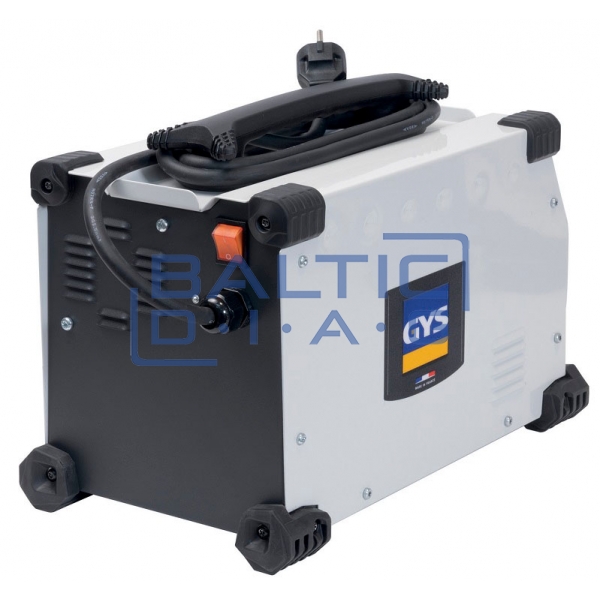

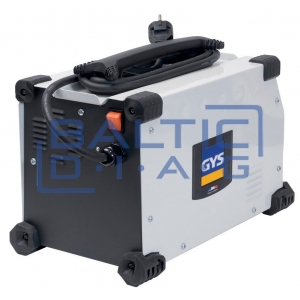

• On/off button on the back of the device
• Connection of the cooling system of the device in case of need

Technical parameters:

• Supply voltage: 85 - 265 V / 1 fz
• Frequency: 50 / 60 Hz
• Power cord length: 2 m
• Current used: 5 A
• Maximum electric current produced: 13000 A
• Capacitor capacity: 66 mF
• Operating voltage: 50 - 200 V
• The possibility of welding studs with the size: M3 - M8
• Contact gun weight: 450 g
• Gun cable length: 4 m
• Ground wire length: 4 m
• Dimensions: 240 x 290 x 390 mm
• Protection class: IP21

Complete set:

• Capatek 66 PV unit
• Contact gun
• Two-piece ground terminal
• Clamp for M6 studs
