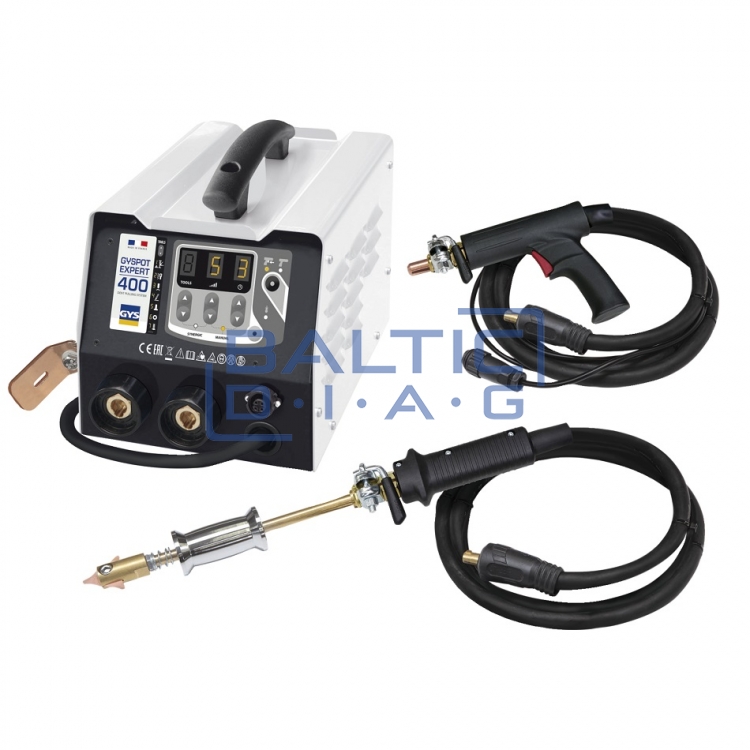

Sheet metal deformation straightening equipment GYS gyspot expert 400

Sheet metal deformation straightening equipment GYS gyspot expert 400

GYS, France; Warranty: 24 months

Description:

With a maximum output current of 4500 A, the GYSPOT expert 400 point body straightener is the ideal tool for straightening thin car body parts (hood, doors, roof). This body repair device is multifunctional and therefore complete. Extremely convenient thanks to two pistols, one automatic, one controlled trigger, and a convenient control panel.

• For use with 400V 2-phase source, with 16A fuse.
• Manual mode: the user can select the welding current and time according to the required parameters.
• Synergic mode: The device uses the recommended settings. The power is determined by the tool you select.
• Automatic welding: welding is started by fusing the tool to the workpiece
• Manual welding: Welding starts when the tool is in contact with the workpiece and the trigger is pressed.
• Seven programs: straightening of dents; welding of corrugated wires or tension rings; use of carbon electrodes for steel shrinkage; welding of keys for perpendicular beams; welding of rings to secure the ground; welding of studs for repairing the connection of the ground and power cables to the car.

Technical parameters:

• Power supply: 400V, 50 / 60Hz, 2 phases (230V version available gyspot expert 230, code: 058842)
• Fuse: 16A
• Average current: 3200 A
• Maximum current: 4500 A
• Voltage: 7.4 V
• Dimensions: 225 x 360 x 235 mm
• Weight: 31.5 kg
• Code: 058859

Equipment:

• Ground cable, 70 mm2, 2 meters long
• 2 pcs. Multifunction pistols (2 m long, 70 mm2 cable with connectors): inertial hammer, star alignment; welding of studs, rivets and rings; contact contraction; graphite pencil.
• 8 meter power cable
• Accessory box
