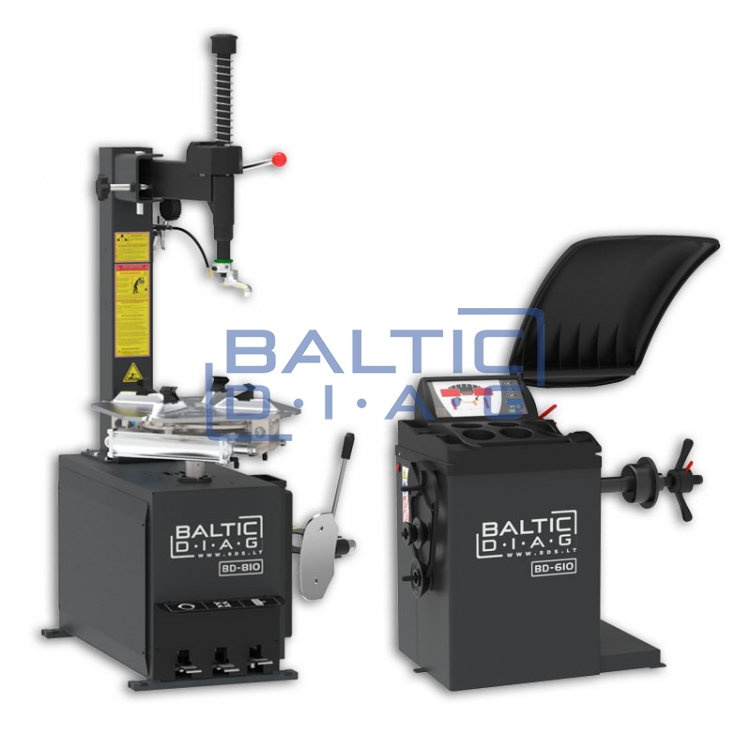

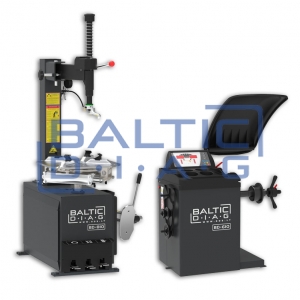

Set of tire changer and wheel balancing machines BD-810 + BD-610

Semi-Automatic Tire Mounting Machine BD-810 and Automatic Wheel Balancing Machine BD-610 Set

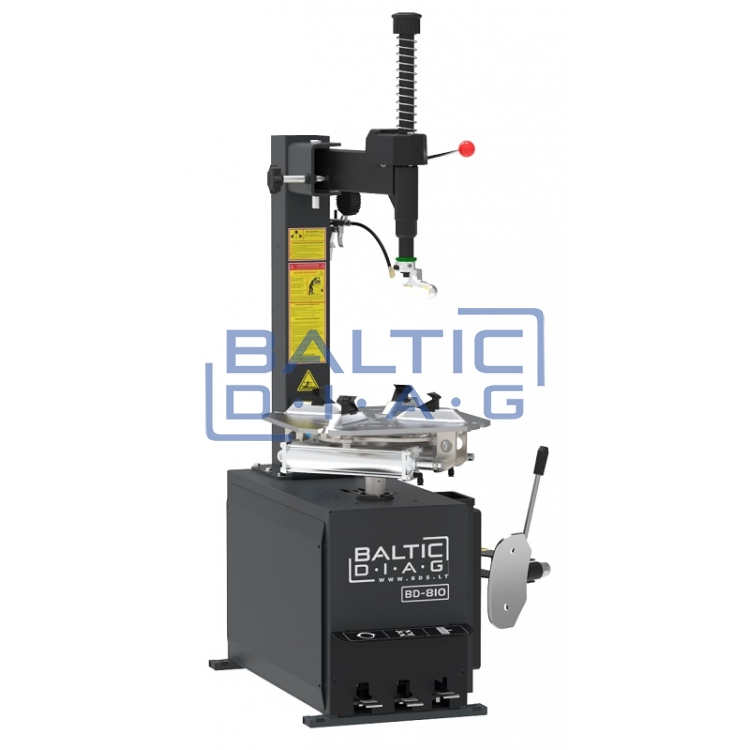

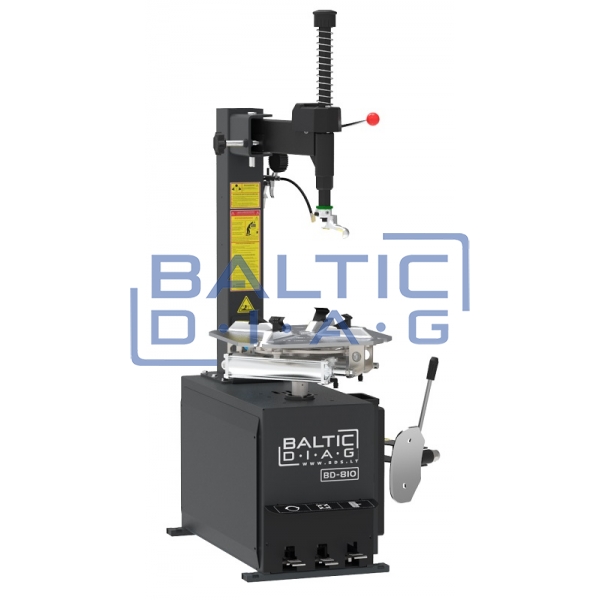

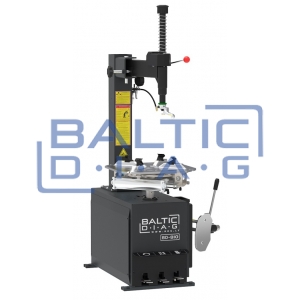

Tire Mounting Machine BD-810

• Steel tire mounting head – ensures durability and includes replaceable plastic protectors to prevent rim scratches.
• Rim clamping jaws – self-centering rim clamps use two pneumatic cylinders to ensure secure and reliable rim fixation.
• Removable pedal mechanism – enables easier and faster maintenance.
• Swiveling mounting arm – the arm moves horizontally and has a 36 mm hexagonal shaft with a locking handle.
• Powerful bead breaker blade – generates a force of up to 2700 kg.
• Tire inflation gun with a pressure gauge – enables convenient and quick tire inflation and pressure control.

• Clamping inner rim diameter: 12" – 24"
• Clamping outer rim diameter: 10" – 22"
• Maximum wheel diameter: 960 mm
• Maximum wheel width: 3" – 15" | 76 – 380 mm
• Bead breaker force: 2700 kg (27000 N)
• Operating pressure: 8 – 10 bar
• Electric motor power: 1.1 kW
• Machine power supply: 230 V / 50 Hz / 1-phase

• Tire mounting paste bucket x 1 unit
• Tire mounting paste brush x 1 unit
• Plastic protector for mounting finger x 1 unit
• Plastic protector for bead breaker blade x 1 unit
• Plastic protectors for clamping jaws x 4 units
• Mounting lever x 1 unit

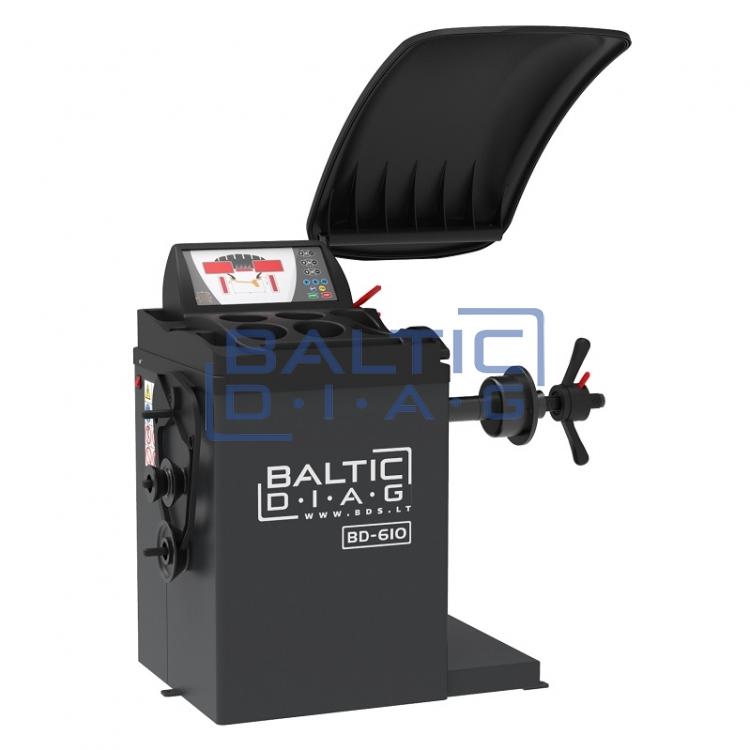

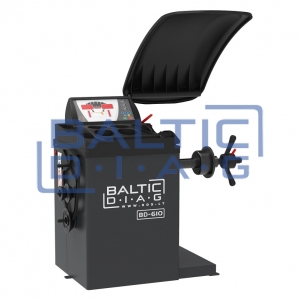

Automatic Wheel Balancing Machine BD-610

• Main wheel balancing shaft – 40 mm diameter shaft with longitudinal surface grinding and high-quality thermal treatment. The aluminum drive pulley is corrosion-resistant, ensuring long-term safe and reliable use.
• Side equipment pins – allow easy access to balancing cones and other accessories.
• Control panel – equipped with an LED screen and specialized buttons to enter necessary data and select the balancing program. Additional LED indicators display wheel imbalance parameters, results, and balancing positions.
• 2D ruler – made of aluminum alloy with highly accurate measurement parameters, enabling precise data entry into the balancing machine. This ruler also helps mark the exact location for attaching balancing weights.
• Protective wheel cover – standard cover that controls the machine’s start and stop operations.
• Balancing operations – includes dynamic balancing, static balancing, three ALU rim balancing modes, and an adjustable OPT function for precise correction.

• Balancing rim diameter: 10" – 28"
• Maximum wheel diameter: 1000 mm
• Wheel width: 1.5" – 20" | 38 – 510 mm
• Rotation speed during balancing: 200 rpm
• Maximum wheel weight: 70 kg
• Balancing accuracy: ± 1 g
• Electric motor power: 0.25 kW

• Balancing cones of different sizes x 4 units
• Wheel width measurement ruler x 1 unit
• Quick-release clamping nut x 1 unit
• 100 g calibration weight x 1 unit
• Pliers for working with balancing weights x 1 unit
• Cone spring x 1 unit
• Mounting adapter with spindle protection x 1 unit
