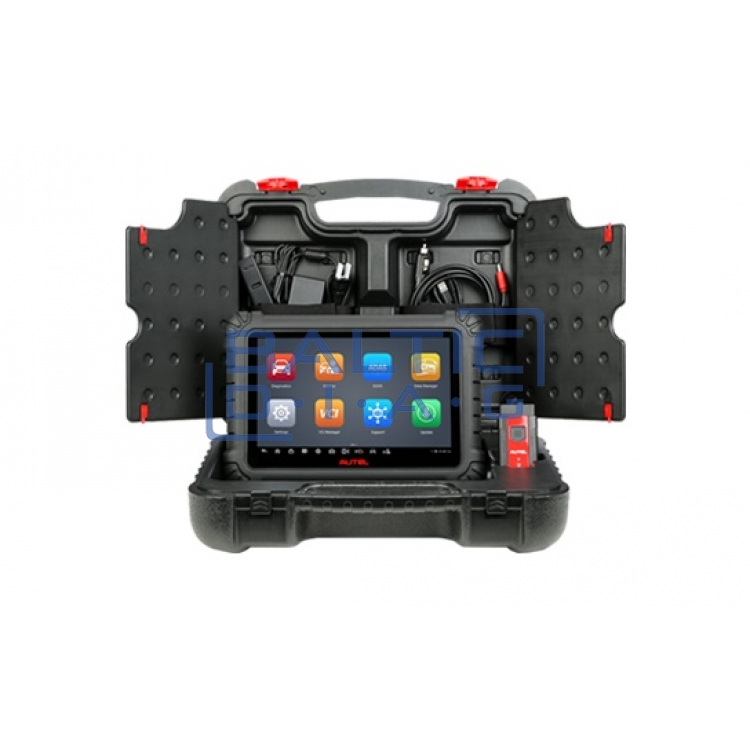

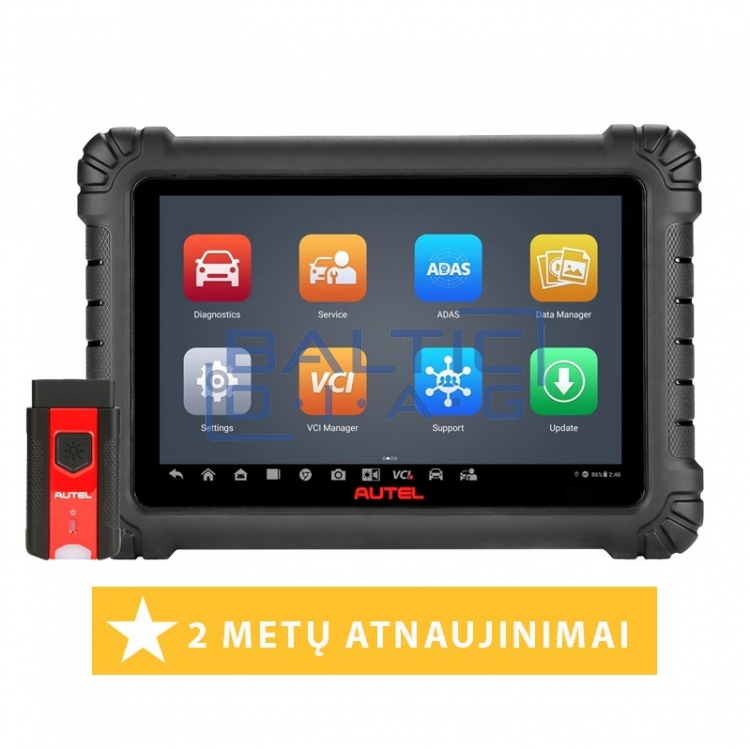

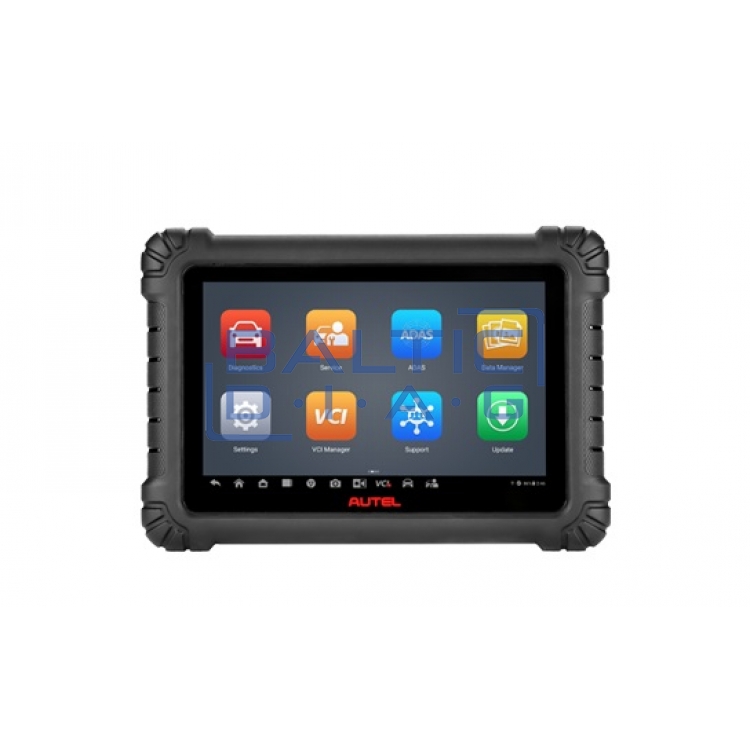

Professional Diagnostic Tablet AUTEL MaxiSYS 906MAX with Bluetooth VCI

Professional Diagnostic Tablet AUTEL MaxiSYS 906MAX with Bluetooth VCI

Manufacturer: AUTEL, warranty period - 24 months, free license updates for 24 months

The MaxiSYS 906MAX is a 10.1-inch Android-based wireless diagnostics and service tablet with professional capabilities. Featuring industry-leading coverage of U.S., Asian, and European vehicles, 1996 and newer. Perform Pre- and Post-Scans, all-systems diagnostics including reading and erasing codes, viewing and graphing Live Data, and performing bi-directional tests and services including Active Tests and Special Functions. Advanced functionality includes coding and adaptations. Features extensive, vehicle-specific, direct-to-system service and maintenance tasks. Quickly execute 40 service tasks including oil light reset, DPF regen, steering angle sensor reset, airbag reset, occupancy seat reset and brake bleed. Includes Bluetooth-enabled MaxiVCI V200 supporting standard and advanced vehicle communication protocols. Easily share customizable reports via email and text. Supports direct battery, starter and charging system testing, and videoscope capability with additional purchases. Includes one year free software updates and is covered by one-year Limited warranty.

Benefits:

• 10.1-inch touchscreen wireless professional diagnostics and service tablet
• Extensive vehicle coverage of U.S., Asian and European vehicles, 1996 and newer
• Perform all-systems diagnostics including read and erase codes, view and graph Live Data
• Perform bi-directional Active Tests and Special Functions
• Extensive service and maintenance task menu
• Perform coding and adaptations
• Includes Bluetooth-enabled MaxiVCI V200 for support of standard and advanced communication protocols
• 128GB storage and extended battery life
• Supports direct battery, starter and charging system testing and videoscope use with additional product purchases

Technical Specifications:

• Model: MS906 MAX
• Operating System: Android 10
• Processor: Octa-core processor
• Memory: 4 GB RAM & 128 GB onboard storage
• Battery: 11,600 mAh 3.85 V lithium-polymer battery
• Display: 10.1-inch LCD touchscreen with 1920 x 1200 resolution
• Camera (Rear): 13 MP

Connectivity:

• Wi-Fi (802.11 a/b/g/n/ac)
• Bluetooth 5.0 (BR/EDR + BLE)
• GPS
• USB 2.0 (two USB Type A, one Mini USB)
• SD Card support (up to 256 GB)
• Audio Input/Output:
• Microphone
• Dual speakers
• 3.5 mm headset jack (3-band or 4-band)
• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Storage Temperature: -10 °C to 60 °C (14 °F to 140 °F)

Supported Protocols:

• ISO13400, CAN FD, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS
• SAE-J2411 Single Wire CAN (GMLAN), ISO-11898-2, ISO-11898-3
• SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230
• SAE-J2610 (Chrysler SCI), UART Echo Byte
• SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS)
• Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1
• SAE-J2819 (VAG KW81), KW82, SAE J1708
• SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
