Power Testing Stand for Tractors and Harvesting Machines PT 401

Power Testing Stand for Tractors and Harvesting Machines PT 401

Country of Origin: Germany, warranty period - 24 months

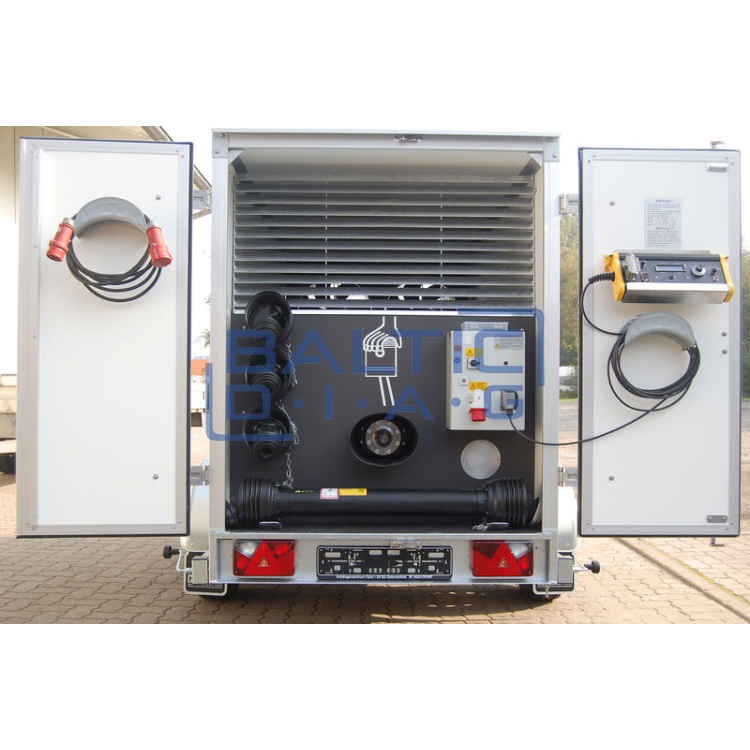

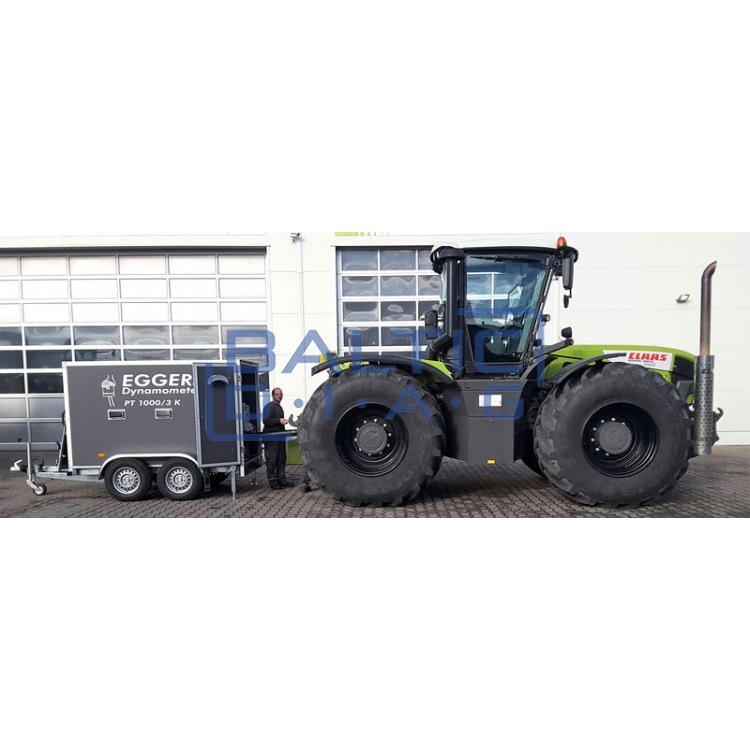

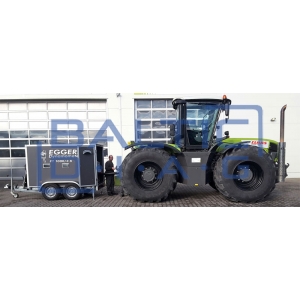

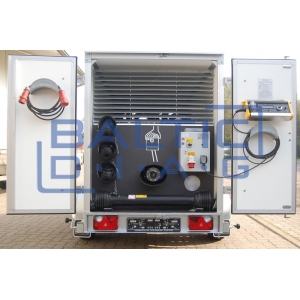

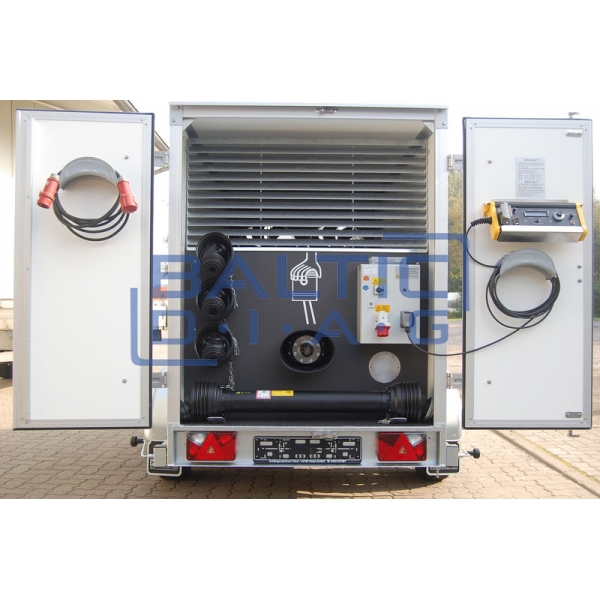

The PT 401 is a modern and powerful power testing stand designed for measuring power and torque in tractors and harvesting machines. This stand can be used either in a mobile version on a chassis (PT 401 K) or as a stationary workshop version (PT 401 W). With its high power capacity and precise measurement, the PT 401 delivers reliable results even for the most powerful engines, meeting the needs of modern agricultural machinery.

Functions:

• Accurate measurement of power, torque, and RPM
• Quick test up to 900 kW (1224 HP), full load curve up to 510 kW (694 HP)
• Usable in both mobile and stationary modes
• Torque measuring hub ensures maximum accuracy
• Measurement in both rotational directions

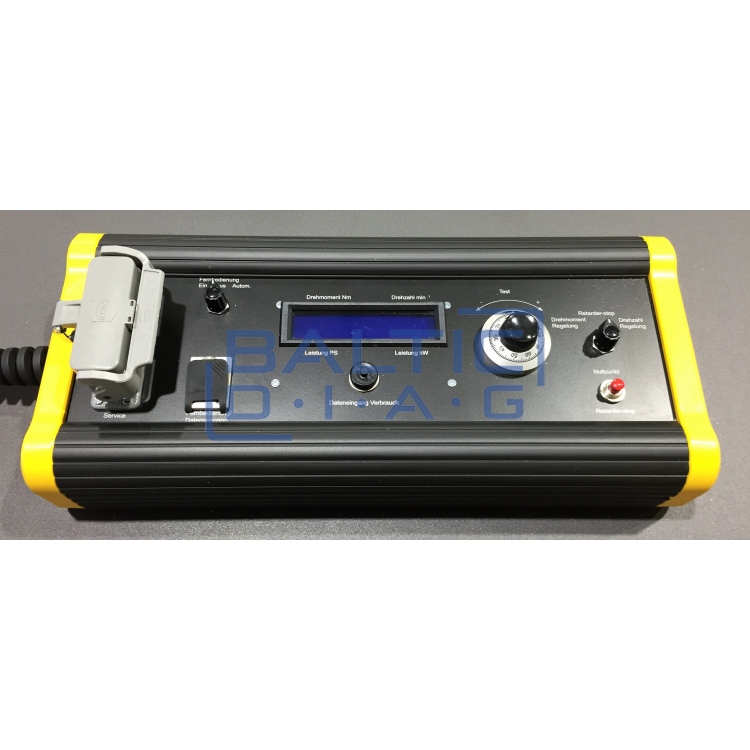

• Digital display showing power (kW, HP), torque, and RPM
• Efficient cooling via high-performance electric fans (17,000 m³/h)
• Optional use of “PowerControl” software (additional)
• Optional measurement of fuel consumption

Technical Specifications:

• Brake System: 3 retarder system (eddy current brakes, maintenance-free)
• Cooling: Air cooling via electric fans
• Measurement Range:
• Quick test: 900 kW (1224 HP)
• Full load curve: 510 kW (694 HP)
• Maximum RPM: 2500 1/min (optionally up to 3600 1/min)
• Maximum Torque: 9000 Nm
• Accuracy: 0.5% of the measured value
• Power Supply: 400V/230V, 16A

Dimensions and Weight:

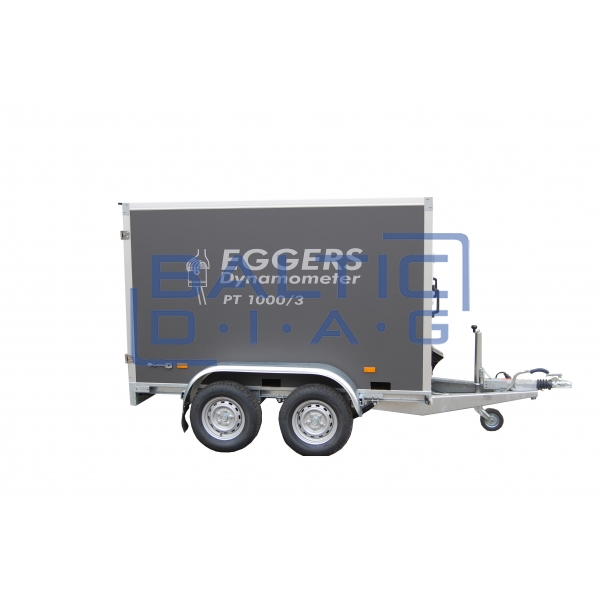

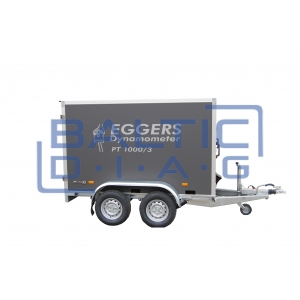

• PT 401 K (Road Version): Length: 3900 mm, Width: 1750 mm, Height: 2000 mm; Weight: 2100 kg, permissible total weight: 2700 kg
• PT 401 W (Workshop Version): Length: 2400 mm, Width: 1300 mm, Height: 1600 mm; Weight: 1800 kg

Frame: Galvanized steel frame, walls made of Multiplex material and aluminum

Standard Equipment: User manual, connection plug

Optional Equipment (at extra cost):

• PTZUB-002: “Power Control” software with cable operation – 1799 EUR
• PTZUB-003: “Power Control” software with Bluetooth operation – 2499 EUR
• PTZUB-019: Device for lifting the dynamometer with a forklift – 1299 EUR
• PTZUB-014: Additional fan cooling – 499 EUR
• PTZUB-015: Shock absorbers for speeds up to 100 km/h – 349 EUR
• PTZUB-009: Operating hours counter – 329 EUR
• PTO Cardan Shaft (1⅜/6Z - 1¾/6Z): Bandioli or Waltersheiden for trailers – 1399 EUR (incl. VAT)
• Calibration, 1-day registration in Germany (DE), TÜV certification, and lighting equipment – 949 EUR
