Power Testing Stand for Tractors and Agricultural Machinery PT 501 G

Power Testing Stand for Tractors and Agricultural Machinery PT 501 G

The standard PT 501 G version has a maximum power capacity of 680 HP (500 kW), while the PT 501 G+ version offers increased power measurement up to 1000 HP (735 kW).

Country of Origin: Germany, warranty period - 24 months

The PT 501 G and PT 501 G+ are modern power testing stands designed for measuring power and torque in tractors and other agricultural machinery. These devices can be used either in workshops or on the road, depending on the model version. The testing stand ensures high precision and long-term load capacity by utilizing a generator and load resistors as the braking medium.

Available Versions:

• 501 GW: Workshop version.
• 501 GM: "Eggers Dynamometer PT 501 GM" Modular version.

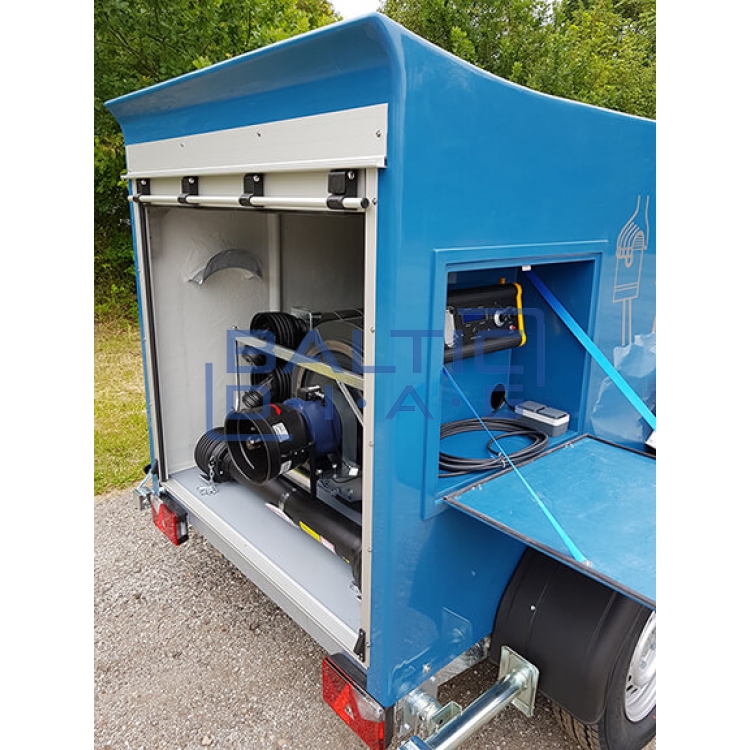

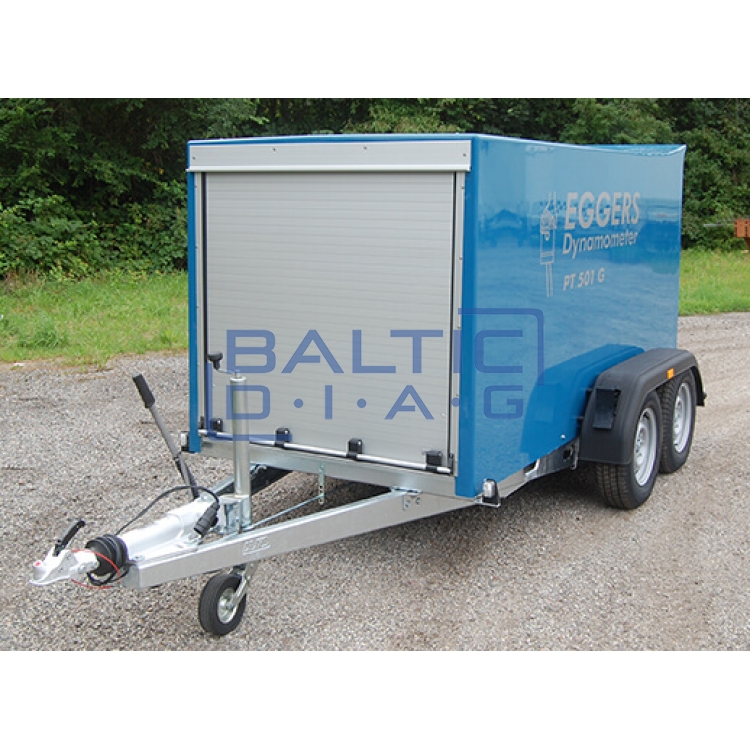

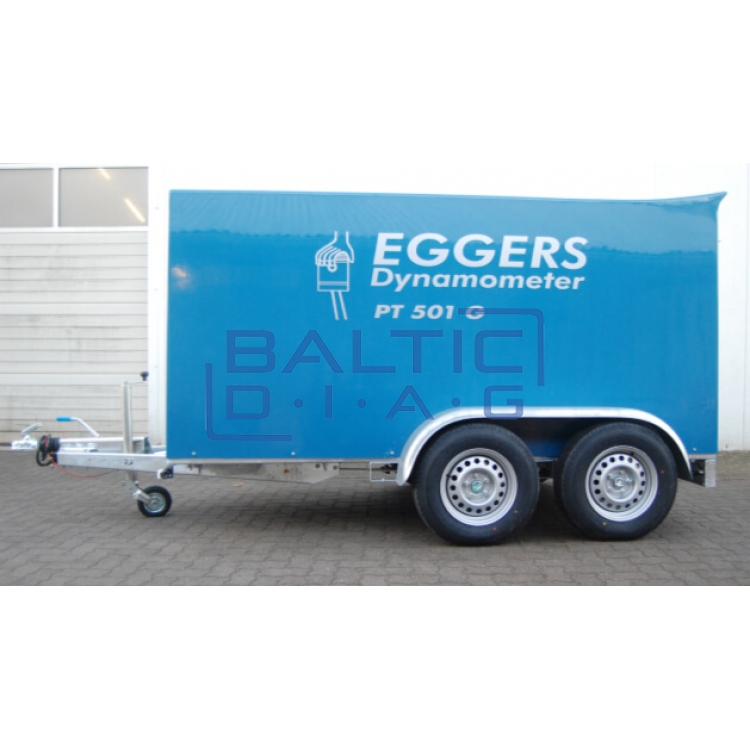

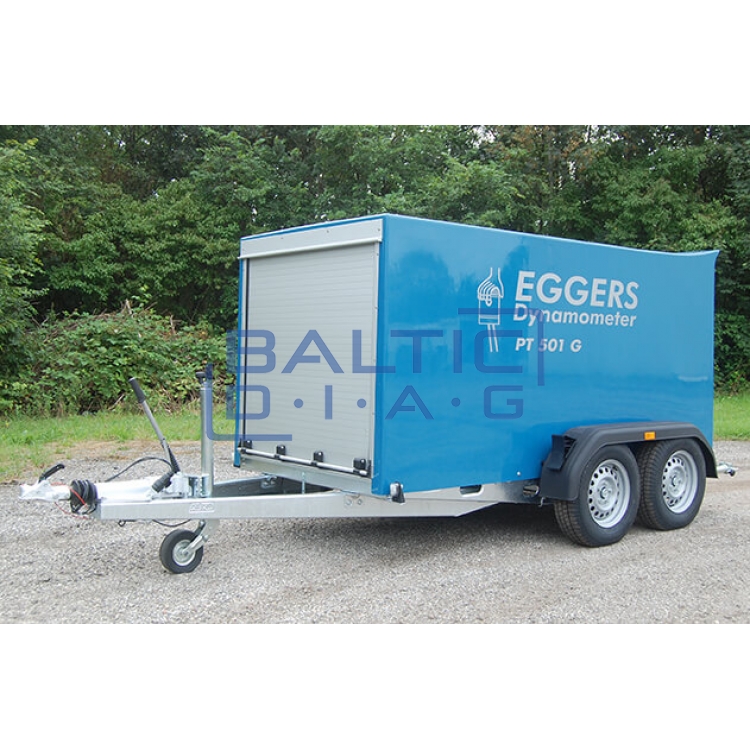

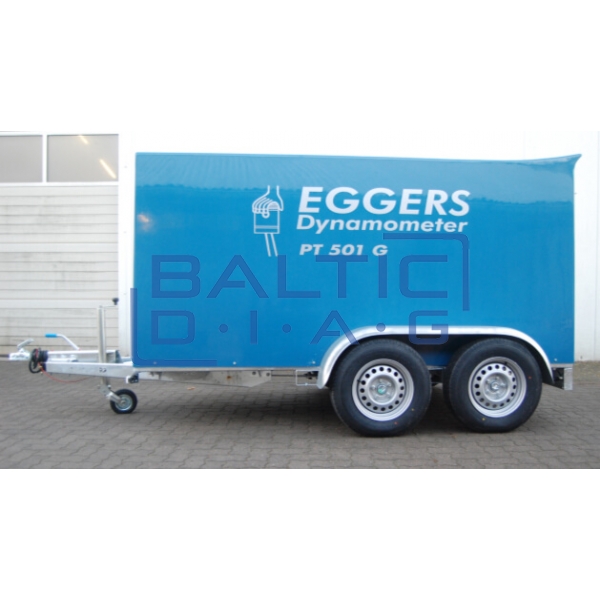

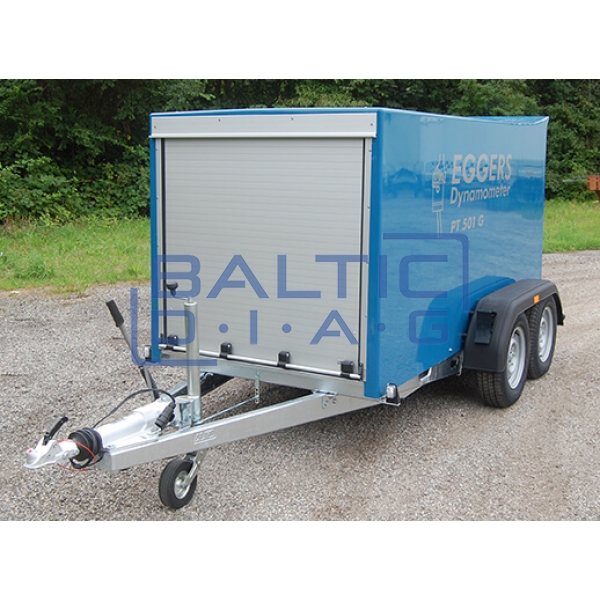

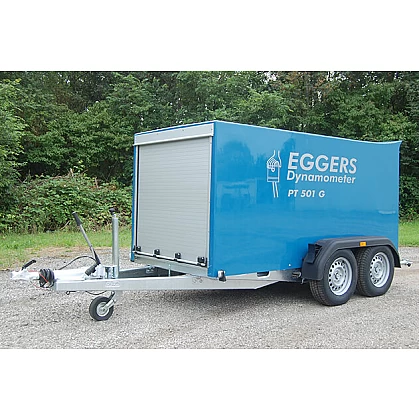

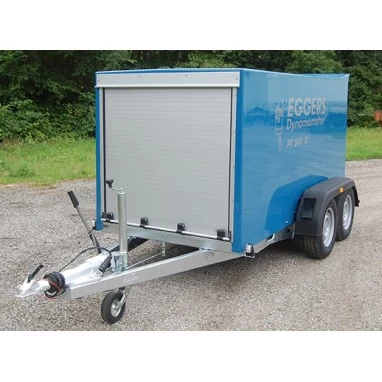

• 501 GS: "Eggers Dynamometer PT 501 GS" Mobile road version.

Additional Version:

• PT 501 G+: Increased power measurement up to 1000 HP – Price: 7499 EUR (incl. VAT).

Functions:

• Accurate measurement of power, torque, and RPM
• Choice between road or stationary workshop versions

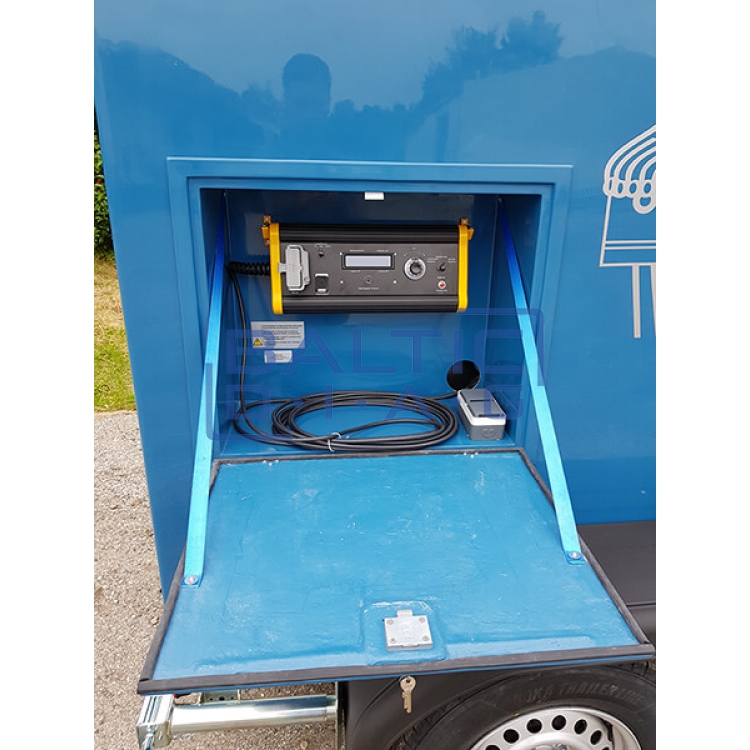

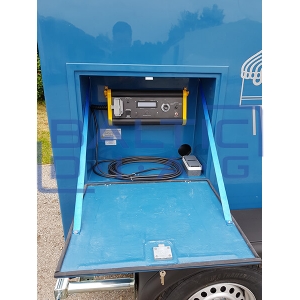

• Digital display showing power (kW, HP), torque, and RPM
• Optional PC software: „Eggers PowerControl“
• Capable of measuring in both rotational directions

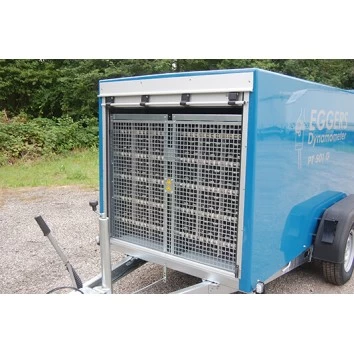

• Efficient cooling via a high-performance electric fan
• Optional remote control via Bluetooth or cable

Technical Specifications:

• Brake System: Generator and load resistors
• Cooling: Air cooling via electric fan
• Measurement Range:
• 1000 RPM and 20°C: Up to 500 kW (680 HP)
• 1800 RPM and 20°C:
• PT 501 G: Up to 680 HP
• PT 501 G+: Up to 1000 HP
• Maximum Torque: 4800 Nm
• Maximum Permissible RPM: 2200 1/min
• Accuracy: <0.5 %
• Power Supply: 230 V, 16A safety plug

Dimensions and Weight:

• Workshop Version (501 GW): Length: 3000 mm, Width: 1400 mm, Height: 1900 mm
• Mobile Road Version (501 GS): Length: 4580 mm, Width: 2050 mm, Height: 1900 mm

PT 501 G: Permissible total weight 2500 kg

PT 501 G+: Permissible total weight 2600 kg

Standard Equipment: User manual, Cardan shaft holder, Manual control storage space, Cardan shaft storage space

Optional Equipment (at extra cost):

• PTZUB-002: “Power Control” software with cable operation – 1799 EUR
• PTZUB-003: “Power Control” software with Bluetooth operation – 2499 EUR
• PTZUB-019: Device for lifting the dynamometer with a forklift – 1299 EUR
• PTZUB-014: Additional fan cooling – 499 EUR
• PTZUB-015: Shock absorbers for speeds up to 100 km/h – 349 EUR
• PTZUB-009: Operating hours counter – 329 EUR
• PTO Cardan Shaft (1⅜/6Z - 1¾/6Z): Bandioli or Waltersheiden for trailers – 1399 EUR (incl. VAT)
• Calibration, 1-day registration in Germany (DE), TÜV certification, and lighting equipment – 949 EUR
