Power Measurement Stand for Tractors and Agricultural Machinery PT 302 S

Power Measurement Stand for Tractors and Agricultural Machinery PT 302 S

Country of Origin: Germany, warranty period - 24 months

The PT 302 S dynamometer is designed for measuring the power, torque, and rotational speed of tractors and agricultural machinery. This road-mounted device ensures convenient mobile use and high braking capacity. The EGGERS PT 302 series, with 600 kW for quick tests and 340 kW for full-load curves, is suitable for almost all tractors and some harvesting machines.

The EGGERS PT 302 power measurement stand series is notable for its versatility and high braking capacity.

With three different model variants, customers can choose the power measurement stand best suited to their workshop:

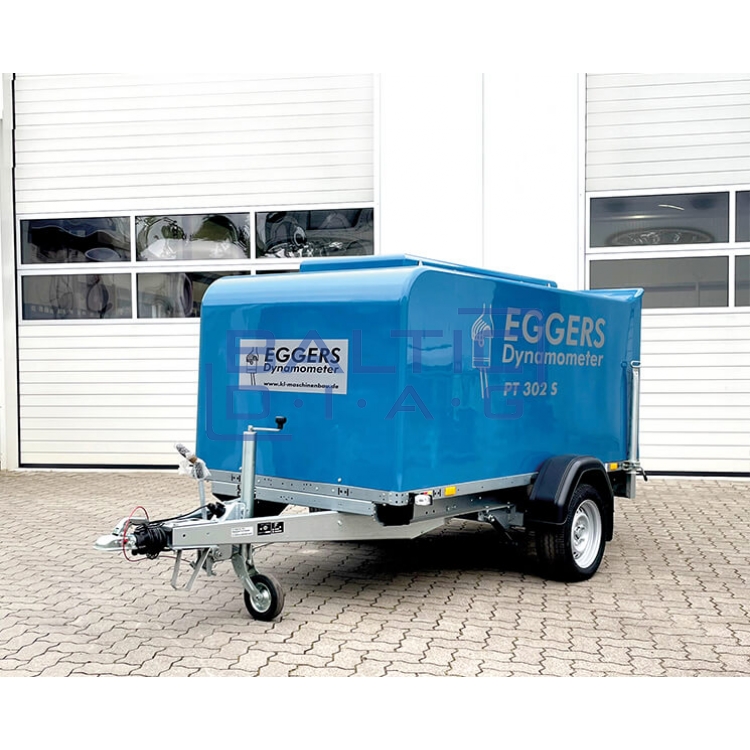

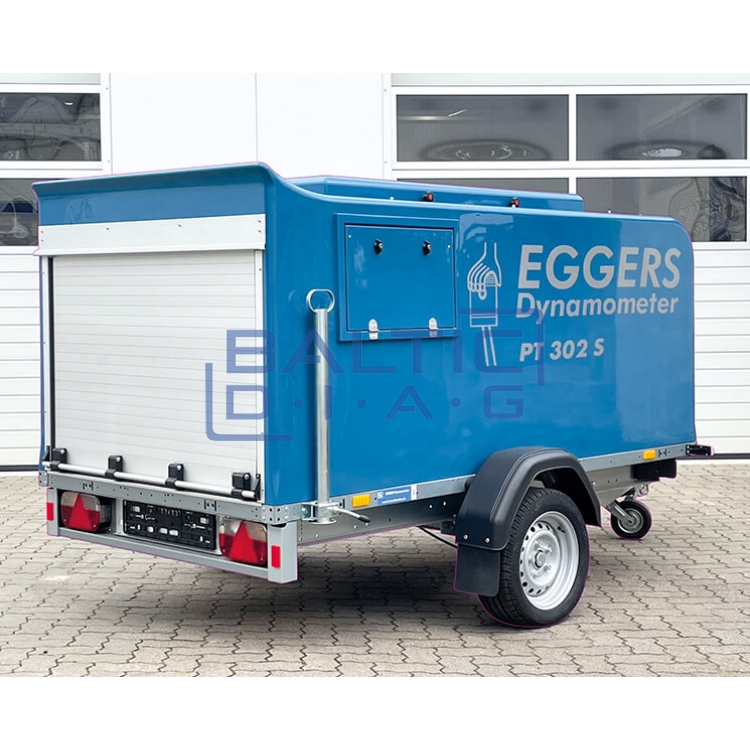

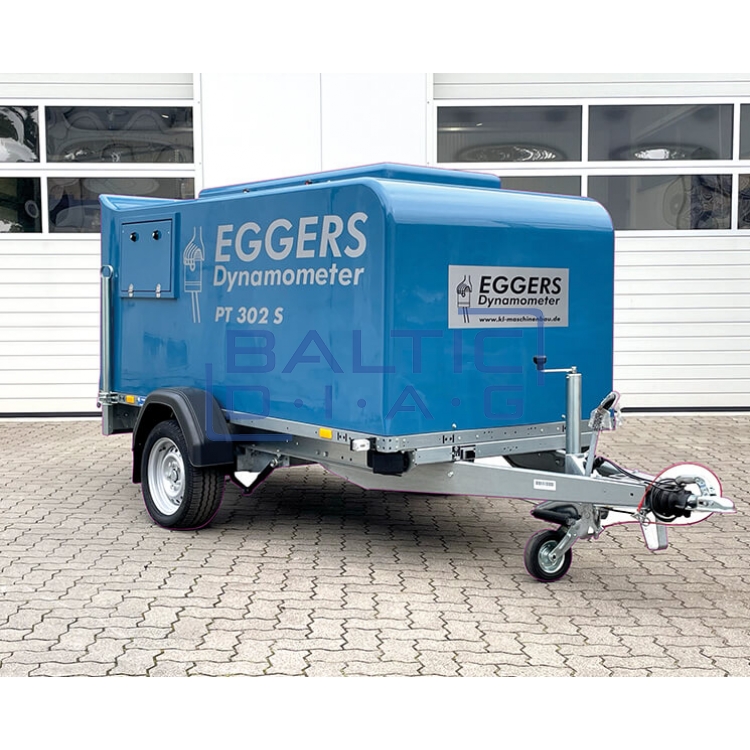

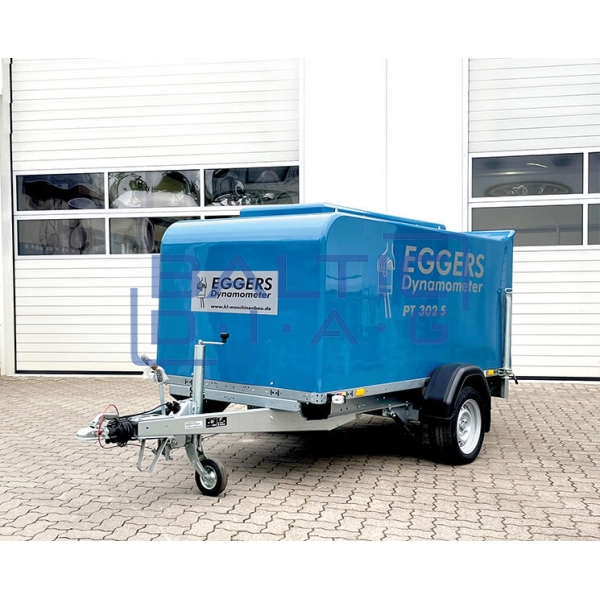

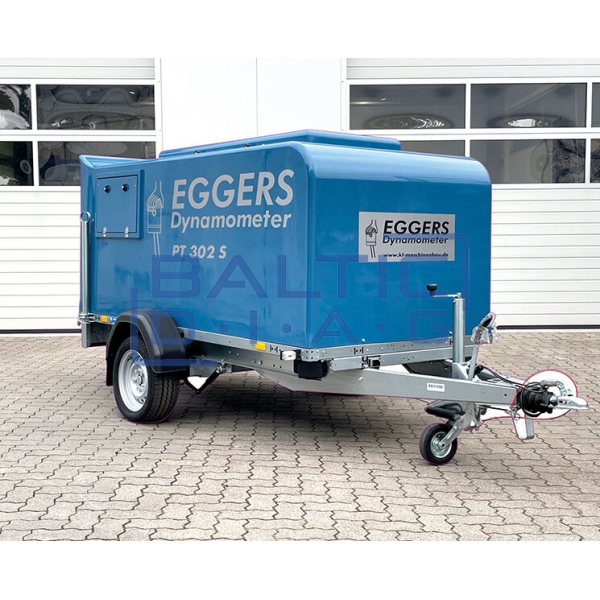

• PT 302 S: Road version, mounted on a chassis
• PT 302 M: Mobile workshop version
• PT 302 W: Stationary workshop version, floor-mounted

Functions:

• Accurate measurement of power, torque, and rotational speed (<1% error margin)
• Contactless electromagnetic brakes (maintenance-free)
• Air cooling with a powerful electric fan (airflow up to 17,000 m³/h)
• Digital display showing RPM, torque, and power (kW, HP)
• Temperature-compensated force measurement sensor
• Ability to perform measurements in both rotational directions
• Mobile use due to road chassis construction

Technical Specifications:

• Maximum Power: 600 kW (quick test), 340 kW (full-load curve)
• Maximum Torque: 7200 Nm
• Maximum Rotational Speed: 2500 rpm (optionally up to 3600 rpm)
• Precision: <1%
• Cooling: High-performance electric fans (17,000 m³/h airflow)
• Display: Digital display showing speed, torque, and power (kW, HP)
• Power Supply: 400 V / 230 V, 16 A
• Materials: Galvanized steel frame, reinforced fiberglass plastic (GRP) housing

Dimensions and Weight:

• PT 302 S: Length: 3650 mm, Width: 1800 mm, Height: 1670 mm, Weight: 1500 kg
• PT 302 M: Length: 1830 mm, Width: 1060 mm, Height: 1500 mm, Weight: 1150 kg
• PT 302 W: Length: 1810 mm, Width: 730 mm, Height: 1540 mm, Weight: 1098 kg

Standard Equipment:

• User manual, connection plug, PTO shaft holder, control panel compartment, shock absorbers (PT 302 S only).

Additional Equipment (at extra cost):

• PTZUB-002: Power Control software with cable control – 1799 EUR
• PTZUB-003: Power Control software with Bluetooth control – 2499 EUR
• PTZUB-019: Device for lifting the dynamometer with a forklift – 1299 EUR
• PTZUB-014: Additional fan cooling – 499 EUR
• PTZUB-015: Shock absorbers for speeds up to 100 km/h – 349 EUR
• PTZUB-009: Operating hours counter – 329 EUR
• PTO Drive Shaft (1⅜/6Z - 1¾/6Z Bandioli or Walterscheid for trailers) – 1399 EUR incl. VAT
• Calibration: 1-day registration in Germany (DE), TÜV, and lighting equipment – 949 EUR
