Portable laser rust removal device JNCT P-50W

Portable laser rust removal device JNCT P-50W

Manufacturer: JNCTLaser, China

Features:

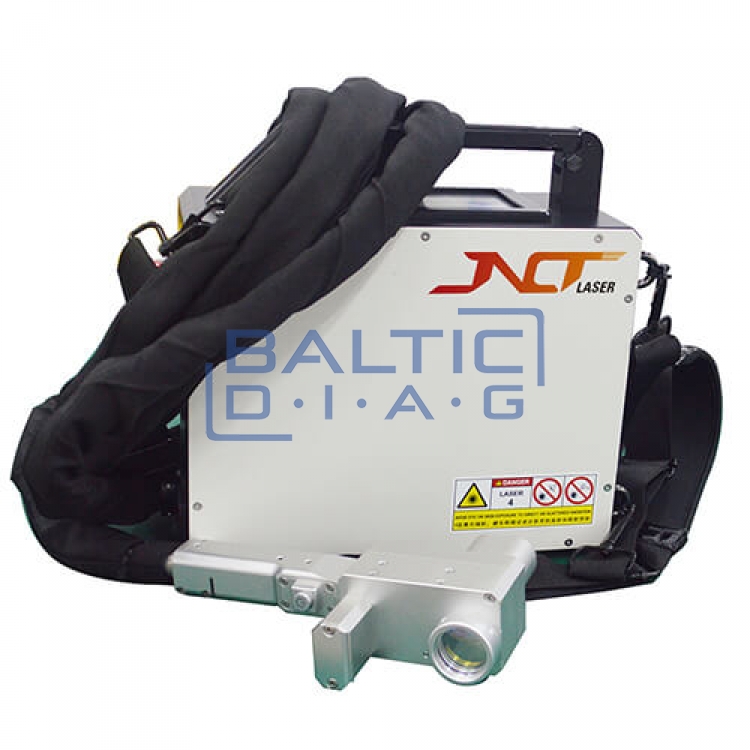

• The laser rust remover has attached straps that allow you to wear the device on your back like a backpack, leaving your hands free for work.
• External device battery, high mobility.

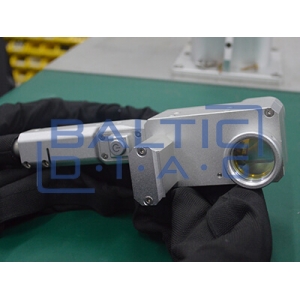

• Extremely small laser cleaning head that can be operated with one hand. It is reliable, flexible and durable.
• Especially good technical parameters of the device. JNCT P-50W ensures very high cleaning efficiency.
• Device management is very simple and reliable.
• High cleaning precision, nano-level control that does not damage the material being cleaned.
• The equipment is not harmful to the environment, and its use does not cause any harmful pollutants.

Technical parameters:

• Maximum power: 50 W
• Power range: 10 - 100%
• Output center wavelength: 1064 nm
• Bandwidth: 5 nm
• Maximum pulse energy: 1.1 mJ
• Pulse repetition frequency: 45 - 170 kHz
• Pulse width: 100 +- 10 ns @45 kHz
• Beam quality: 1.6 M2
• Hose length: 3000 mm
• Minimum bending radius: 150 mm
• Device power supply voltage: 230V
• Power consumption: 350 W
• Operating temperature: +10 – +40 °C
• Storage temperature: -10 – +60 °C
• Tolerable ambient humidity: < 80%
• Device dimensions: 318 x 285 x 127 mm (L x W x H)
• Total weight: 7.8 kg
• Laser head weight: < 1.5 kg
• Laser head type: 2D scanning
• Laser head cleaning distance: 100 x 100 mm
• Laser head focal length: 160 x 254 mm
• Laser head control modes: Automatic / manual
• Laser head protection classification: Class 4
