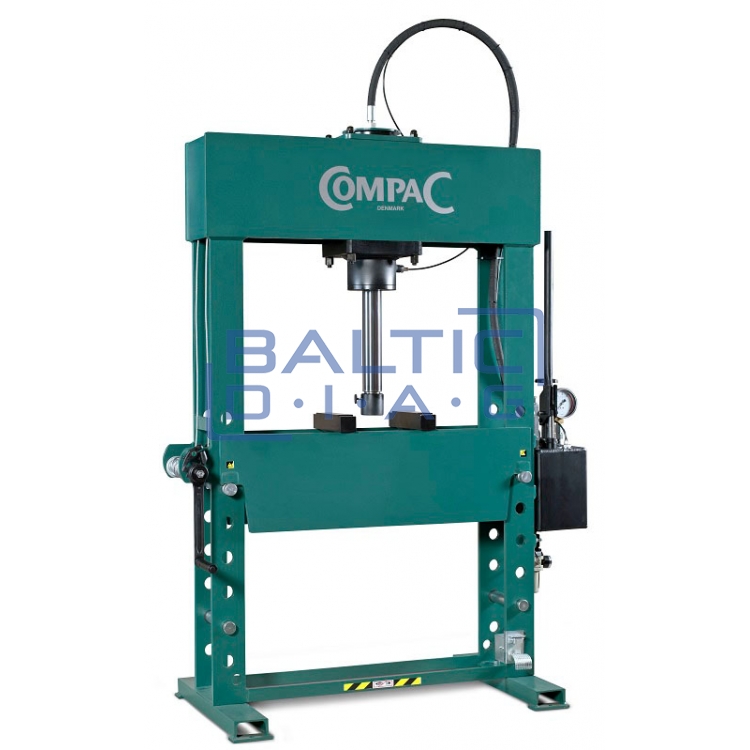

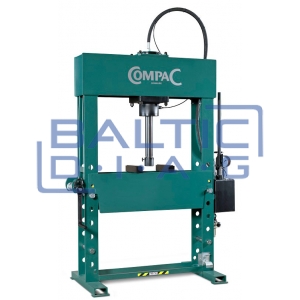

Hydraulic press with pressure gauge 60 tons, HP60

Hydraulic press with pressure gauge 60 tons, HP60

The HP60 hydraulic press is a great tool for heavy-duty and precise pressing jobs. With a pressing force of 60 tons and a built-in pressure gauge, this press provides reliable force control, allowing you to perform various jobs efficiently and accurately. Manual control gives the operator complete control and flexibility during work. The HP60 hydraulic press is a powerful and precise solution that will meet all your professional workshop needs!

Features:

• Hydraulic press operated with manual pressing system
• Extra long cylinder stroke

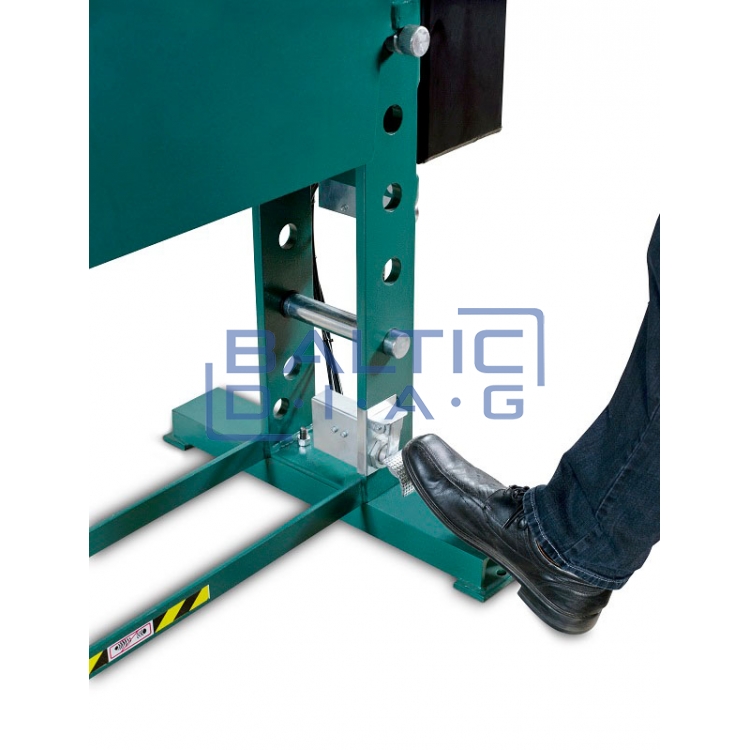

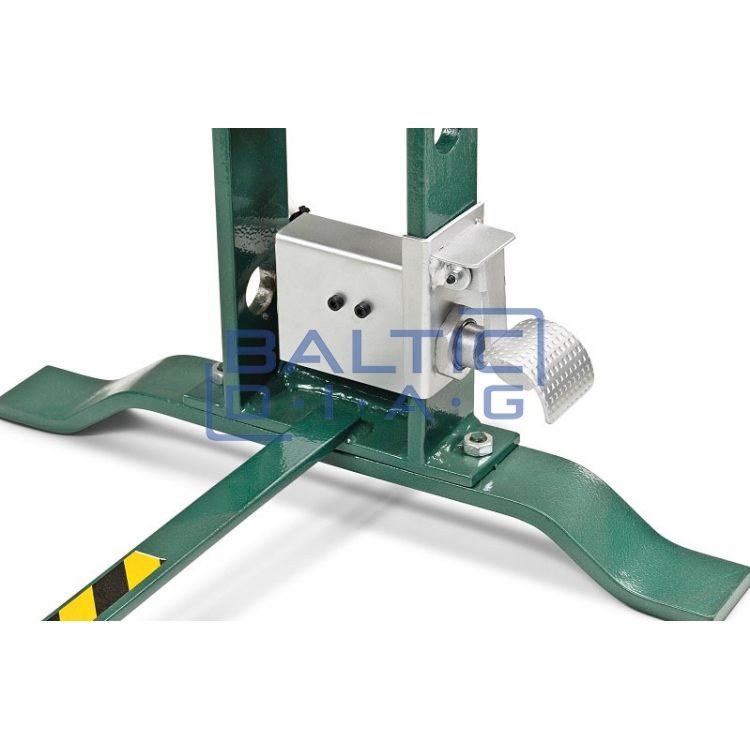

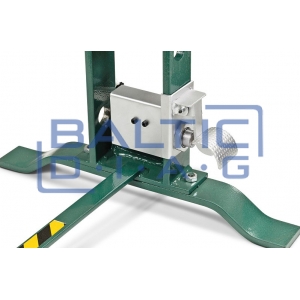

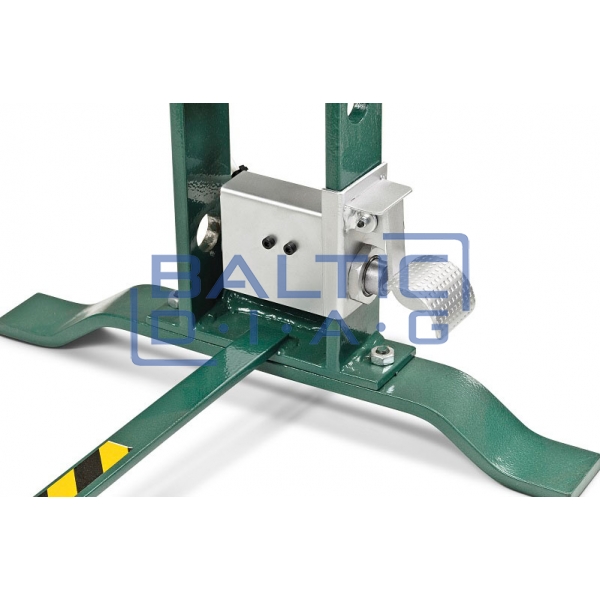

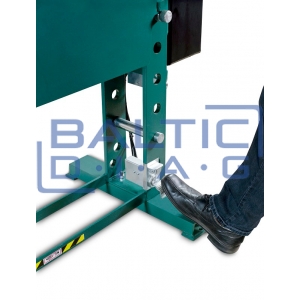

• Foot pedal controlled lowering of the pressing cylinder to the workpiece

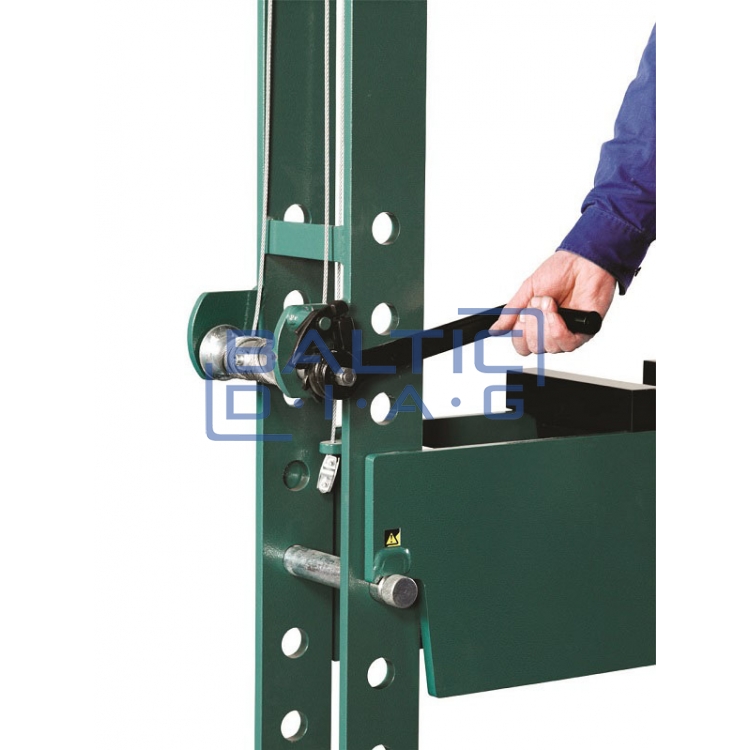

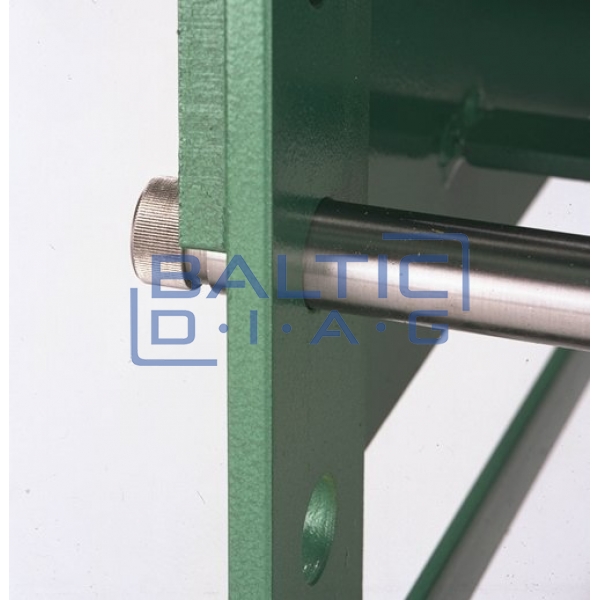

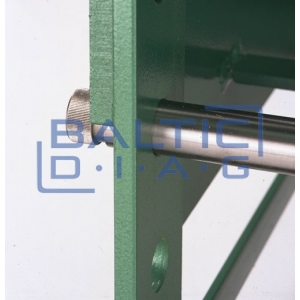

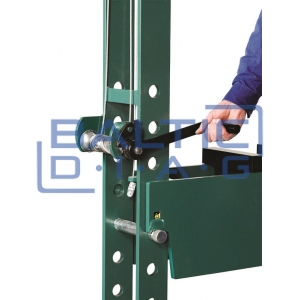

• Quick and safe adjustment of the worktable height using the included winch with brake

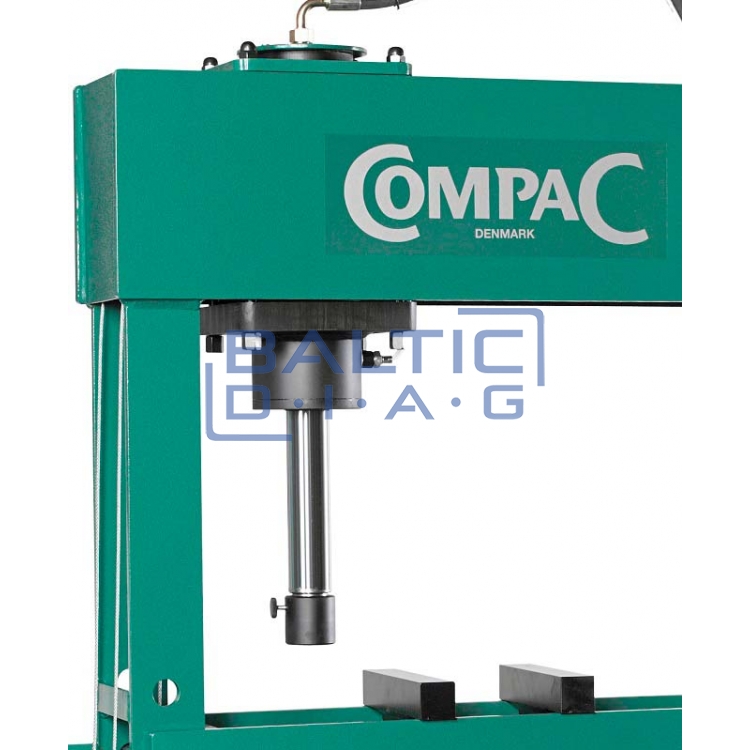

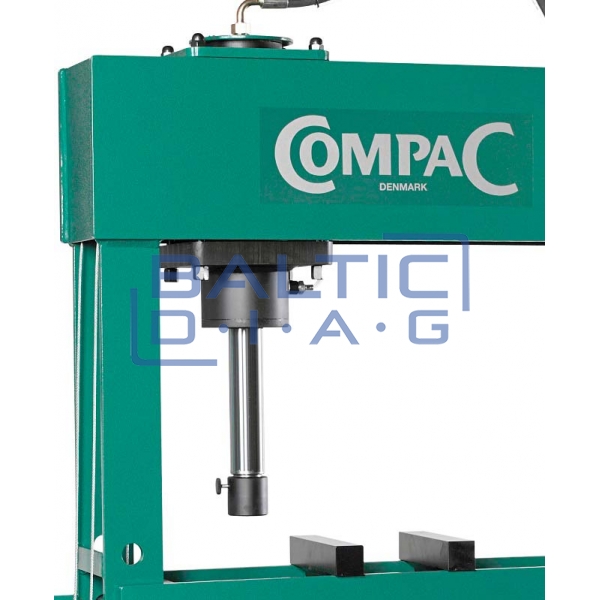

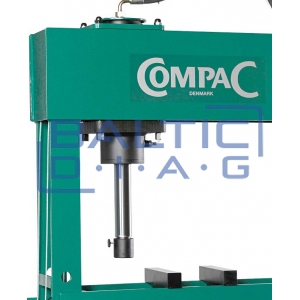

• Side-moving pressing cylinder
• Sturdy, chrome cylinder
• The cylinder return system uses compressed air
• The air inlet connection has a water collection filter

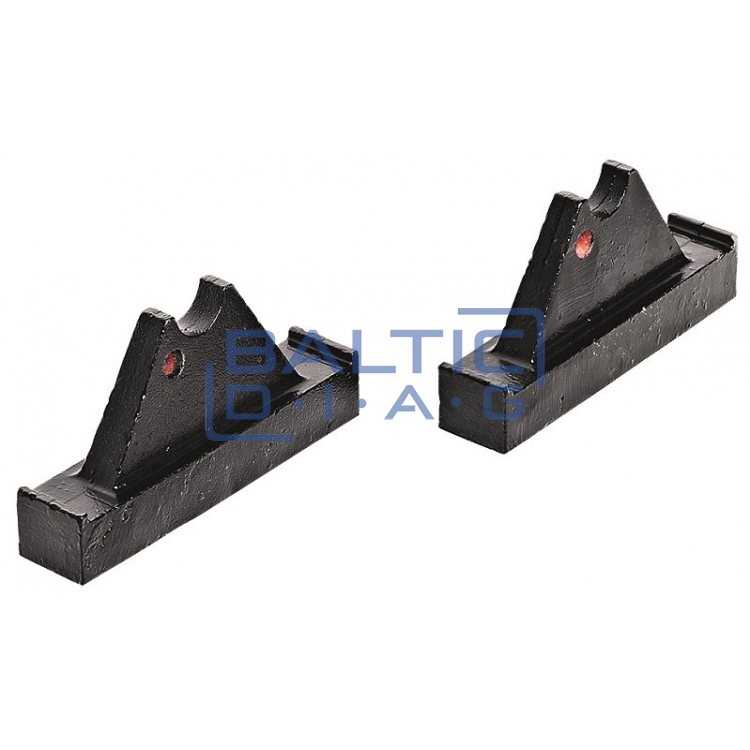

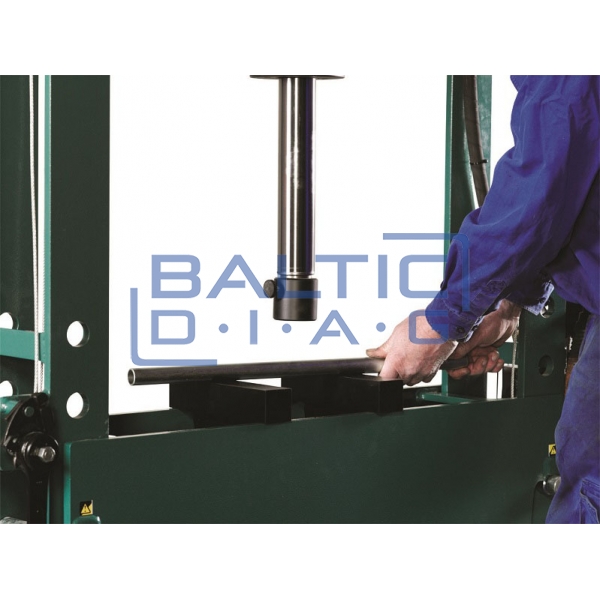

• Two working V-shaped worktables

Technical parameters:

• Pressing power: 60 tons
• Speed ​​per stroke with load: 5.0 mm
• Speed ​​per stroke without load: 0.8 mm

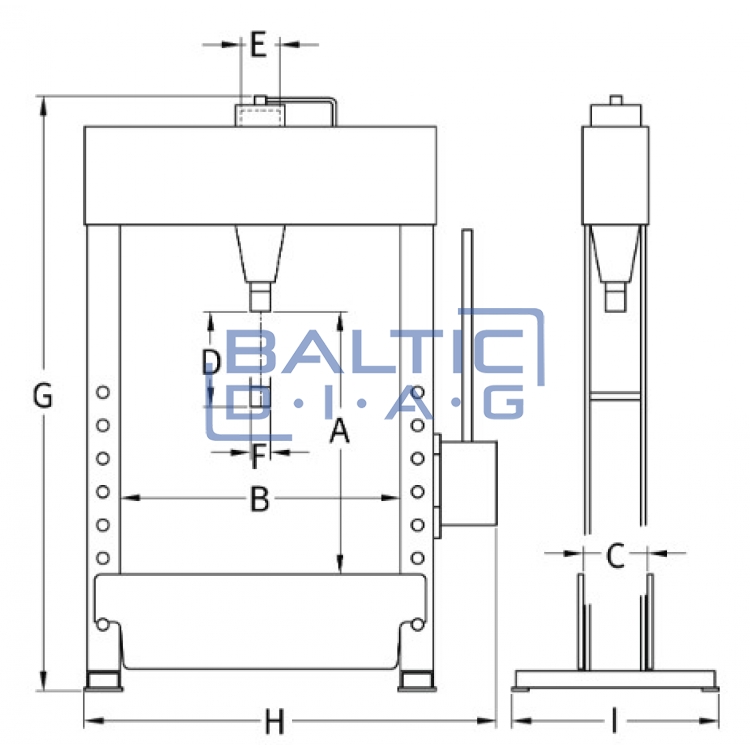

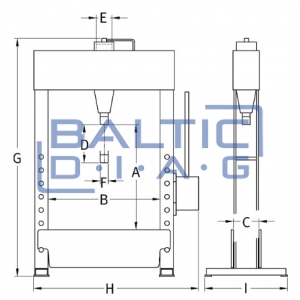

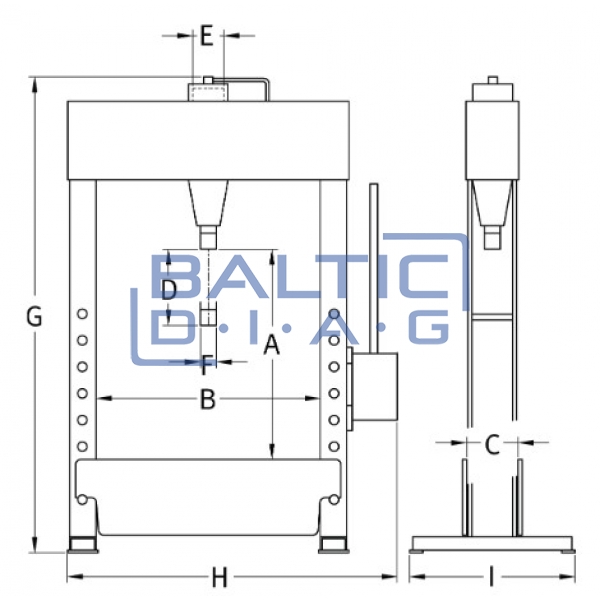

• Working height (A): 760 mm
• Width between columns (B): 1005 mm
• Column thickness (C): 255 mm
• Cylinder stroke (D): 300 mm
• Cylinder diameter at the top (E): 160 mm
• Working cylinder diameter (F): 80 mm
• Height (G): 2100 mm
• Width (H): 1615 mm
• Depth (I): 710 mm
• Weight: 690 kg
• Package dimensions: 710 x 1670 x 2370 mm
