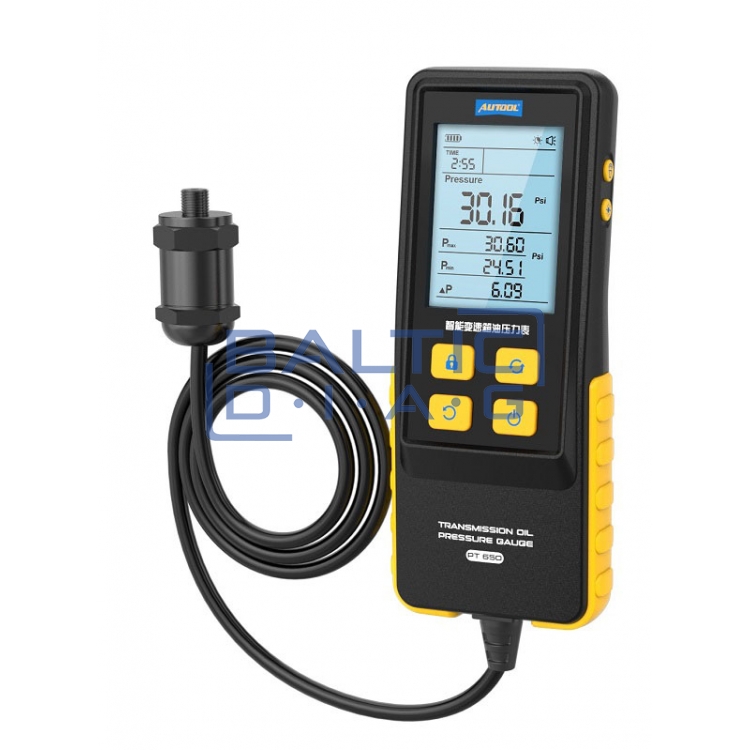

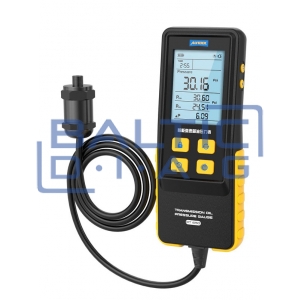

Gearbox oil pressure measuring device Autool PT650

Gearbox oil pressure measuring device Autool PT650

This Autool PT650 Gearbox Oil Pressure Gauge is manufactured using high-quality components and its connectors are made of corrosion-resistant materials to ensure a long service life. The device is characterized by high accuracy and is equipped with various connectors. With the Autool PT650 you will be able to measure the pressures generated in the gearboxes of various vehicles and decide on your further inspection or repair steps accordingly.

Use of Autool PT650:

1. Unscrew the main oil filler screw in the automatic transmission.
2. Connect the adapter suitable for the vehicle being tested to the measuring device.
3. Set the measuring device to zero before starting measurements.
4. Connect the measuring device with a suitable adapter to the vehicle gearbox.
5. Start the car and shift gears.
6. The Autool PT650 gearbox oil pressure gauge will show you the recorded values.

Features:

• Digital measurement system: Very wide measurement range, high accuracy, and the data is transmitted with two decimal places.
• Durable brass material used: The device adapters are made of durable and corrosion-resistant materials. And the long measuring hose is made of reinforced rubber that resists pressure, temperature and twisting.

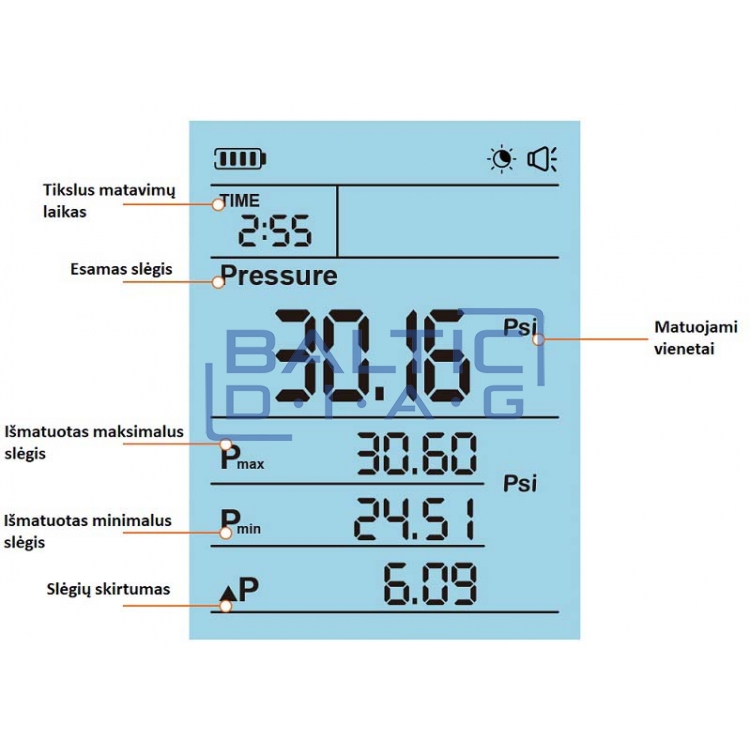

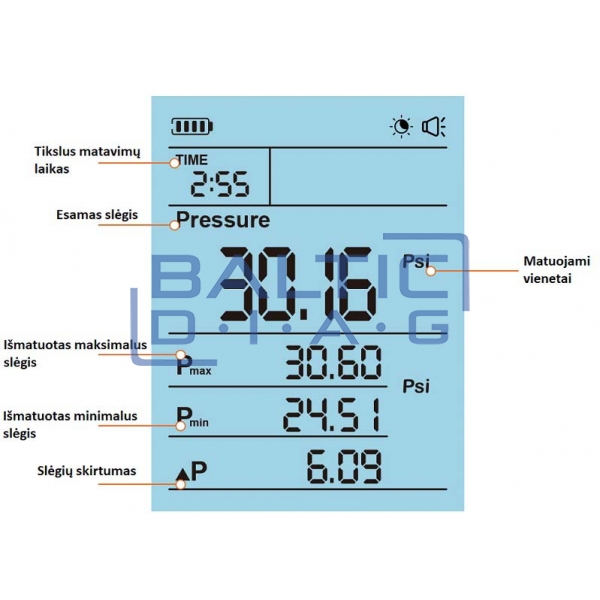

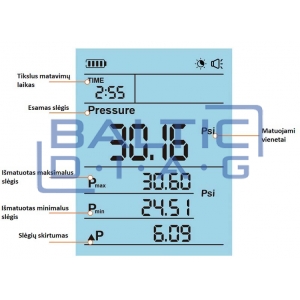

• 2.8” HD Digital Display: It has a built-in screen lighting function, which is especially useful in dark rooms. The result of each test is divided into different lines on the screen, which makes their assessment much simpler and clearer.
• Data saving: The device has a data saving function and a screen capture function. Ability to save up to 6 different measurement results.
• Smart Digital Pressure Gauge: Delivers accurate and clear measurement results. Ability to measure - real fuel pressure, average fuel system pressure, fuel and measurement time interval.
• Simple and fast data measurement: Possibility to measure in three different values, bar, psi and kg/cm3. These values are changed at the touch of a button. Measuring ranges: 0 – 29.4 bar; 0 - 426.6 psi; 0 - 30 kg/cm3.
• Long device warranty

Technical parameters:

• Operation method: digital measurement
• Operating voltage: 6V
• Pressure ranges: 0 - 30 bar
• Accuracy of parameters: ± 0.01

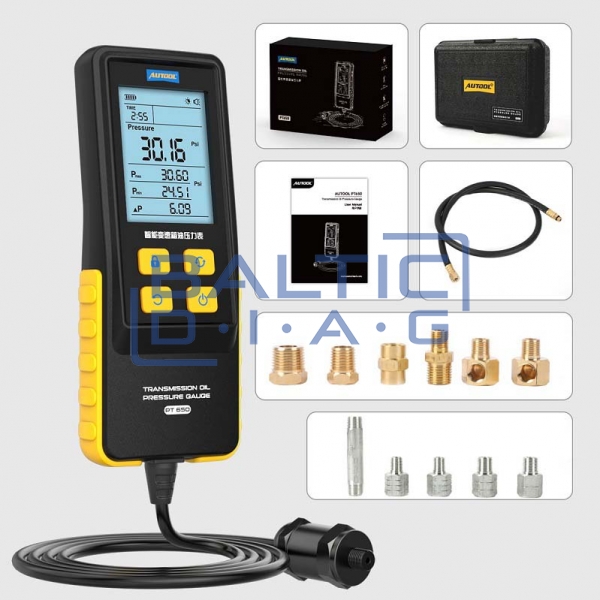

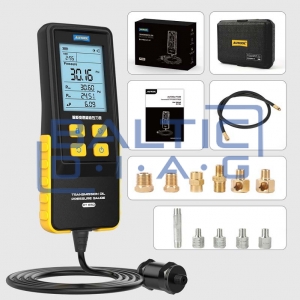

Complete set:

• Autool PT650 fuel pressure gauge
• 11 pcs. different adapters and connectors
• Measuring hose
• Equipment case
• User manual
