Electrohydraulic, mobile scissor lift for electric cars BT1200

Electrohydraulic, mobile scissor lift for electric cars BT1200

AC hydraulic has developed a lift that is very useful when working with electric vehicles. For workshops that work with fragile, bulky, heavy battery packs or internal combustion engines, gearboxes or chassis components, this lifter becomes an indispensable helper. A careful ergonomic design with many smart functions makes everyday life in the workshop easier and makes lifting work faster and safer.

Features:

• The device is designed for safe and easy work with electric car battery batteries that are integrated in car bodies.
• Special safety - from the basic, first design to the last production steps, the device was manufactured with the safety of customers and employees in mind.
• Automatic stop - crush protection
• All the castors of the lift are equipped with guards to prevent your feet from being crushed
• Safe and intuitive use
• Optimal stability - no matter when lifting or when it is used as a workbench
• Accuracy and precision are essential qualities when handling such fragile and heavy items as electric car batteries
• Adjustable lifting speed - ensures accuracy and proper positioning of parts when lifting batteries, motors, etc.
• Perfect access to the lift from all sides

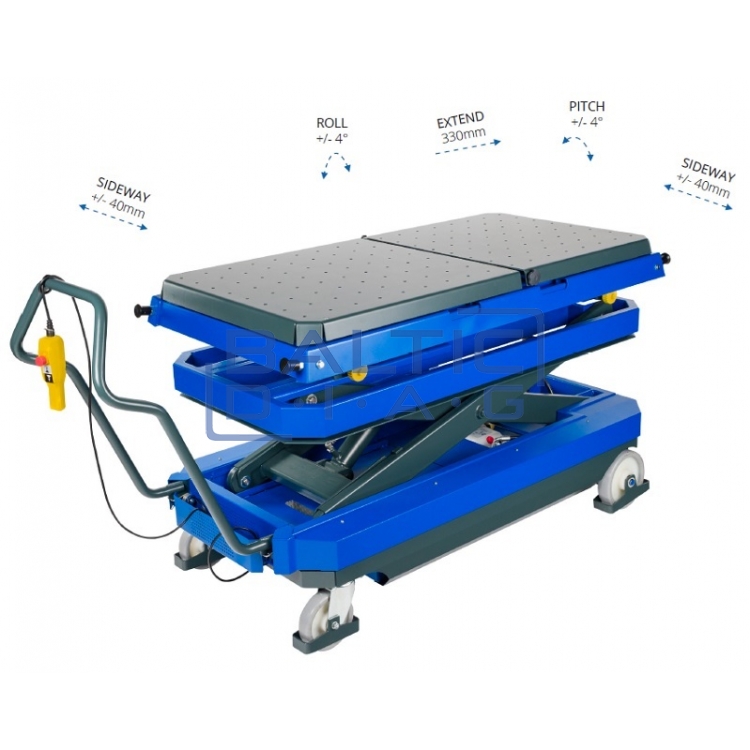

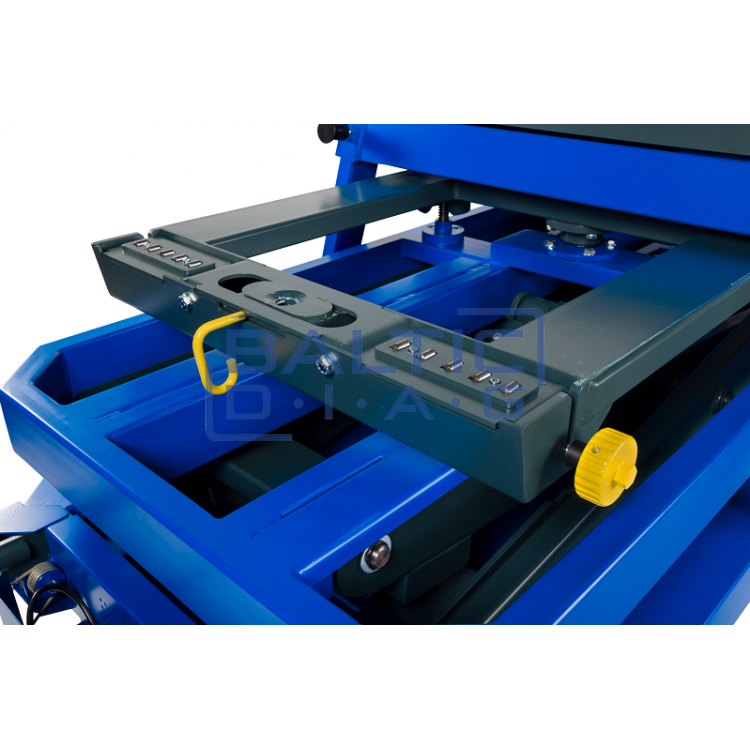

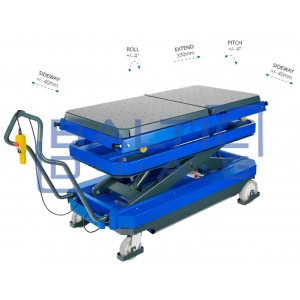

• The modular workbench can be tilted in all directions and pushed to the required side. This significantly simplifies the installation of battery cells for all electric vehicles
• Perforated Plate - Allows you to add a variety of adapters to meet manufacturers requirements for lifting points.
• Remote control

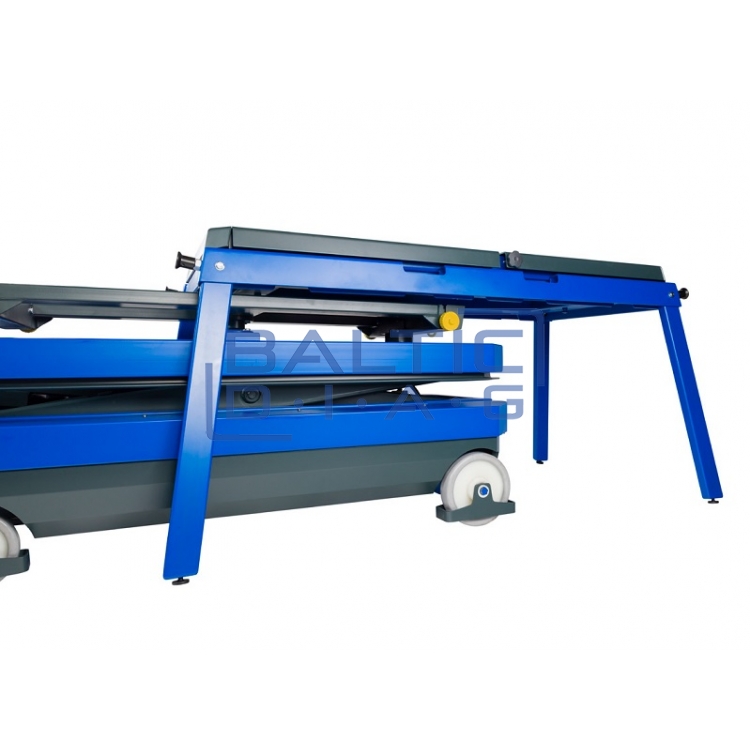

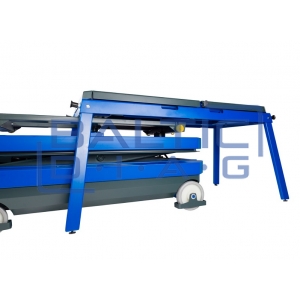

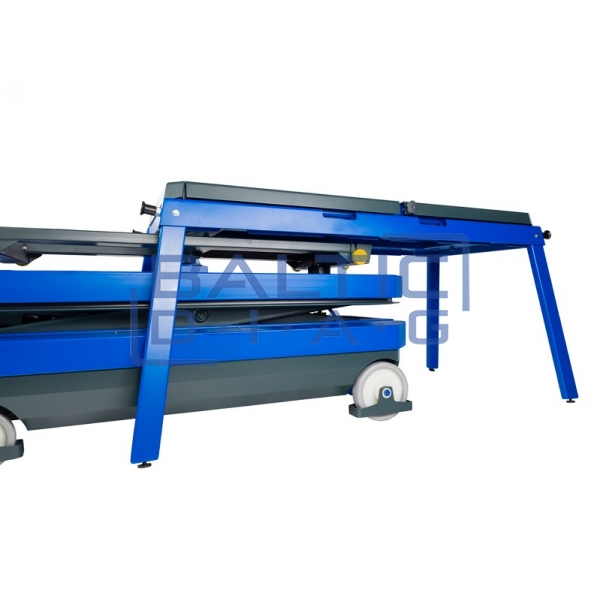

• Removable workbench - together with height-adjustable legs, the modular workbench can be used as a workbench. And the lifter can perform other lifting tasks

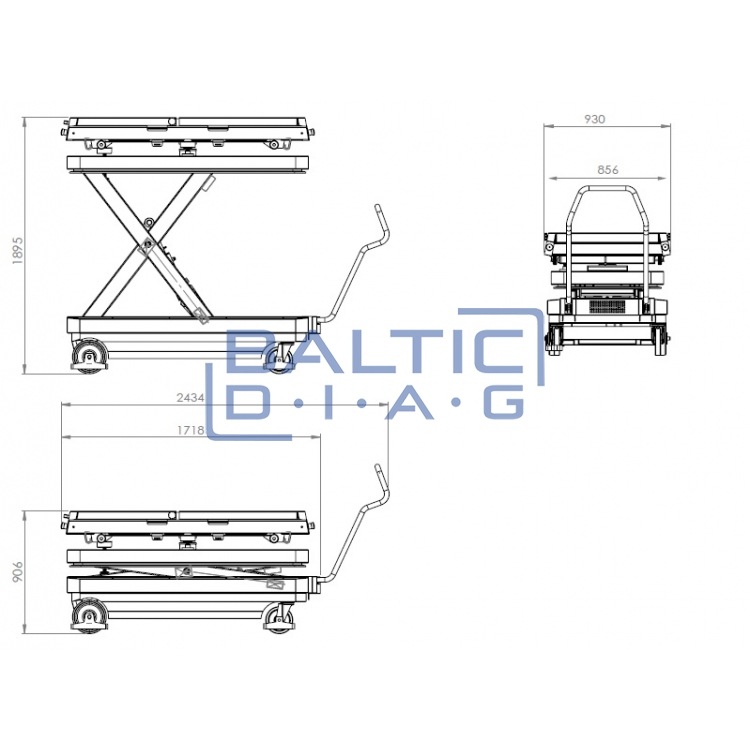

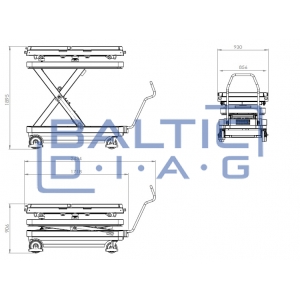

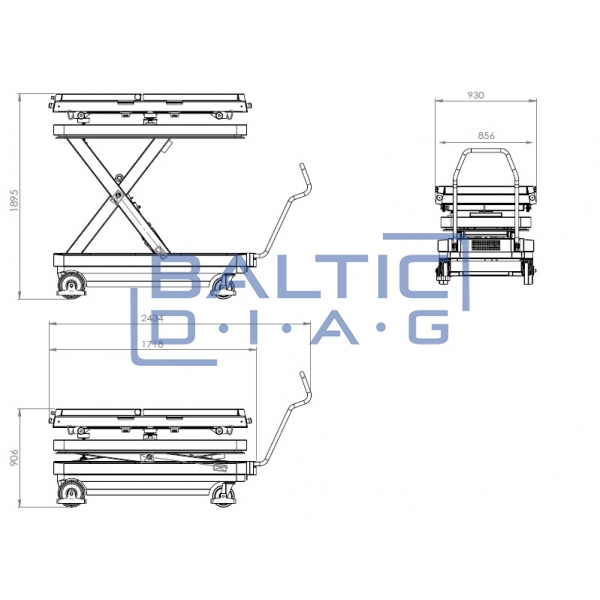

Technical parameters:

• Load capacity: 1200 kg
• Minimum height: 906 mm
• Maximum height: 1895 mm
• Width: 930 mm
• Width of the modular panel: 856 mm
• Length: 2434 mm
• Length of modular panel: 1718 mm
• Cylinder diameter: 80 mm
• Diameter of rotating wheels: Ø200 mm
• Diameter of fixed wheels: Ø250 mm
• Total weight: 690 kg
