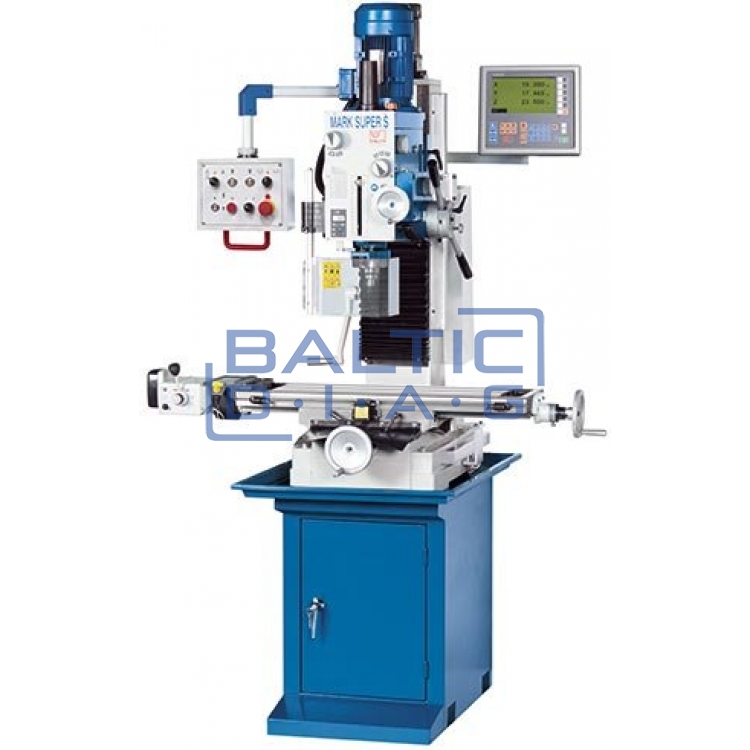

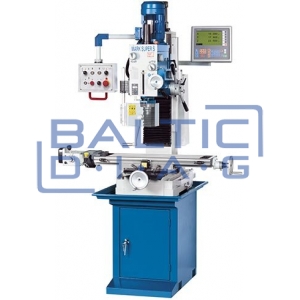

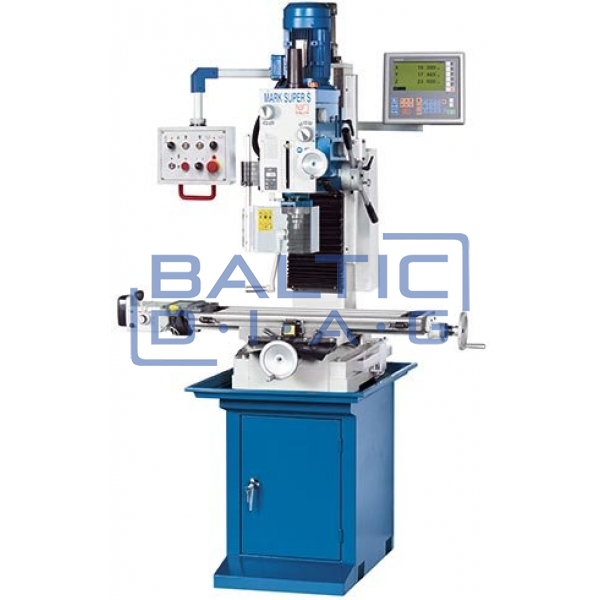

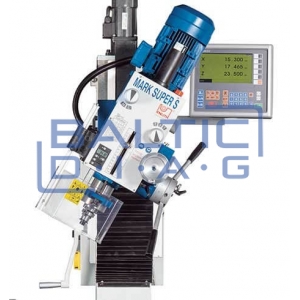

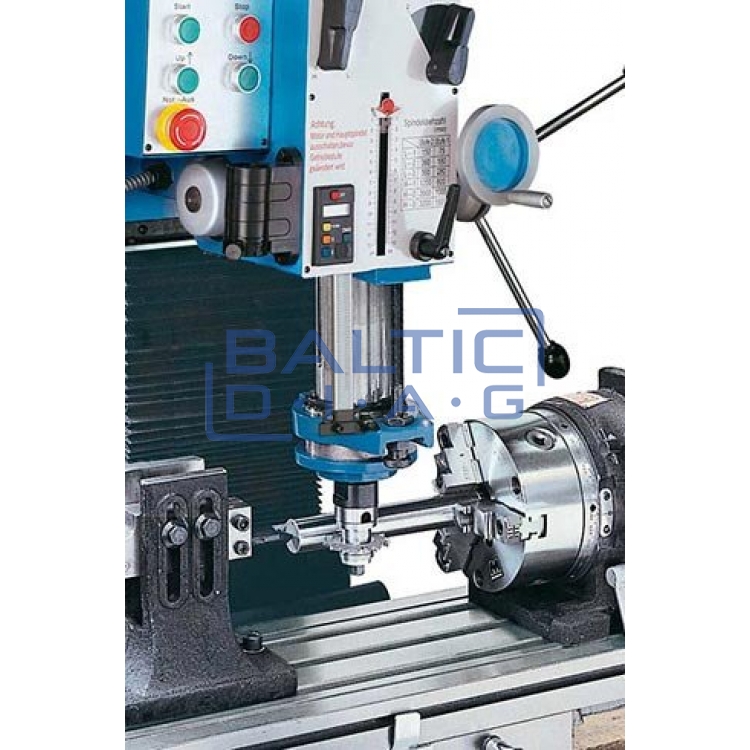

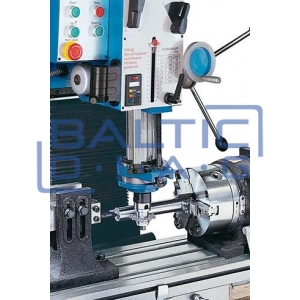

Drilling and milling machines, Knuth Mark Super S

Drilling and milling machines, Knuth Mark Super S

• Extended work table length with automatic product feeding in the X axis.

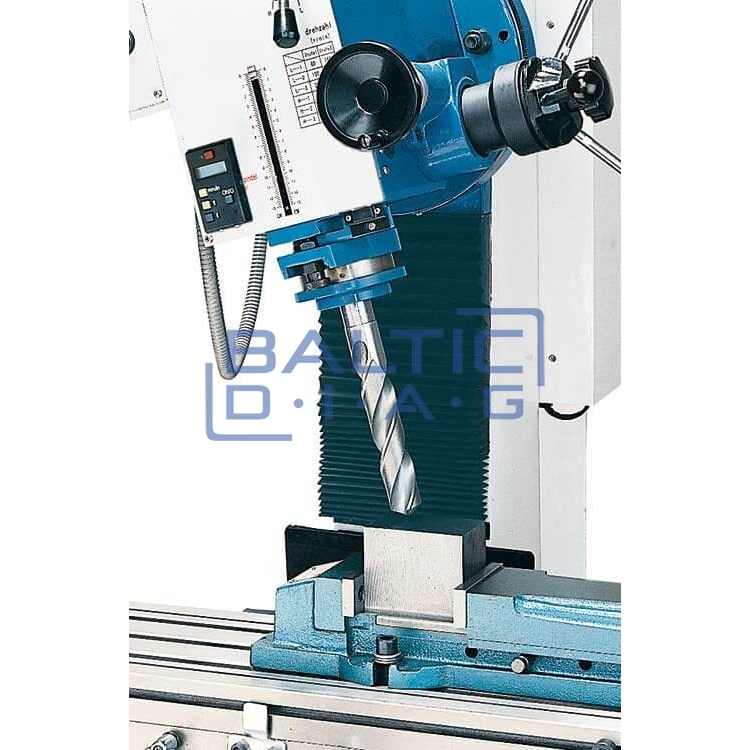

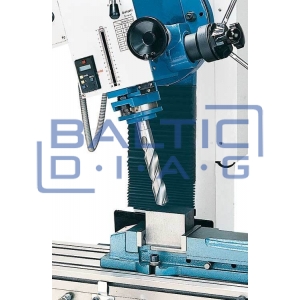

• Automatic drill feed with depth display.

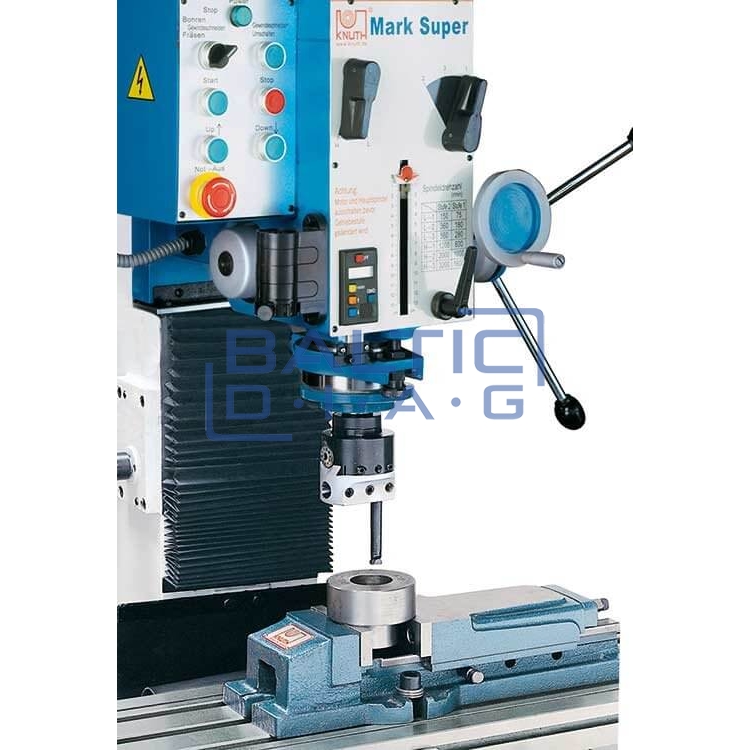

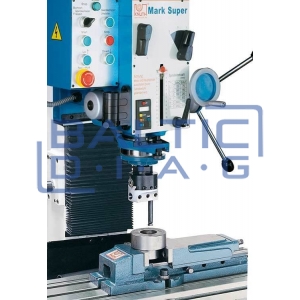

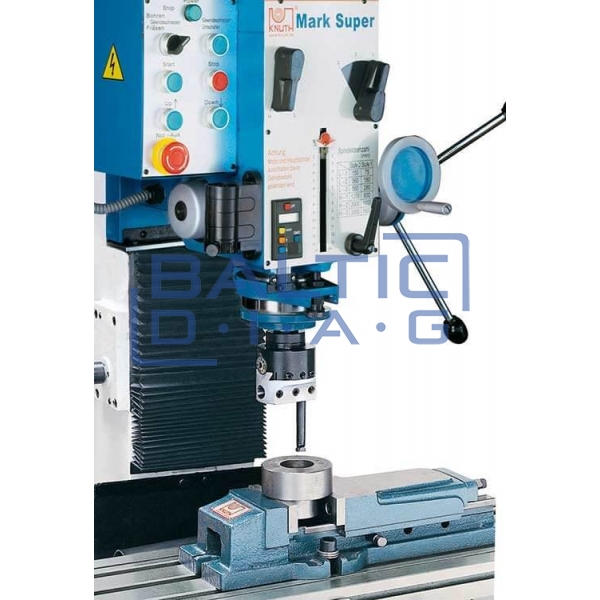

• The gearbox milling head is designed for powerful, robust machining of parts.

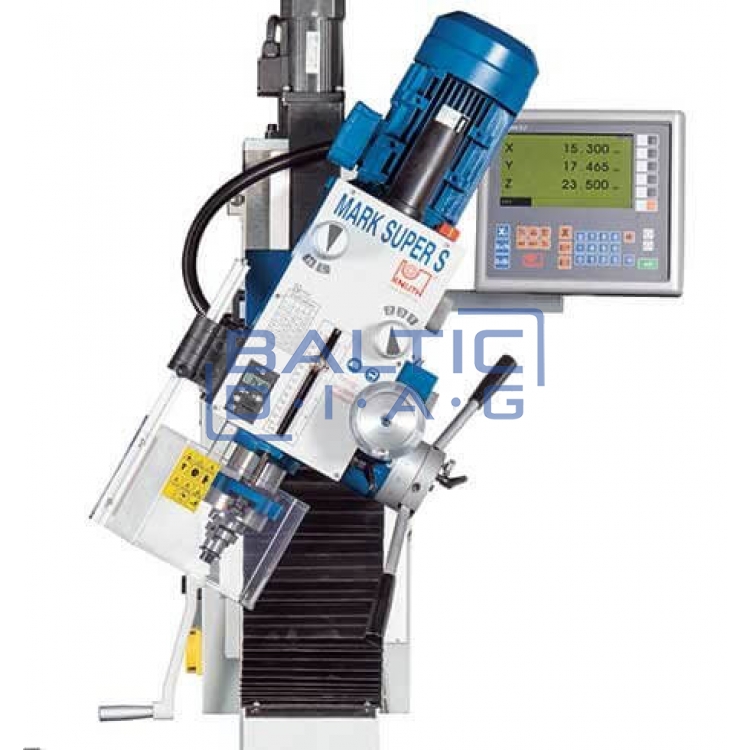

• Swiveling head for wide range and applications.
• Infinitely variable spindle speed with digital display (SV model only)

More detailed description:

• More power and adjustable spindle speed for a wider range of applications.
• Motorized movement of the cutting head and manual adjustment to keep the drill head in the most suitable position.
• Hand roller, quills for micrometer precision feed.
• Digital depth indicator, display of pen progress.
• Threading block, with adjustable direction of rotation, for cutting threads.
• Hardened drive gears and shaft for quiet operation and durability.
• A sturdy stand with special spaces for storing tools.
• A track is installed that allows products to automatically move along the x-axis.

Three-axis position indicator:

• Much higher accuracy.
• Less chance of errors.
• Increased productivity.
• Responding to saving work time.
• Easy to understand settings screen.
• Operator specific functions.
• Convenient layout of controls.
• Resolution: 0.01 / 0.005 mm.
• Default coordinates.
• Retaining axis position even when the control screen is turned off
• Calculation of the circular modulus of the hole.
• Calculator function.
• 10 tool storage spaces.
• Choice between radius/diameter dimensions.
• Choice between mm / inch.
• Easy expansion of possibilities and a device that does not require additional service.
• Two gears and premium quality frequency control technology ensures high torque throughout the entire speed range for powerful milling.
• The selected spindle speed is directly transmitted on the control panel.

Technical data:

• Workbench dimensions: 800 x 240 mm
• Drilling power, steel: 32 mm
• Hole milling: 32 mm
• Lifting of the drilling head: 350 mm
• Number of T-rails on the workbench: 3 places
• T-rails, width and cavity: 14 x 80 mm

• Travel, X-axis / automatic: 560 / 480 mm
• Travel, Y axis: 190 mm

• Shaft mounting: MT 4
• Feather stroke: 120 mm
• Feather diameter: 75 mm
• Distance from the end of the shaft to the work table: 460 mm
• Maximum width of the clamp: 258 mm
• Head rotation range: +-45°
• Rotation speed: (12) 75 - 3200 1/min

• Power of the main electric motor: 1.1 kW

• Overall dimensions: 1250 x 950 x 2130 mm (L x W x H)
• Weight: 380 kg

Standard equipment:

• Operator's manual
• Tool holder bits
• Drill chuck: 13 mm
• Base
• Table feed TV 1000
• Automatic quill feed
• 3-axis position indicator X.Pos 3.2
