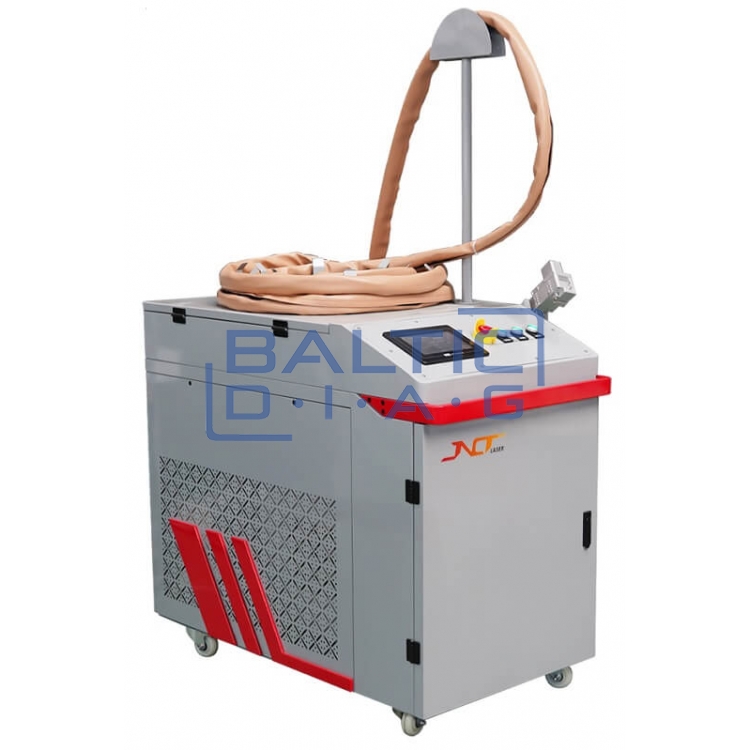

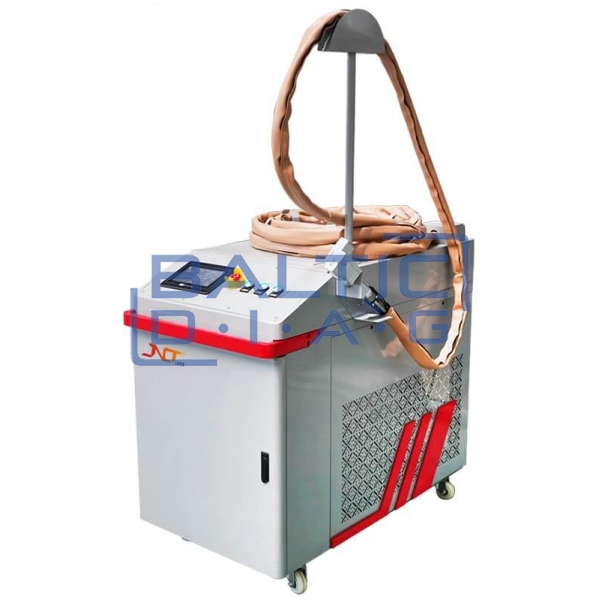

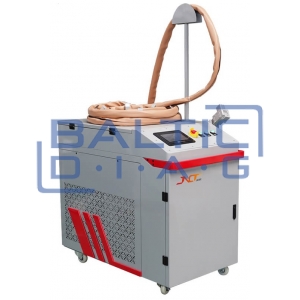

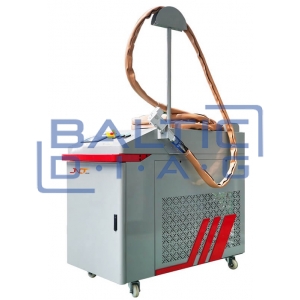

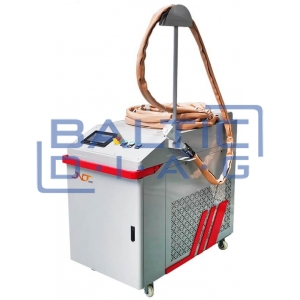

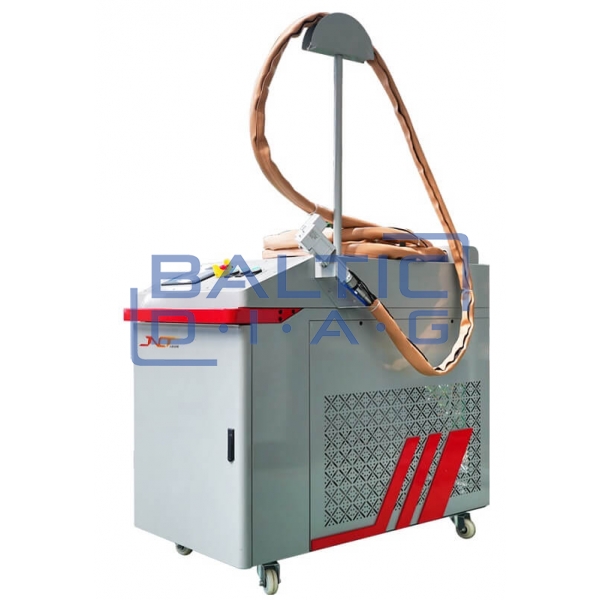

Continuous beam laser cleaning device TPC-1000W

Continuous beam laser cleaning device TPC-1000W

Manufacturer: JNCTLaser, China

Laser cleaning devices are a product of the new generation and modern technologies, which are intended for cleaning various surfaces. It is extremely easy to operate, easy to integrate for automatic operation, and does not require any chemical reagents to clean parts. When cleaning, it is easy to adapt to different shapes of parts, which provides an impeccable final result of the cleaned parts and a particularly good accuracy. The laser cleaning device has a high efficiency and is not harmful to the environment, it is safe to use and it does not cause any damage to the parts being cleaned. In these ways, a modern laser cleaning device solves problems that standard and traditional cleaning methods could not do.

Features of the device:

• During cleaning, physical scrubbing and scraping of the parts is not necessary, no additional pollutants are added when using non-contact cleaning.
• High precision and control of laser cleaning.
• Cleaning does not require any consumables, the environment is strongly protected.
• Easy operation allows you to control the process by hand or install the cleaning head in a special automated cleaning device.
• Possibility to use the device for automatic cleaning.
• The efficiency of the cleaning device is particularly high, which significantly speeds up the working time.
• Continuous beam laser cleaning device - made to ensure long-term use.

Technical parameters:

• Model: TPC-1000W
• Power of the laser cleaning device: 1000 W
• Laser wavelength: 1064 ~ 1080 nm
• Pulse frequency: 5000 ~ 10000 Hz
• Device cooling: water
• Dimensions: 1200 x 760 x 1100 mm
• Maximum weight: 210 kg
• Cleaning laser beam width: 50mm (600mm optional accessories)

Applicability of laser cleaning:

• For cleaning metal surfaces from rust
• For removing varnish from various surfaces
• For removing oil residues and dirt from various surfaces
• For removing surface coatings
• Surface preparation for welding or painting
• Removal of dust and other foreign particles from the surface of the stone
• Removal of rubber residues from various surfaces

Components that make up the device:

• Laser cleaning head
• Laser generation mechanism
• Control screen
• Water cooling mechanism
